Raise3D is a global FDM 3D printer brand dedicated to developing and manufacturing high-performance, versatile and easy-to-use 3D printers.

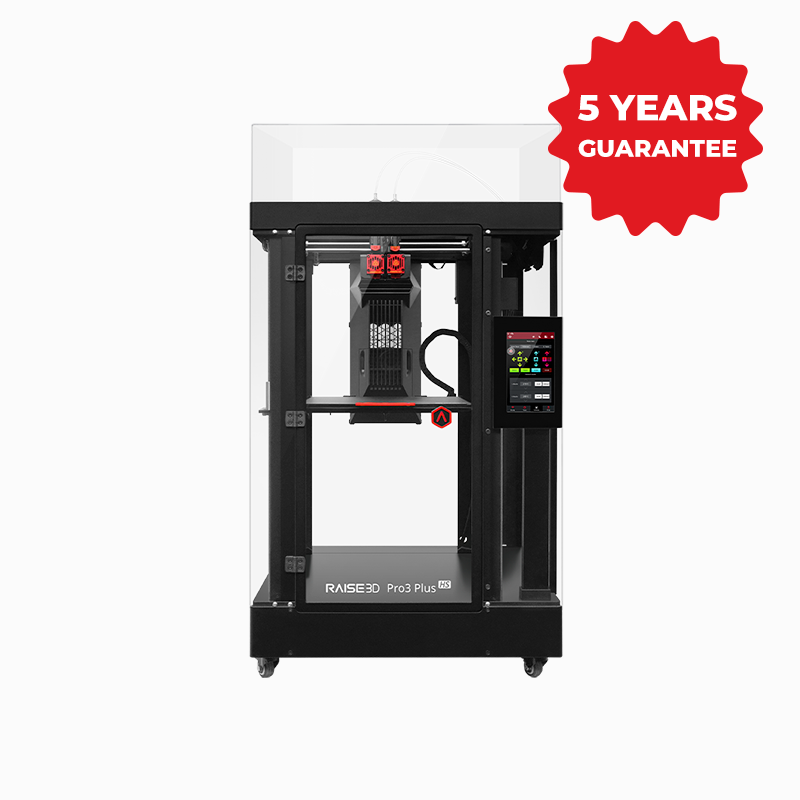

Among its most renowned FDM 3D printers are the Raise3D Pro2 and Raise3D Pro2 Plus. The Raise3D Pro3 Plus 3D printer is part of the Pro3 series and is the updated version of the Raise3D Pro2, which has undergone several modifications and improvements. Both models in the Raise3D Pro3 series feature a robust, all-metal construction that allows for smooth and precise movement during the 3D printing process.
The two models differ from each other only in their print volume, but share all other features. Raise3D Pro3 has a print volume of 300 x 300 x 300 mm, while the print volume of Raise3D Pro3 Plus is 300x 300 x 605 mm.
This difference in print volume means that Raise3D Pro3 Plus allows the user to manufacture large parts, whether they are prototypes or end-use parts.
Raise3D Pro3 Plus features an advanced double extrusion system with retractable heads. This system solves the problem that often occurs with solid dual extrusion systems, where filament residue is often deposited or even marks the part with the head that is not in use.
The Raise3D Pro3 Plus retractable head system raises the inactive head 1.5 mm in less than 1 second, ensuring an optimal finish on 3D printed parts.
Thanks to its dual extrusion system and retractable printheads, Raise3D Pro3 Plus makes it possible to print models in two colours or materials, or to 3D print parts with complex geometries using one build material and one support filament or soluble support.
In addition, the hotends of this printer reach a maximum printing temperature of 300°C and feature a simple replacement system, allowing the user to exchange hotends without the use of tools. This can also be very useful when troubleshooting issues such as filament jams.
Raise3D Pro3 Plus has the ideal features to enable the user to get the most out of a wide variety of FDM 3D printing materials, including technical materials, very useful for professional use.
Raise3D Pro 3 supports conventional materials such as PLA and ABS, technical materials such as ASA, special PLA and special ABS, nylon and copolyester, support material and even materials with carbon fibre or glass fibre reinforcement such as Nylon-Carbon Fiber CF15, XSTRAND GF30-PA6, XSTRAND GF30-PP, or XSTRAND GF30-PC.
Thanks to the double direct extruder with filament sensor, printing flexible and elastic materials (TPU or TPE) is not a problem.
To further optimise the equipment in relation to the use of various filaments, Raise3D Pro3 Plus allows the use of nozzles with different output diameters (0.2 - 0.4 - 0.6 - 0.8 - 1.0 mm) and materials (brass and stainless steel), allowing the user to adapt to the material to achieve optimal results.
Raise3D offers a wide range of high quality filaments tested with all its printing equipment to find the right printing parameters to get the most out of each material. However, users of Raise3D 3D printers can also use third-party materials. Raise3D offers a list of third-party materials that have been tested with excellent results, and provides the user with the recommended printing parameters for these materials. This list can be viewed here.
Compared to its predecessor model, Raise3D Pro3 Plus features an improved and optimised airflow system to improve heat dissipation and air circulation, creating a stable environment inside the printing chamber.
Raise3D Pro 3 has some features specifically designed to make the 3D printing process easier and faster, significantly reducing the probability of failure and the error rate.
In addition to these features, Raise3D Pro3 Plus has a resume system, end-of-filament detection and remote control, reducing the 3D printer operator's worries during a production run to a minimum.
It is possible to maximize the potential of the Pro 3 Plus 3D printer by installing the Raise3D Hyper Speed Upgrade Kit. It contains the necessary software upgrades, two high flow rate Pro3 hotends, a small auto frequency calibrator, 1 spool of the Hyper Speed PLA filament, and 1 spool of the Hyper Speed ABS filament (these filaments can also be purchased separately).
Apart from achieving speeds of up to 300 mm/s with the Hyper Speed filaments, the Hyper Speed Upgrade Kit allows to print faster (100-150 mm/s) with the Raise3D Premium filaments - Premium PLA, Premium ABS, Premium ASA, Premium PC, Premium PETG and Premium PVA+ filaments.
Raise3D has developed its own lamination software: "ideaMaker", a very easy to use laminator that in just 2 clicks prepares any part (in STL, OBJ or 3MF format) to be printed thanks to its automatic support generator. But the advantages of "ideaMaker" do not end here, as this software allows you to customise the supports, automatically modify the layer height depending on the level of detail required for each area, repair open areas and many more operations.
In addition, ideaMaker includes predefined printing profiles for all 3D printing filaments manufactured by Raise3D, optimised for each manufacturer's printing equipment.
Raise3D also features RaiseCloud, a 3D printing platform based on remotely controlling, monitoring and reporting the entire 3D printing production process. It allows to automate and supervise the production of small batches from any platform with internet access (PC, tablet and smartphone).
It is aimed at companies that want to easily manage their set of 3D printers, prints and users, and thus have a centralised management of all their projects, based on the search for flexibility and customisation, and achieve an efficient workflow.
In short, Raise3D Pro3 Plus is an ideal 3D printer for users who want to take their professional manufacturing to a semi-industrial level, printing high-quality, large prototypes or final parts in a wide range of materials, including technical or fibre-reinforced materials.
At Filament2Print we offer a comprehensive equipment installation service, as well as training services and specialized technical support so that you can maximize the performance of the Raise Pro or Pro2 Series 3D printers.
If you want more information about these services, do not hesitate to contact us.
Raise Shield warranty extension allows you to have the assurance of a professional and agile response to any problem that may arise with the printer and any of its components (except consumables such as hotends, nozzles or other elements that imply wear and tear) during the established period.
Raise Shield can be purchased at the time of purchase of any Raise 3D printer (it will not be available for purchase later). To activate your Raise Shield warranty, you simply have to activate it on the official website within 30 days of purchasing the printer, indicating the purchase invoice and your serial number.
General information |
|
Manufacturer | Raise3D |
Technology | FDM/FFF |
Printer properties |
|
Filament diameter | 1.75 mm |
Print volume | 300 x 300 x 605 mm (1 ext.) / 255 × 300 × 605 mm (2 ext.) |
Number of extruders | 2 |
Nozzle diameter | 0.4 / 0.2 / 0.6 / 0.8 / 1 mm |
Type of screen | Touch |
Electronics | Atmel ARM Cortex-M4 120 MHz FPU / NXP ARM Cortex-A9 Quad 1 GHz |
Firmware | - |
End of filament sensor | ✓ |
Self-leveling | ✓ |
Air filter | ✓ |
Extrusion system | Direct |
Screen size | 7" |
Compatible with third-party materials | ✓ |
Webcam | ✓ |
Software and connectivity |
|
Software | ideaMaker |
Supported files | STL / OBJ / 3MF / OLTP |
Connectivity | WiFi / LAN / USB |
WiFi connectivity | ✓ |
LAN/Ethernet connectivity | ✓ |
Printing properties |
|
XY positioning resolution | 0.78 µm |
Z positioning resolution | 0.078 µm |
Layer height | 0.01 - 0.25 mm |
Maximum extrusion temperature | 300 ºC |
Maximum base temperature | 120 ºC |
Maximum chamber temperature | 40 ºC |
Ambient operating temperature | 15 - 30 ºC |
Electrical properties |
|
Input | 100-240 V AC, 50/60 Hz 230 V @ 3.3 A |
Output | 24 V DC |
Consumption | 600 W |
Dimensions and weight |
|
Dimensions | 620 × 626 × 1105 mm |
Weight | 61.15 Kg |
Other |
|
HS Code | 8477.5900 |
The Raise3D Pro3 Series FDM 3D printers are equipped with a HEPA filter to remove all possible odours and harmful particles generated during the printing of certain materials. This filter should be replaced with a new one approximately every 6 months, depending on the use of the printer and the materials used.
Raise3D works with the world's leading filament manufacturers to optimise their manufacturing profiles. The user can download all these profiles at the following link.
