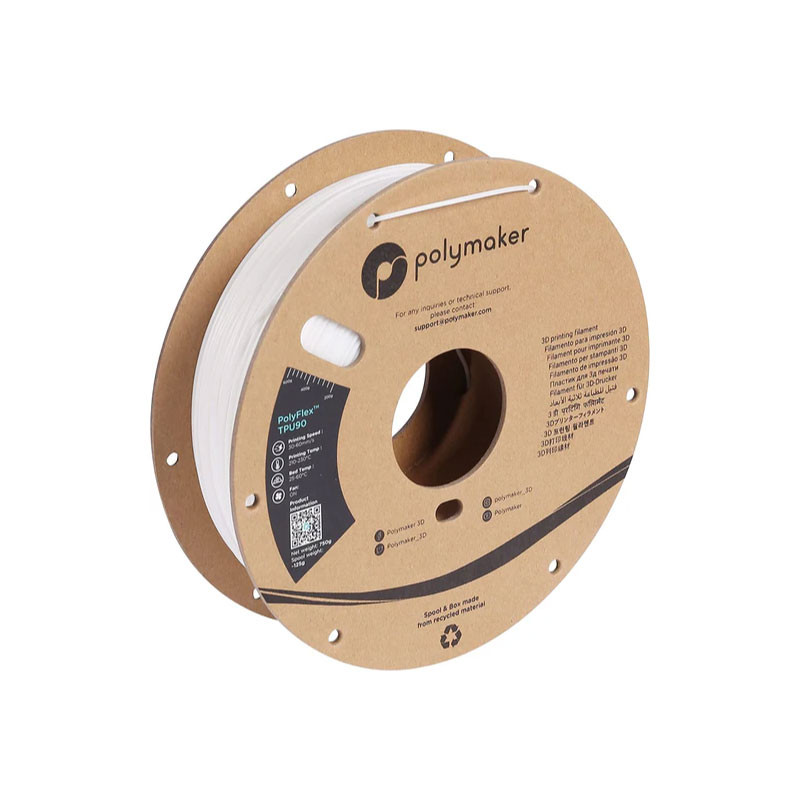

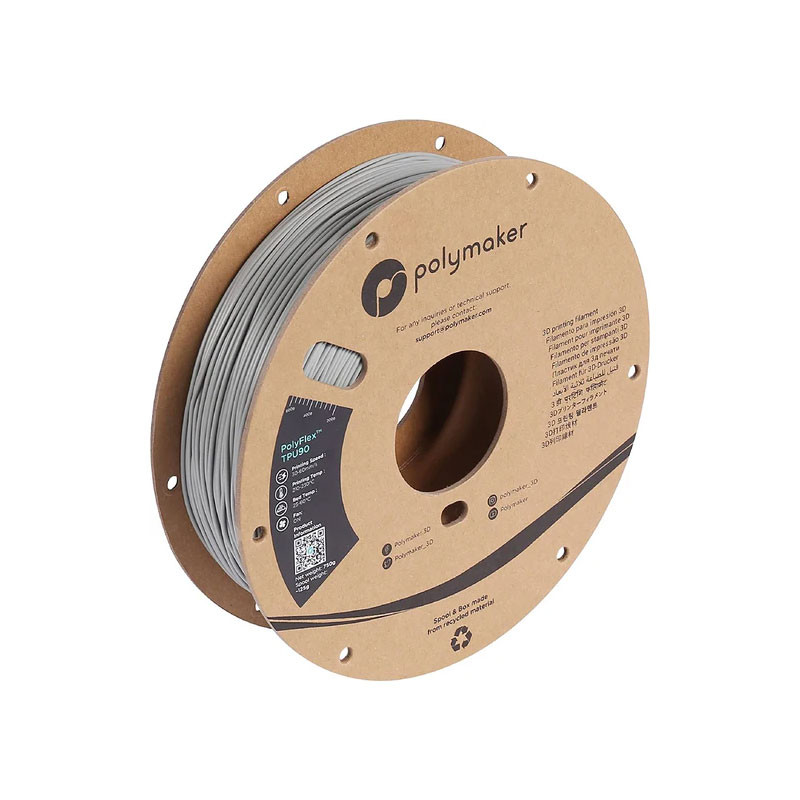

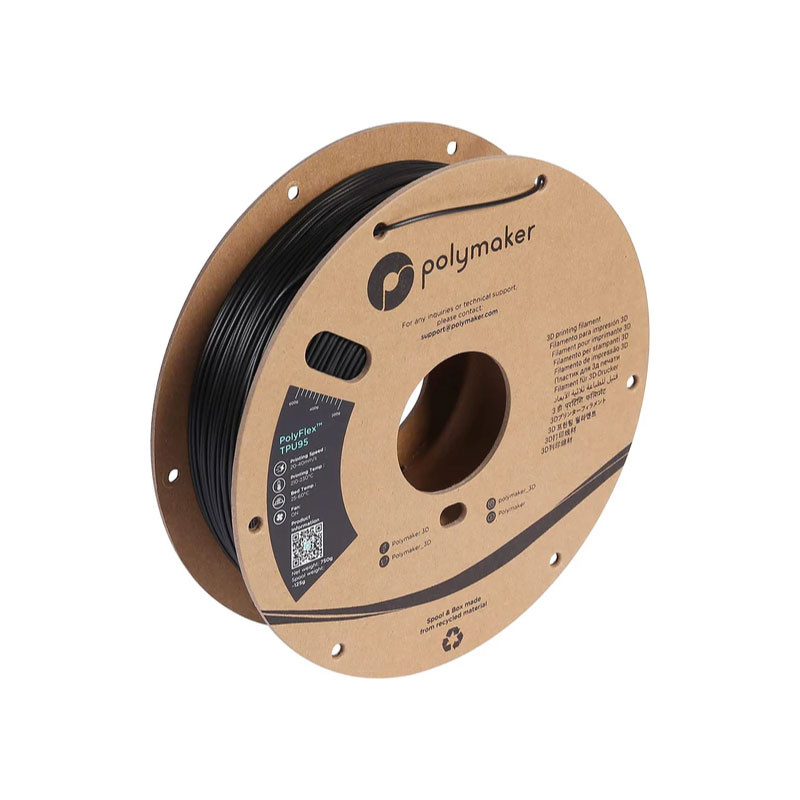

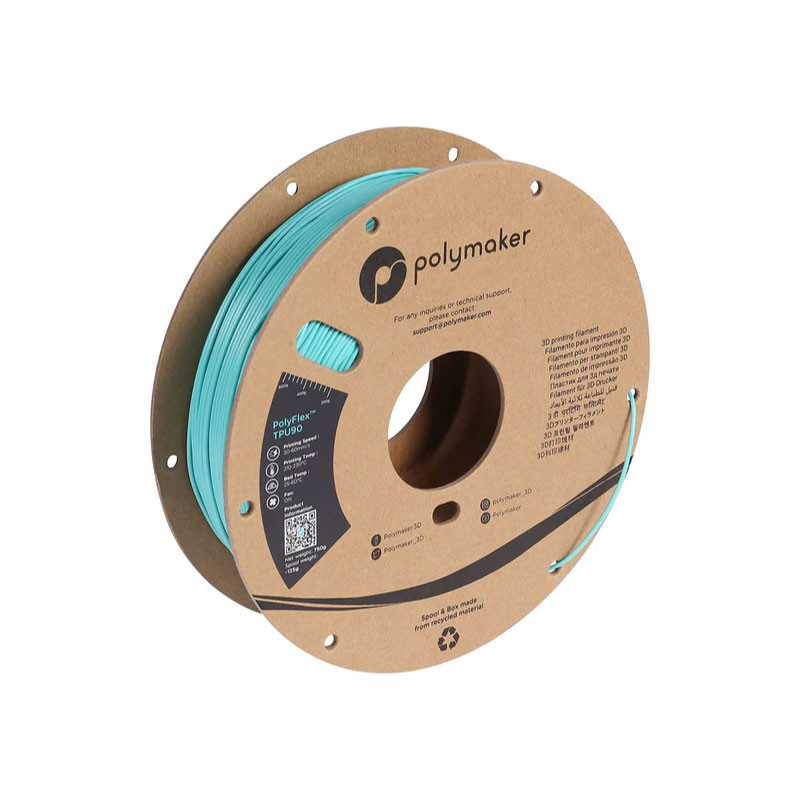

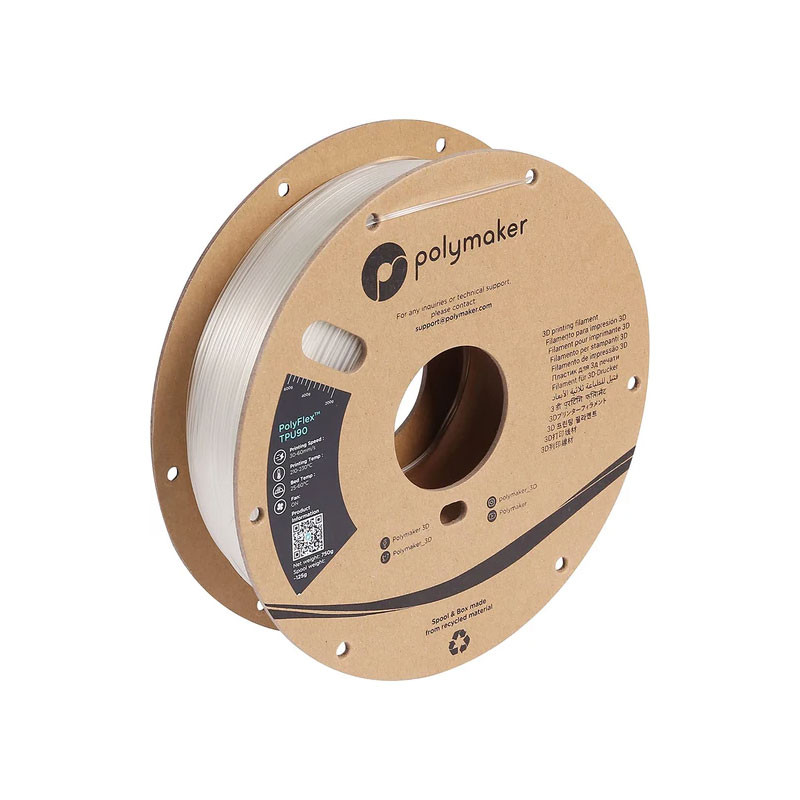

PolyFlex TPU90

Ref.: POLYFLEX-TPU90-WHITE-175-750

39.99 €

Tax excl.

Diameter

Format

Colour

Quantity

Do you need more than 1 units?
Please, contact us.

In stock 1 units available for immediate shipping.
units available for shipping in 0 - 0 days Available for shipment within 0 - 0 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Monday 25 November

Available

Returns

Ask about this product

The PolyFlex TPU90 filament is one of the flexible materials created by Polymaker, engineered to provide high flexibility without compromising the printability. The extrusion of flexible filaments tends to be problematic but with the PolyFlex filaments this is not the case. With proper settings and a direct drive extruder, PolyFlex TPU90 offers excellent layer adhesion, no bubbles, no clogging and no deformation and is easier to print than similar flexible material thank to its high melt index.

A flexible phone case 3D printed with the PolyFlex TPU90 filament

Image 1: A flexible phone case 3D printed with the PolyFlex TPU90 filament. Source: Polymaker.

Parts 3D printed with the PolyFlex TPU90 filament resemble tough rubber and can stretch more than 6 times their original length before breaking. Furthermore, PolyFlex TPU90 has the ability to resist ultraviolet (UV) light or sunlight so it is perfect for the printing of parts that are not only extremely flexible and durable but can be used outdoors without risking decoloration or material degradation.

A wristwatch strap 3D printed with the PolyFlex TPU90 filament

Image 2: A wristwatch strap 3D printed with the PolyFlex TPU90 filament. Source: Polymaker.

Thanks to its excellent mechanical properties and its UV resistance, parts 3D printed with the PolyFlex TPU90 filament can be used for making customer goods (protective covers for portable devices, watch straps), footwear (insoles, soles), vehicle parts (rubber bike parts, drone parts) and various industrial components (seals, plugs, gaskets, blades).

General information
Material	TPU/TPE
Format	0.75 kg
Density	1.12 g/cm³
Filament diameter	1.75 / 2.85 mm
Filament tolerance	±0.05 mm
Filament length	(Ø 1.75 mm-0.75 kg) ± 278.4 m / (Ø 2.85 mm-0.75 kg) ± 105.0 m

Printing properties
Printing temperature	210 - 230 ºC
Print bed temperature	25 - 60 ºC
Chamber temperature	-
Cooling fan	✓
Recommended printing speed	30 - 60 mm/s

Mechanical properties
Elongation at break	(ISO 527) XY: 638.8 ± 15.5 %
Tensile strength	(ISO 527) XY: 12.1 ± 0.82 MPa
Tensile modulus	(ISO 527) XY: 3.40 ± 0.42 MPa
Flexural strength	- MPa
Flexural modulus	- MPa
Surface hardness	(ISO 7619-1) Shore 90A

Thermal properties
Softening temperature	- ºC

Other
HS Code	3916.9
Spool diameter (outer)	- mm
Spool diameter (inner hole)	- mm
Spool width	- mm

The PolyFlex TPU95 filament is delivered in a vacuum sealed bag with desiccant. Once opened, the filament should be stored properly to prevent it from absorbing moisture from the air. The best way to store filaments in a tightly sealed bag with desiccant, in a vacuum sealed container or in an intelligent filament container. During printing, the filament can be placed in PolyBox. If the PolyFlex TPU95 filament absorbs humidity, it should be dried before printing at 65 ºC for 8 hours in a filament dryer.

The manufacturer recommends printing PolyFlex TPU95 filament at 210-230 ºC on a bed heated to 25-60 ºC. It is recommended to print at a speed of 20-40 mm/s with the layer fan on. The best build surface for this filament is a glass surface with glue, Blue Tape or BuildTak. The recommended suppport material for PolyFlex TPU95 is PolyDissolve S1 or PolySupport.

It is highly recommended to wear standard safety equipment during the printing and post-processing of parts 3D printed with the PolyFlex TPU95 filament - safety goggles, gloves, breathing equipment and protective garments, according to needs.
