Chamberlay 100

Reference:

Brand: Lay Filaments

Condition: New product

12 Item Items

Diameter

Format

Quantity

25,95 €

Ask for information

Soluble support filament that withstands extrusion temperatures of 230 - 280º and chamber <100ºC.

Add to wishlist

More info
Data sheet
Download
Usage tips
Specifications

As the 3D printing market keeps evolving, so does the range of applications 3D printing can be used for. 3D printing of complex geometries and structures is no longer a challenge. To 3D print complex shapes with FDM, it is necessary, however, to use supports with overhangs greater than 45 º or a bridge longer than 10 mm. Supports must be removed after the printing process is complete but it must be done very carefully not to damage the surface of the printed piece. The solution to that risk are soluble filaments.

For advanced filaments with exigent use conditions, such as high extrusion and chamber temperatures, conventional support materials are not suitable. Oftentimes, conventional solvent substances are expensive, require ventilation or breathing equipment (D-Limonene), or are difficult to dispose of due to their toxicity. This is why the prolific filament manufacturer Kai Parthy has developed Chamberlay 100, a high temperature water-soluble support filament based on the High-T-Lay formula but with improvements, designed to substitute High-T-Lay. The old High-T-Lay filament had already been designed to replace Lay-PVA; Therefore, we are facing the third generation of evolution of this soluble filament.

Chamberlay 100 is an excellent support material for high temperature plastics, such as ABS, PC, HIPS, PET, PU and PLA, since it can be 3D printed with chamber temperatures up to 100 ºC and extrusion temperatures of 230 - 280 ºC.

Chamberlay 100 soluble filament

Chamberlay 100 dissolves quickly in water, just as its predecessor High-T-Lay. It also maintains good rigidity before 3D printing with high thermal resistance. The advantage of using the water-soluble Chamberlay 100 instead of conventional support materials such as HiPS or PVA is that the process of dissolving the support printed with it is more convenient and less time-consuming, since no ventilation or breathing equipment is required.

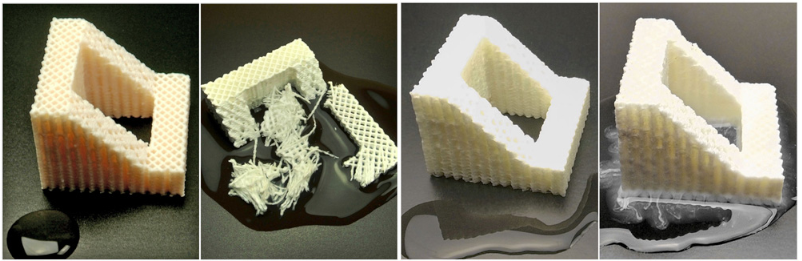

Comparison of the High T-Lay filament (left) and the Chamberlay 100 filament (right)

Image 1: Comparison of the High T-Lay filament (left) and the Chamberlay 100 filament (right). Source: Kai Parthy.

The Chamberlay 100 support filament is perfect for users who do not have a professional work area and want to make complex parts that require support, quickly and easily. Any leftover support can be removed easily with a brush after soaking.

Softening temperature (ºC)	80
Solubility	Solubility
Hide color variations	(Hide color variations)

Chamberlay100 Safety Datasheet

Download

Chamberlay 100 dissolves quickly in water. Should there be any residue left on the surface of the printed piece after the dissolving process, the excess flaky support filament can be removed with a wet brush.

ChamberLay absorbs humidity from the ambient air moderately quickly. If during printing crackling noises or bubbling/sizzling occur at the nozzle exit, and the filament feels too soft, it is a clear indication that the filament contains excess moisture. To solve this problem it is recommended to store the filament in a vacuum sealed bag or a filament drying case, such as the Fiber Three F3 Safe Light or the F3 Safe Long Run. To achieve even better results, the Slice Engineering filament drying capsule should be used. If moist, the filament should be dried at 80°C for 3 hours.

Masterspool format

The 250 g format of the Chamberlay 100 filament can sometimes cause problems during the printing process because it does not include a spool to help the correct supply of material by the 3D printer.

To avoid this type of problem when printing this and other filaments that are sold in masterspool format, you can use a variable spool holder by Filament2Print. This device helps avoid all kinds of tangles and overlaps caused by the absence of a spool.

General information
Manufacturer	Kai Parthy-LayFilaments (Germany)
Material	ChamberLay 100
Format	Pack of 50g Roll of 250g
Density	-
Diameter of filament	1.75 or 2.85 mm
Diameter tolerance	-
Filament length	-
Color	Natural ¹
RAL/Pantone	-
Print settings
Printing temperature	230 - 250 ºC
Print bed temperature	-
Chamber temperature	up to 100 ºC
Cooling fan	-
Mechanical properties
Izod impact strength	-
Charpy impact strength	-
Elongation at break	-
Tensile strength	-
Tensile Modulus	-
Flexural strength	-
Flexural modulus	-
Surface hardness	-
Thermal properties
Softening temperature	-
Melting temperature	-
Specific properties
Transparency	-
Additional Information
HS Code	3916.9
Diameter spool (outer)	200 mm
Diameter spool (inner hole)	-
Spool width	-

* The typical values detailed in this table should be considered as a reference. Actual values may vary depending on the 3D printer model used, part design and printing conditions. We recommend confirming the results and final properties with own tests. For more information you should consult the technical data sheet of the product.

¹ The color difference that the filament may present does not affect the physical or technical properties of the material.
