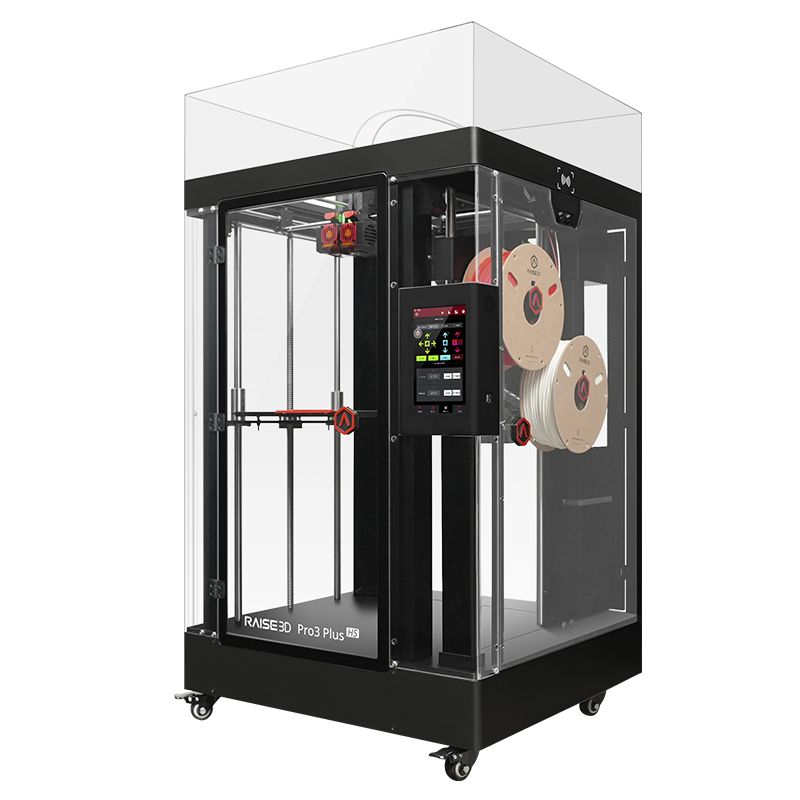

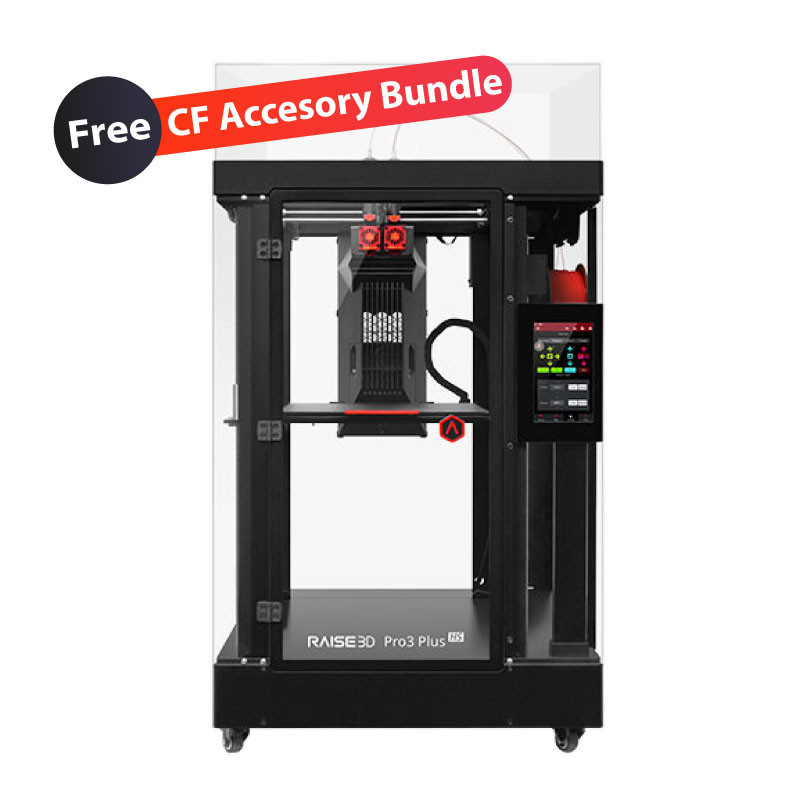

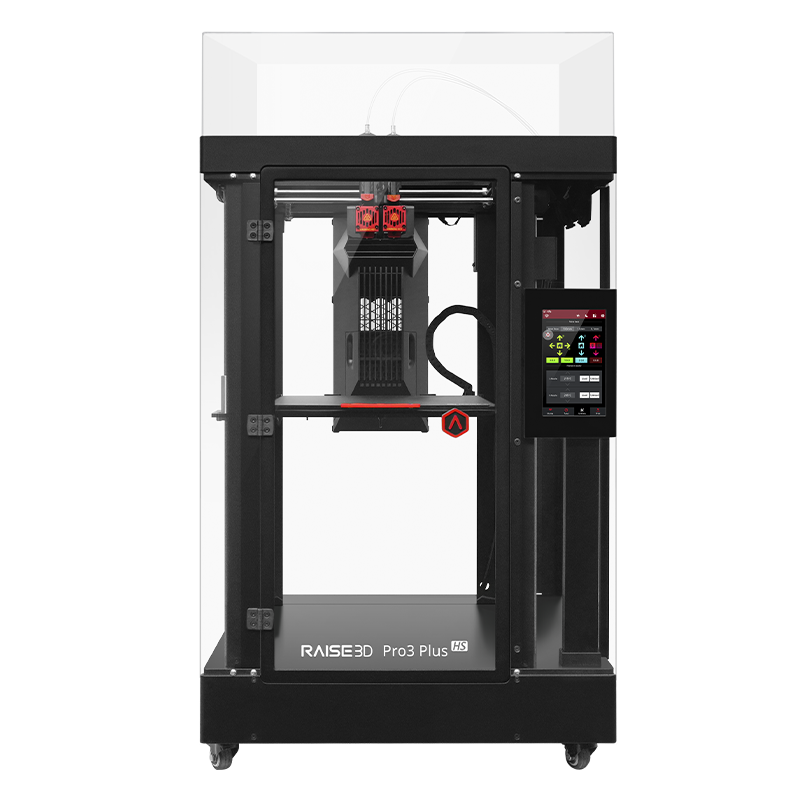

Raise3D Pro3 Plus HS - FDM 3D printer

The Pro3 HS series, manufactured by the well-known company Raise3D, consists of two robust 3D printers designed for professional use - Pro3 HS and Pro3 Plus HS. It builds upon the advancements of Raise3D's flagship Pro3 Series, which includes the Pro3 and Pro3 Plus models, by introducing further performance improvements. This series notably offers a boosted printing speed, production efficiency, and reliability, thanks to the full integration of Hyper FFF technology.

Image 1: The Pro3 HS series. Source: Raise3D.

This enhancement facilitates rapid printing of composite materials to fulfill demanding specifications. Moreover, the newly introduced automatic filament switching feature accommodates 2.5 kg filament spools, empowering manufacturers and print farms to effectively and dependably manufacture small batches of end-use parts or tooling fixtures.

Tailored for high speed printing

The Pro3 HS Series facilitates high-speed printing of composite materials, ranging from 200 to 300 mm/s. This includes materials like Hyper Core and Industrial high-performance materials, guaranteeing that the printed parts meet the requirements of demanding end-use applications effectively. This capability not only boosts production efficiency but also elevates product quality. Additionally, the integration of Hyper FFF technology ensures precise and reliable high-speed printing, thanks to features such as a high-flowrate hot end and an active vibration reduction algorithm.

Video 1: Introducing the Pro3 HS series. Source: Raise3D.

The integrated Hyper FFF technology facilitates printing at standard speeds of 300 mm/s, even when using Hyper Core high-performance materials. This results in a reduction of printing time by 30 % to 70 % compared to the existing Raise3D Product Series with the Hyper FFF upgrade. Moreover, the motion control system has undergone enhancements, including the implementation of a closed-loop stepper motor, double-diaphragm couplings, and an optimized axis structure. These improvements ensure precise high-speed printing without step loss and reduce noise by over 27 %.

Image 2: The upgraded motion control system of the Pro3 HS printer. Source: Raise3D.

Tailored for high-volume industrial printing tasks, the Raise3D Pro3 HS Series is engineered for utmost reliability and longevity. Its reinforced hot end and all-metal nozzle, coupled with a robust all-metal frame and dual-gear extruder, facilitate prolonged production hours. The optical axis structure of the coupling in the transmission system enhances tightness and durability, rendering the machine suitable for extended operation. Additionally, the new printing build plate offers a more consistent and potent magnetic attraction, mitigating model warping. It is also 1 mm thinner, heating up to 100 ºC two minutes faster, thus reducing waiting time and enhancing print efficiency.

Image 3: The RFID sensor identifies the filament and verifies necessary parameters. Source: Raise3D.

To optimize production efficiency with minimal manual intervention, the Pro3 HS Series incorporates an automatic filament switching function, enabling uninterrupted production for up to 120 hours. It supports printing with two larger 2.5 kg filament spools, allowing continuous printing with a total of up to 5 kg of material. The RFID sensor identifies the filament and verifies necessary parameters to prevent incorrect material usage, while the auto filament unloading function reduces manual intervention, thereby enhancing production efficiency and minimizing labor involvement.

Image 4: The new dual head with electronic lifting system. Source: Raise3D.

The Raise3D Pro3 HS Series incorporates Hyper Core filaments, characterized by rapid melting and cooling rates, enabling high-speed printing while enhancing Z-direction strength and stiffness. Each Pro3 HS printer is equipped with a high flowrate hot-end featuring a silicon carbide nozzle and is bundled with a roll of Hyper Core filament, facilitating accessible composite printing. With its advanced features and capabilities, the Raise3D Pro3 HS Series distinguishes itself as an outstanding option for professionals in search of dependable, high-speed, and efficient 3D printing solutions.

Compatible materials

The Raise3D Pro3 Plus HS printer boasts expansive printing parameters suitable for a diverse range of project sizes and complexities. With a build volume of 300 × 300 × 605 mm for single extruder prints and 255 x 300 x 605 mm for dual extruder prints, it provides ample space for both large and intricate models. The printer's nozzle can achieve a maximum temperature of 320 ºC, while the heated bed can reach up to 120 ºC, ensuring compatibility with a wide array of materials and creating optimal conditions for producing high-quality prints across various applications.

Image 5: Parts 3D printed on the Pro3 HS printer. Source: Raise3D.

The printer supports a range of Hyper Core materials like PPA CF, PPA GF, and ABS CF, as well as Hyper Speed materials such as PLA and ABS, ensuring high-speed printing with outstanding performance. Additionally, it is compatible with industrial-grade materials like PPA CF, PPA GF, PET CF, PET GF, PETG ESD, PET Support, and PPA Support, catering to the needs of demanding end-use applications.

Hyper Core PPA CF25

Hyper Core PPA GF25

Hyper Speed ABS V2

Hyper Speed PLA

Moreover, the printer accommodates Premium materials such as PLA, ABS, ASA, PETG, PC, TPU-95A, and PVA+, offering versatility for diverse printing demands. Additionally, the Raise3D Open Filament Program (OFP) guarantees compatibility with third-party materials, empowering users to explore and identify the ideal filament for their unique requirements.

Ease of use

The Raise3D Pro3 HS Series prioritizes user convenience with its user-friendly slicing software, ideaMaker. This software supports an extensive array of file types, including STL, OBJ, 3MF, OLTP, STEP, STP, IGES, and IGS, and is compatible with Windows, macOS, and Linux operating systems. The printer features a 7" touchscreen for intuitive control and incorporates power loss recovery functionality to maintain print continuity in the event of unexpected power outages.

Image 6: Prototyping with the Pro3 HS series is easier than ever. Source: Raise3D.

Featuring an advanced air filtration system equipped with a HEPA filter and activated charcoal, the printer ensures a clean working environment, with noise emissions kept below 55 dB (A) during operation. Connectivity options including WiFi, LAN, and USB, coupled with a live camera for remote monitoring, facilitate seamless integration into any workflow. Moreover, the Eve Smart Assistant enriches the user experience by providing valuable insights and recommendations to optimize printing performance.

Installation service, training and technical support

At Filament2Print, we provide a comprehensive equipment installation service along with training services and specialized technical support to help you maximize the performance of the Raise Pro3 HS or Pro3 Plus HS Series 3D printers. If you require more information about these services, please feel free to contact us.

Raise Shield warranty extension

The Raise Shield warranty extension offers you the confidence of a professional and prompt response to any issue that may arise with the printer and its components (excluding consumables like hotends, nozzles, or other elements subject to wear and tear) throughout the specified period.

Raise Shield can be acquired at the time of purchasing any Raise 3D printer (it won't be available for purchase afterward). To activate your Raise Shield warranty, simply visit the official website within 30 days of purchasing the printer. Provide the purchase invoice and your serial number to complete the activation process.
