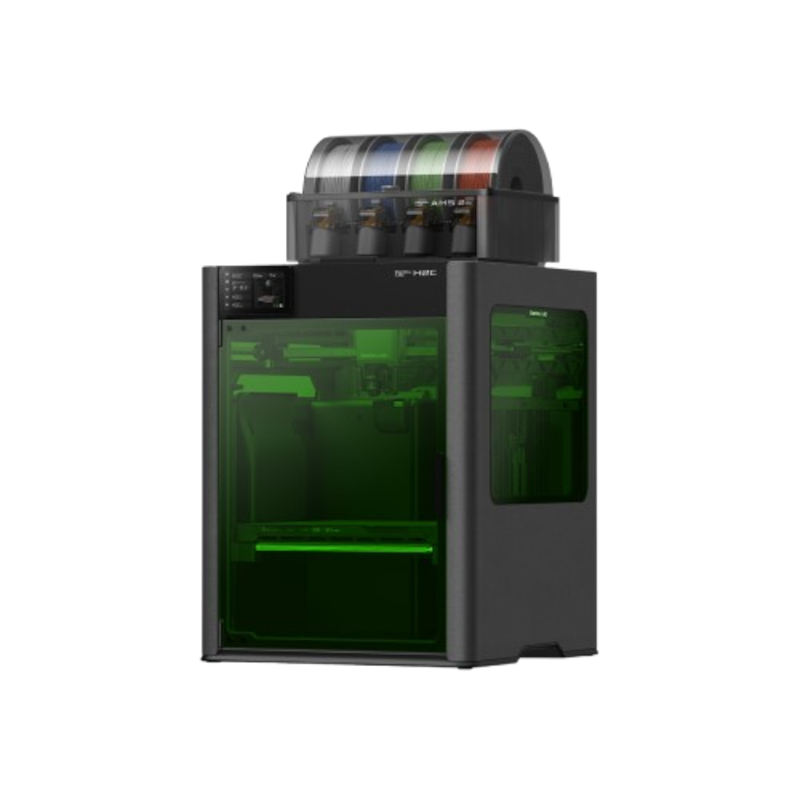

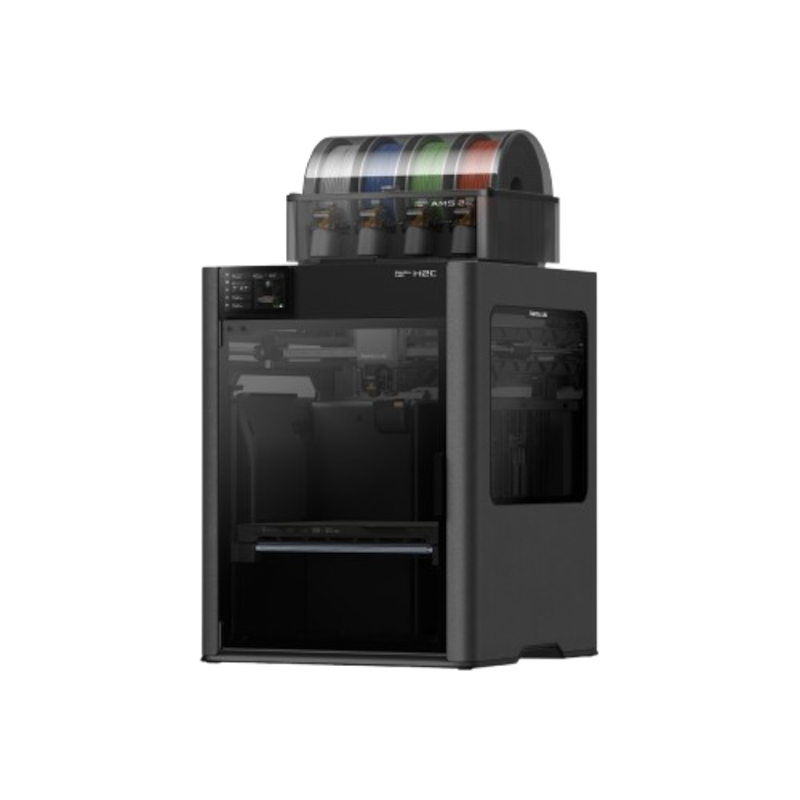

Bambu Lab H2C – FDM 3D Printer

The H2C is a large-format 3D printer designed for multi-material and multi-color production with minimal material waste during filament changes. Developed from the H2 series platform, it incorporates the new "Vortek" hotend swapping system. Its architecture stands out due to an automatic hotend exchange mechanism that minimizes waste generation during filament changes and eliminates the need for conventional purge towers.

Video 1: The Vortek system. Source: Bambu Lab

The build volume varies between 305 × 320 × 325 mm in single-nozzle mode (right side), 300 × 320 × 325 mm in dual-nozzle mode (both sides active), and in left-single-nozzle configuration, the volume reaches 325 × 320 × 325 mm. This slight reduction compared to other models in the same series is due to the space occupied by the hotend swapping mechanism. Nevertheless, it retains a rigid frame composed of aluminum and steel profiles, with side and top housings made from reinforced polymers and tempered glass panels. All of this fits into a compact footprint—approximately 492 mm wide, 514 mm deep, and 626 mm high—with a net weight of around 32.5 kg.

The extruder features a permanent magnet synchronous motor (PMSM), a technology that offers significant advantages over traditional stepper motors. Maximum extrusion force reaches 10 kg, representing a 67–70% increase over conventional systems. This boost enables high material flow rates without compromising extrusion stability, especially critical in high-speed printing or with high-viscosity materials.

Video 2: The extrusion system. Source: Bambu Lab

The system samples filament position and resistance at a frequency of 20 kHz. This high sampling rate allows real-time detection of events such as filament slippage (slip), partial hotend clogging, or filament breakage. In combination with eddy current sensors located in the toolhead, it enables closed-loop control of extrusion pressure, allowing dynamic adjustment of the Pressure Advance parameter without manual intervention.

Video 3: The vision encoder in operation. Source: Bambu Lab

Linear positioning accuracy on the X and Y axes is below 50 micrometers under controlled conditions—a figure comparable to the thickness of a human hair. This level of precision can be achieved directly with the optional vision encoder installation.

Hotend Architecture and the Vortek System

Image 1: The hotends of the Vortek system. Source: Bambu Lab

The Vortek system constitutes the technological core of the H2C. It is a contactless, automatic hotend swapping mechanism based on three key principles: magnetic mounting, inductive heating, and wireless data communication. The right-side carrier holds up to six interchangeable hotends. Each unit includes an integrated electronic chip storing data on its thermal history, cycle count, and overall condition. During a swap, the toolhead positions itself over the selected hotend; magnetic coupling occurs automatically, and inductive heating begins simultaneously.

Video 4: The system in operation. Source: Bambu Lab

The average time to reach typical printing temperatures (e.g., 215 °C for standard PLA) is approximately 8 seconds. This rapid heating is achieved via high-frequency induction coils housed in the main toolhead, eliminating the need for thermal wires or electrical connectors on the hotend—thus reducing potential failure points. No purge is required during hotend exchanges because each unit remains thermally isolated and cold until activated. However, when loading filament for the first time into a new or fully cooled hotend, an initial purge is necessary to expel air and ensure melt continuity.

Multi-Material Capability and Filament Management

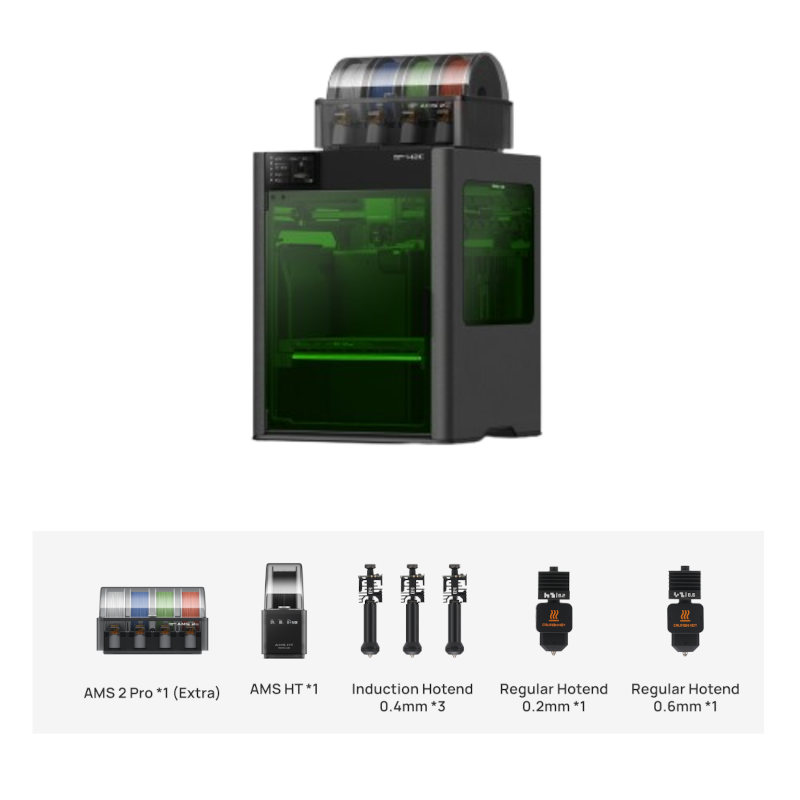

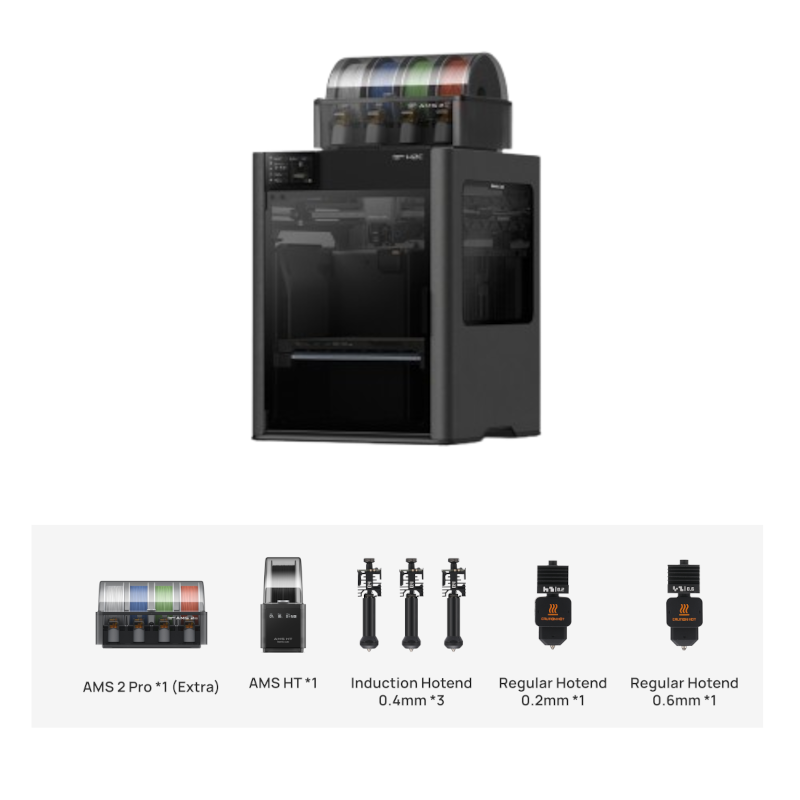

The printer supports up to seven simultaneously active hotends: six in the Vortek system (right side) and one fixed hotend on the left. Each hotend can be assigned a different material—rigid, flexible, soluble, carbon-fiber-reinforced, etc.—enabling the production of fully functional, integrated parts without post-assembly. To feed these hotends, the H2C supports up to three Automatic Material Systems (AMS). Two standard AMS units can supply the six right-side hotends, while a high-temperature AMS (HT) can feed the fixed left-side hotend. With this configuration, the total number of available spools reaches 24, enabling unattended, long-duration prints.

Image 2: The multi-material system supports up to 24 materials. Source: Bambu Lab.

Material compatibility is extensive: from standard thermoplastics (PLA, PETG, TPU) to engineering polymers such as polycarbonate, glass-fiber-reinforced nylon (PA-GF), high-temperature polyamide (PAHT-CF), or phenylene sulfide (PPS-GF20). The enclosed chamber and hotend temperature (up to 350 °C) are critical for interlayer adhesion and minimizing residual stresses in these materials.

Thermal System and Environmental Control

The printer features a heated build chamber via integrated heating elements in the side and top walls, capable of reaching up to 65 °C to significantly reduce warping in semi-crystalline materials such as PA12 or POM. The hotends can operate up to 350 °C and use standard hardened steel nozzles in diameters of 0.2 mm, 0.4 mm, 0.6 mm, and 0.8 mm, with optional tungsten carbide nozzles for abrasive materials. Furthermore, all internal components are manufactured using UL94 V-0 flame-retardant materials, ensuring high safety even in the event of accidental ignition.

Air Filtration and Emission Management

During printing with engineering materials, ultrafine particles and volatile organic compounds (VOCs) are generated. These are managed by a three-stage filtration system consisting of a G3 filter for coarse particles, a HEPA H12 filter capable of capturing at least 99.5% of particles ≥ 0.3 µm, and an activated carbon filter targeting VOC adsorption (e.g., styrene, caprolactam, formaldehyde). Airflow moves from the bottom toward the upper filters, creating a unidirectional current that prevents contaminant accumulation inside the enclosure.

Image 3: The multi-stage filtration system. Source: Bambu Lab.

Sensors and Monitoring Systems

The machine integrates an extensive network of thermal, optical, pressure, position, and current sensors—exceeding 59 elements in advanced configurations equipped with a laser module, six Vortek hotends, and a top-view camera. The vision system includes a toolhead-mounted camera with macro lens and real-time analysis for detecting anomalies such as blobs or under-extrusion, a top-view camera for structural monitoring of the printed part, and a front camera for remote viewing. All data are processed by a proprietary neural algorithm that not only detects failures but also assesses their severity and proposes corrective actions—such as pausing, parameter adjustment, or partial reprinting.

Optional Modules and Expandability

The platform is designed to accept third-party modules or future manufacturer-developed upgrades:

• Cutting module: features a pneumatically actuated rotating blade, suitable for cutting flexible materials or automatically detaching parts from the build plate.
• Laser module: available in 10 W and 40 W power ratings, enabling engraving, shallow cutting, and marking on organic materials (wood, leather, paper) and some plastics. Requires active cooling and complies with strict safety protocols.
• Advanced connectivity: in developer mode—and provided laser or cutting modules are inactive for safety reasons—an MQTT interface is enabled for integration with industrial automation systems (MES, SCADA) or fleet management software.

Technical Limitations and Usage Considerations

Despite its flexibility, the H2C has certain constraints inherent to its current firmware design:

• Hotends with nozzles of differing diameters cannot be combined within the same print job. However, hotends sharing the same nozzle diameter but differing in flow profile (standard vs. high-flow) are permitted.
• The build plate is not interchangeable with other models in the same series due to the modified usable area. Nonetheless, accessories such as vision-based calibration plates, cutting mats, and laser platforms are compatible across the entire product line.
