Flashforge Creator 3 Pro extruder assembly

FLASHF-CREATOR3RO-EXT-LEFT
178.47 € 178.47 €
Tax excl.
Placement
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 5 - 7 days Available for shipment within 5 - 7 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Monday 19 January - Wednesday 21 January

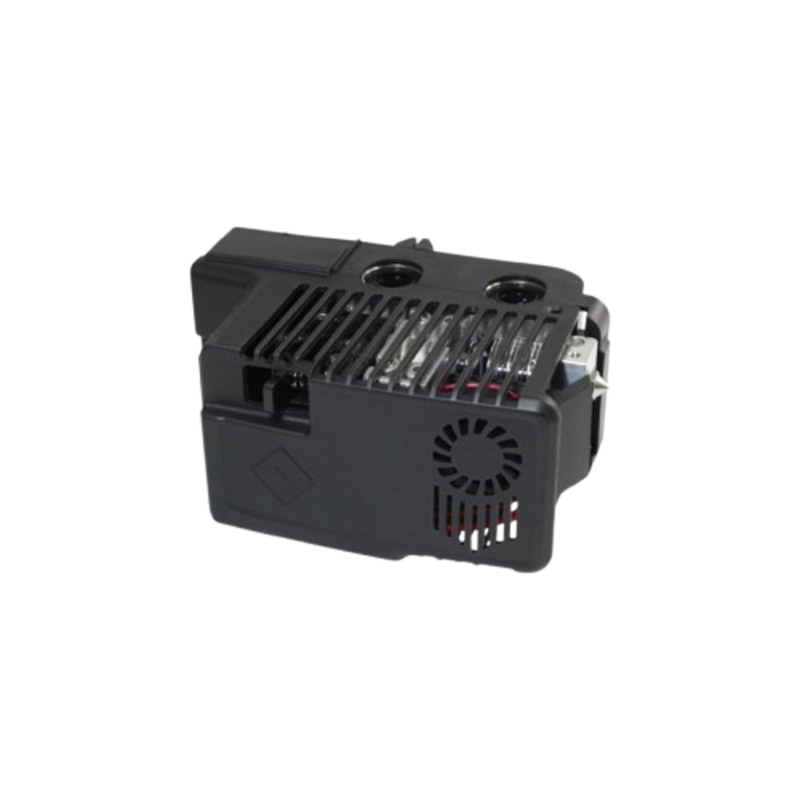

Original manufacturer replacement (OEM) for the Flashforge Creator 3 Pro 3D printer, compatible with both the left and right extruders of the IDEX system. Each assembly fully replaces the extrusion system: hotend, heater block, stepper motor, feeding mechanism, sensors, and ventilation system. It features specific connectors for each side, allowing replacement without modifications.

Implements IDEX (Independent Dual Extruder System) for multi-material printing, soluble supports, and duplicate/mirror modes, and uses direct drive extrusion to improve control over flexible and technical filaments. The left extruder is typically used as the primary extruder and is compatible with all printing modes; the right extruder is intended for dual printing, secondary materials, or soluble supports, enabling multi-material synchronization with the left, while both maintain the same thermal and mechanical specifications.

Replacing the complete extruder assembly fully restores the extrusion system in case of motor, hotend, heater block, sensor, or fan failures; eliminates chronic jams, skipped steps, or thermal instability; provides immediate compatibility with high-temperature technical materials; and reduces maintenance time compared to replacing individual components.

Usage recommendations

  • Perform Z-axis calibration and bed leveling after replacement.
  • Regularly inspect the nozzle when using abrasive materials.
  • Select the appropriate nozzle diameter according to material and required flow.
  • Ensure proper airflow in the hotend fans to maintain thermal stability.

The complete extruder assembly for Flashforge Creator 3 Pro, in both left and right versions, is the ideal solution for corrective maintenance, production equipment renewal, and restoring the original IDEX system printing quality.

General information
Manufacturer Flashforge
Number of extruders 1
Nozzle diameter 0.4
Compatibility Flashforge Creator 3 Pro

Extruder properties
Filament diameter 1.75 mm
Maximum extrusion temperature 320 ºC
Extrusion system Direct

Other
HS Code 8477.2

Preparation before replacement: disconnect the printer from power and allow the extruder and hotend to cool completely. Have the appropriate tools at hand (precision screwdrivers, Allen keys) to avoid damaging screws or adjacent components during disassembly.

Removal of the old assembly: carefully loosen the mounting screws and remove the extruder assembly while keeping wiring connections visible. Labeling or photographing the original arrangement helps to correctly reinstall the electrical connectors on the new assembly.

Installation of the new assembly: place the extruder assembly in position, ensuring that guides and rails are properly aligned. Tighten screws evenly and firmly, avoiding uneven tension that could result in vibrations or misalignment during filament feeding.

Check coupling with the hotend: ensure that the drive gear is aligned with the hotend filament entry and that filament can be inserted without bending or deviating as it enters the melt zone.

Calibration and feeding tests

  • Manual feeding test: after installing the new assembly, feed filament manually with the printer powered on but not printing to verify that the path is smooth and free of excessive resistance.
  • Tension adjustment: adjust the filament tensioner according to the filament diameter and type (e.g., flexible filaments usually require less pressure than rigid filaments to avoid deformation).
  • Dry run test: perform a test extrusion from the control panel to confirm that the extruder rotates correctly in both directions and that retraction occurs without skipped steps.

Maintenance and periodic inspections

  • Gear cleaning: remove filament residue, dust, or microfibers that may accumulate between the drive gear teeth to preserve grip on the filament.
  • Inspection of bearings and guides: ensure that the extruder guide bearing rotates freely and that there is no lateral play that could cause feeding variations.
  • Tensioners and spring check: verify the tension of the spring and replace it if showing signs of fatigue or deformation, as inconsistent tension can cause slipping or under‑extrusion.

Operational recommendations

  • Verification before technical materials: before printing demanding materials such as Nylon or PC, perform test prints with PLA to validate that the extruder assembly feeds accurately and smoothly.
  • Flexible material management: if using flexible filaments, reduce the distance between the drive gear and guide to minimize the possibility of buckling or jams along the filament path.
  • Monitoring during printing: periodically observe feeding on long prints to detect signs of slipping, vibrations, or ‘clicking’ indicating traction issues.
