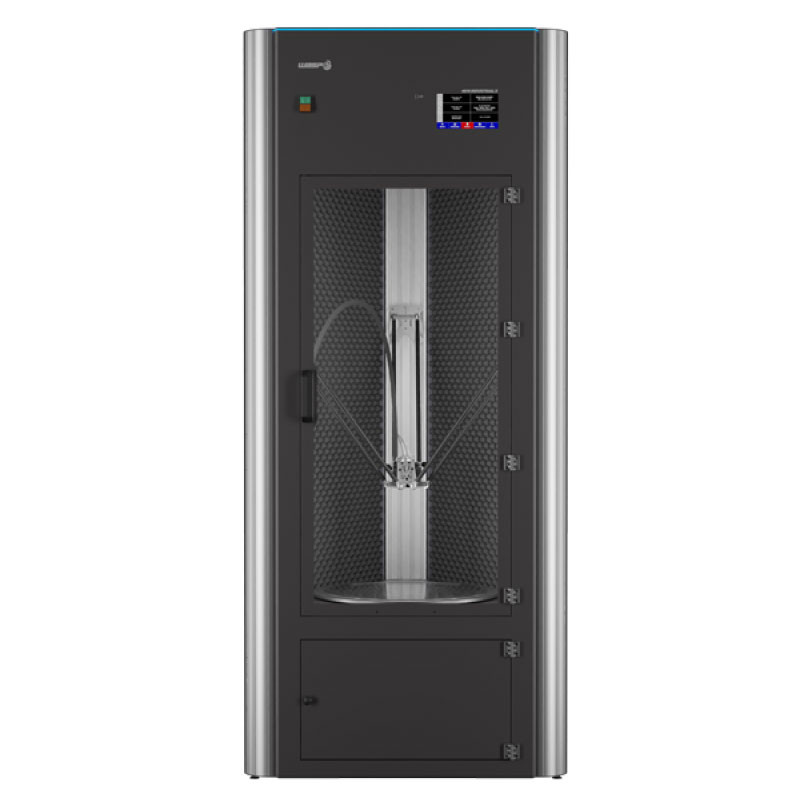

Delta WASP 4070 ZX - 3D FDM Printer

Ref.: WASP-4070-ZX

13,700.00 €

Tax excl.

Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 6 - 10 days Available for shipment within 6 - 10 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Friday 27 February - Thursday 5 March

Financing available through leasing or renting. More information

from 211.00 €/month
(tax not included)

Returns

Ask about this product

¿Estás buscando recambios o accesorios para este producto?

Spare Parts

The Delta WASP 4070 ZX is the ultimate solution for additive manufacturing of technical and high-performance materials. Combining versatility, robustness, and industrial reliability, it enables the creation of large, complex parts ideal for functional prototypes, industrial components, and direct production.

Advanced technology and features

This printer integrates carbon fiber arms that reduce mechanical weight by half and ensure maximum precision. The steel-reinforced core belts provide stability even during long prints and with demanding materials. Its active temperature control system (Hot & Cold Technology) reaches up to 70 °C, optimizing the deposition of ABS, Nylon Carbon, HIPS and PMMA without compromising internal mechanics.

The innovative VAC (Vacuum Active Control) system allows the print plate to be changed in seconds, ensuring perfect adhesion and easy part removal. The dual ZENX extruders reach up to 350 °C, providing superior extrusion force for printing technical materials with total cleanliness and precision.

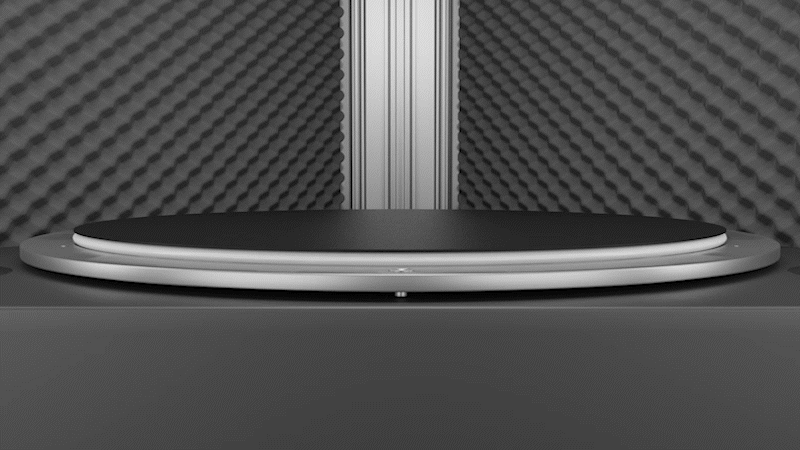

Perfect adhesion and easy removal thanks to a vacuum-controlled system that allows interchangeable plates made of different materials.

Video 1: Perfect adhesion and easy removal thanks to a vacuum-controlled system that allows interchangeable plates made of different materials. Source: WASP

Connectivity and remote monitoring

The Delta WASP 4070 ZX features an integrated camera and Wi-Fi, LAN, and USB connectivity, allowing users to monitor and control prints from anywhere. The 7-inch TFT touch display and LED status bar simplify workflow management and enhance user experience.

Compatible with professional software such as Simplify3D®, Cura, and Slic3r, it works with STL, OBJ, and 3MF files on Windows, Mac, and Linux. Advanced functions such as automatic bed leveling, print recovery after power loss, and Z calibration ensure maximum efficiency and safety.

Video 2: Presentation of the large-format 3D printer Delta WASP 4070 ZX features. Source: OKM2000 Group

High-performance technical materials

Compatible with a wide range of professional filaments: ABS, HIPS, Nylon Carbon, PMMA, PLA, PETG, PC, PC+ABS, PPS, PVA and ASA. The combination of a dual extruder with hardened nozzles and Hot & Cold Technology facilitates printing of composites and advanced polymers with repeatability and top quality.

Industrial application case: Drone production with Italdron

Italdron has integrated 3D printing into its drone manufacturing process, using Nylon Carbon for final parts that combine lightness and thermal resistance. This technology reduces development times and costs while ensuring functional, durable, and precise components for demanding flight environments.

Video 3: The Italian company ITALDRON uses Delta WASP 4070 ZX printers in the production of high-performance drones.

Main competitive advantages

Large print volume: Ø 400 x 700 mm.
Printing of advanced technical materials: Nylon Carbon, ABS, HIPS, and PMMA.
Exceptional speed and precision: up to 200 mm/s with 50-micron resolution.
Remote monitoring and full control: integrated camera and Wi-Fi/LAN connectivity.
VAC system and Hot & Cold Technology: quick plate changes and efficient thermal control.
Dual ZENX extruders: maximum strength and precision for technical filaments.

Comparison between 4070 series printers


Feature	4070 ZX	4070 FX	4070 HDP
Extruder type / feed	Filament-type extruder (1.75 mm), designed for technical materials.	Extruder optimized for flexible materials (fine control of feeding and retraction).	HDP extruder that prints from granules/pellets (FGF/FFM), not from filament.
Compatible materials / focus	Technical and reinforced plastics (e.g., carbon fiber nylon).	Flexible materials such as TPU/TPE (up to Shore ~50A), orthopedics, and elastic prototypes.	Plastic granules, including recycled options; oriented towards production and low material cost.
Printing volume / dimensions	Ø 400 mm × height 700 mm (approx. cylindrical area).	Base volume similar to the 4070 series (≈ Ø 400 × 700 mm).	Similar volume (≈ Ø 400 × height ≈ 600 mm depending on configuration).
Chamber / environment temperature	Temperature-controlled chamber up to ~70 °C for technical materials.	Similar heated chamber (up to ~70 °C) to reduce warping with flexible materials.	Closed and insulated chamber; typical internal temperatures around ~50 °C (focused on granule management).
Typical applications	Structural parts and high-performance technical prototypes.	Flexible parts, biomedical prototypes, and elastic components.	Volume production with granules, large parts, and low material cost.
Specific advantages	High versatility for technical materials and good surface finish with filament.	Excellent handling of flexible materials that are usually difficult with standard extruders.	Significant savings in consumable costs; ability to use recycled and industrial pellets.

Transform industrial production

The WASP 4070 ZX is not just a 3D printer, but an integrated industrial additive manufacturing system, ideal for companies seeking innovation, speed, and reliability in large technical parts, direct production, and prototyping.

Video 4: 3D printed parts on Delta WASP printers. Source: WASP

General information
Manufacturer	WASP
Technology	FDM/FFF

Printer properties
Nozzle diameter	0.7 mm
Self-leveling	✓

Software and connectivity
Software	Cura \| Slic3r
Supported files	.stl, .obj, .gcode
Connectivity	WiFi \| LAN \| USB

Printing properties
Print volume	Ø 400 x h 700 mm

Electrical properties
Input	220/240 V 50/60 Hz (110V available)

Dimensions and weight
Dimensions	850 x 770 x 2150 mm
Weight	95 Kg
Package dimensions	1000 x 1000 x 2300 mm
Package weight	250 Kg

Other
HS Code	8477.5900

Other information

Included in the package:

1x Delta WASP 4070 ZX 3D Printer
1x WASP natural ABS 1 kg
1x WASP white HIPS 1 kg
1x 0.7 mm nozzle (high-speed hardened steel)
1x Print bed kit
1x Vacuum gasket kit
1x Simplify3D® slicing software (license included, usable on two devices simultaneously)
1x USB drive
1x Cleaning kit

– Check that the build volume (Ø 400 × 700 mm) is free of obstructions and that the machine is placed on a stable, level surface.

– Use compatible technical materials (e.g., PA-carbon, ABS, PC, PPS) that take advantage of the hot-end up to 350 °C and the heated chamber up to ~70 °C.

– Ensure that the chamber is closed and the temperature is controlled to maintain thermal stability, especially when printing engineering or reinforced materials.

– Verify that the build plate system with VAC (Vacuum Active Control) is properly activated to ensure good first-layer adhesion and easy part removal.

– Use hardened steel nozzles and make sure the dual ZENX extruder is calibrated and free of obstructions to handle abrasive or reinforced materials.

– Perform regular maintenance: clean the hot-end, check the precision steel-core belt, carbon fiber arm suspension, and verify structural rigidity.

– Ensure that the printer is installed in an environment with an ambient temperature between 15 °C and 30 °C (storage 0–30 °C) to guarantee optimal material performance.
