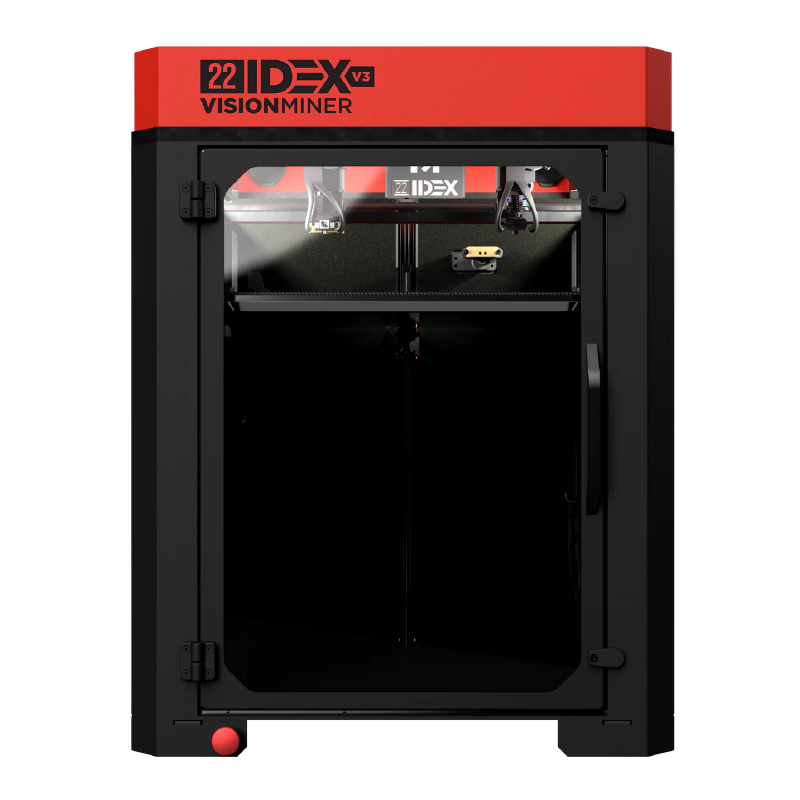

Vision Miner 22 IDEX V3 High-Temp - FDM 3D Printer

VM-22-IDEX-V3-HT
19,990.00 € 19,990.00 €
Tax excl.
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 0 - 0 days
Available for shipment within 0 - 0 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Financing available through leasing or renting. More information

from 308.00 €/month
(tax not included)

The 22 IDEX V3 High-Temp from Vision Miner is an industrial 3D printer designed to work with high-performance thermoplastics such as PEEK, PEKK, ULTEM™, PEI, PPSU, Nylon, PC, and ABS, among many others. Equipped with independent dual extruders capable of 500 °C, an actively heated chamber up to 100 °C, and a build platform reaching 200 °C with a triple motor and true automatic leveling, it offers a fully open material system combining automation, ease of use, and optimized cost for high-temperature additive manufacturing.

Video 1: Presentation of the 22 IDEX V3 High-Temp industrial printer by Vision Miner.

What's New in Version V3

The 22 IDEX V3 is the result of years of improvements based on the experience of engineers, print shops, and manufacturers around the world. It incorporates internal, external, mechanical, software, and firmware upgrades that make it the most advanced version to date:

Duet 3 Mainboards with more RAM, greater processing power, and improved firmware; fully automated XYZ calibration ready to use right out of the box; more than 100 micro-adjustments enhancing the user experience; and thermal improvements enabling ultra-polymer printing with complete reliability.

Video 2: A user performs printing tests with different filaments.

High Productivity with Industrial Materials

From aerospace spare parts to autoclavable and sterilizable tools for medical applications, the 22 IDEX V3 allows working with functional polymers and composites resistant to chemicals and radiation. Capable of processing high-temperature metal-replacement thermoplastics, this printer can produce everything from vacuum molds to press brake tooling, delivering production-ready components for automotive, medical, industrial, and aerospace sectors.

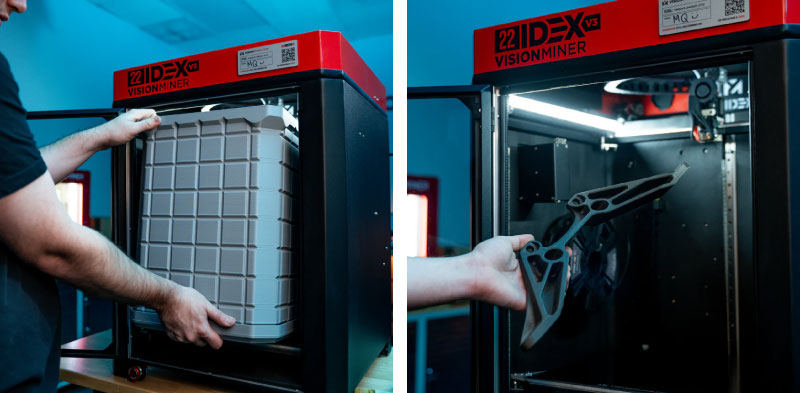

The 22 IDEX V3 printer can print large-volume parts for multiple applications.

Photo 1: The 22 IDEX V3 printer can print large-volume parts for multiple applications. Source: Vision Miner

High-Performance Extrusion: 500 °C Dual Hotends

Unlike other printers, both extruders reach 500 °C, allowing work in multi-material, duplication, mirror, or soluble support modes. This ensures maximum versatility for complex and continuous production projects.

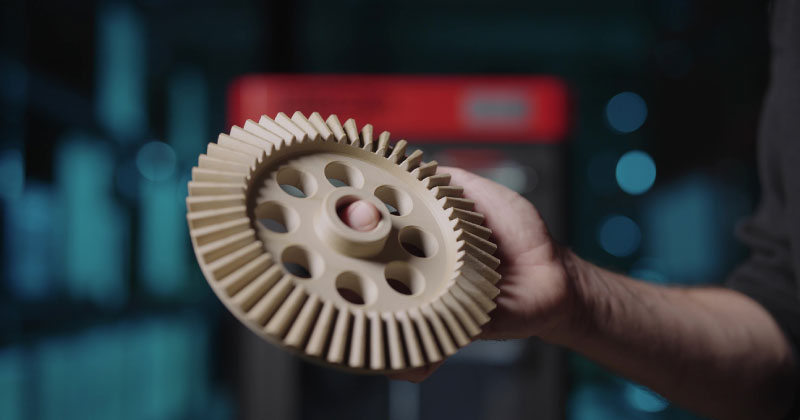

Part created with the 22 IDEX V3 High-Temp. Source: Vision Miner.

Photo 2: Part created with the 22 IDEX V3 High-Temp. Source: Vision Miner.

Self-Leveling Build Platform at 200 °C

The print bed features three Z motors enabling true automatic leveling, eliminating the need for manual calibration. In addition, the system includes dynamic mesh leveling with over 128 points, ensuring the extruder adapts to any surface variation. The four-motor XY gantry maintains precision and alignment automatically over time.

Video 3: The 22 IDEX V3 features a self-leveling build platform that requires no manual adjustments.

Heated Chamber Above 100 °C

The build environment reaches over 100 °C, essential for printing engineering polymers. Two thermistors control the chamber temperature, while auxiliary convection fans ensure a uniformly heated volume, resulting in parts with reliable and consistent mechanical properties.

Full Compatibility with Open Materials

With an open 1.75 mm extrusion system, the 22 IDEX V3 does not restrict the user to proprietary materials. Any market filament can be used, including certified materials such as FAR 25.853 and UL94 V0. This ensures total flexibility for projects requiring industrial and aerospace standards.

Precision Motion System

The printer is built on a solid steel frame that maintains stability even at high temperatures. It includes a motion system with linear rails, 12 mm Kevlar belts, Z-axis kinematic couplings, and an easily accessible belt-tensioning system. All this ensures precision, durability, and low maintenance.

Advanced Calibration and Automation

The 22 IDEX V3 integrates automatic XY head alignment, eliminating the need for repetitive manual calibrations. Its automatic XYZ calibration and self-leveling system ensure that each print starts at the exact height, delivering consistent results from the first layer.

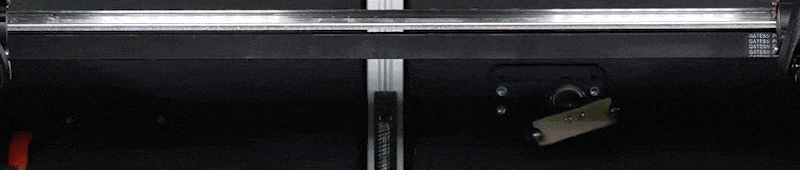

Advanced leveling mesh: over 128 measurement points to detect bed irregularities and ensure precise and automatic calibration in every print.

Video 4: The 22 IDEX V3 includes an advanced leveling mesh with over 128 measurement points to detect bed irregularities and ensure precise, automatic calibration in every print.

Fume Extraction and Production Safety

Equipped with standard connections for BOFA fume extractors with 2” hoses, the 22 IDEX surpasses the basic HEPA + activated carbon filters of other printers, ensuring safety in production environments. In addition, its automatic shutdown system protects against overheating, electrical failures, or thermal leaks. Solid-state relays and high-quality wiring reinforce its reliability for continuous operation.

High-End Components

It incorporates Bondtech LGX Pro dual-gear extruders on both hotends and Slice Engineering Copperhead hotends, renowned for consistent thermal flow and precision CNC machining. These components ensure stable extrusion even with ultra-complex materials like carbon-fiber-filled PEEK.

Software and Remote Control

The printer uses open RepRap firmware on Duet 3, offering compatibility with any slicer on the market. It includes preconfigured profiles for PrusaSlicer with high-performance materials such as PEEK, carbon-fiber nylon, or PCTG, though users can always choose their preferred software. Control is available via computers, tablets, or smartphones through the integrated web interface, with Ethernet and modular WiFi included.

Conclusion

The 22 IDEX V3 High-Temp is a production-ready industrial 3D printer equipped to handle any technical polymer on the market, from PLA to PEEK. Its combination of dual 500 °C extrusion, 200 °C self-leveling platform, 100 °C heated chamber, precision motion system, and advanced automation make it the ultimate tool for high-end additive manufacturing in automotive, medical, engineering, and aerospace industries.

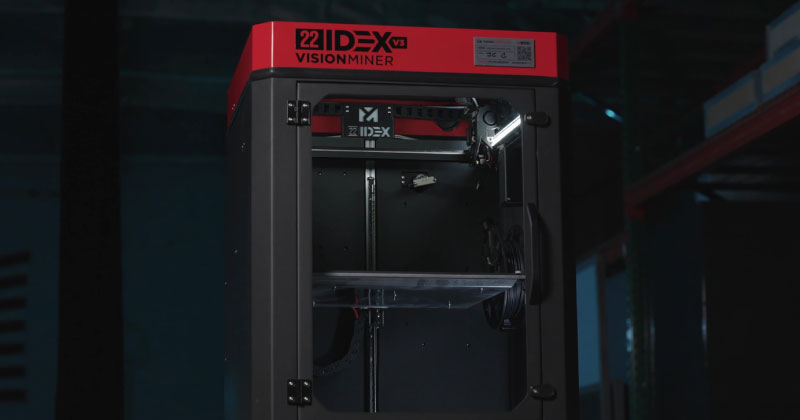

22 IDEX V3 High-Temp industrial printer. Source: Vision Miner

Photo 3: 22 IDEX V3 High-Temp industrial printer. Source: Vision Miner

General information

Manufacturer VisionMiner
Certificates CE

Printer properties

Filament diameter 1.75 mm
Print volume 350 x 350 x 450 mm
Number of extruders 2
Nozzle diameter 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Firmware Duet 3
End of filament sensor
Printing surface Removable
Self-leveling
Air filter BOPA (optional)
Extrusion system Direct
Nozzle clogging sensor
Compatible with third-party materials

Software and connectivity

Supported files Standard G-code, RepRap based
Connectivity WiFi | Ethernet | USB
WiFi connectivity
LAN/Ethernet connectivity

Electrical properties

Input 110V AC
Automatic resume after power failure

Printing properties

XY positioning resolution 10 µm
Z positioning resolution 7 µm
Maximum extrusion temperature 500 ºC
Maximum base temperature 250 ºC
Maximum chamber temperature 100 ºC
Ambient operating temperature 18 - 30 ºC
Maximum print speed 500 mm/s

Dimensions and weight

Dimensions 535 x 568 x 739 mm
Weight 90.7 Kg
Package dimensions 686 x 660 x 940 mm
Package weight 100 Kg

Other

HS Code 8477.5900

Featured properties

Print volume
350 x 350 x 450 mm
Maximum print speed
500 mm/s
Maximum extrusion temperature
500 ºC
Maximum base temperature
250 ºC
Air filtration system
HEPA + active carbon
Maximum heated chamber temperature
100 ºC
Nº extruders
2 (IDEX)
