NonOilen

Diameter: 1.75 mm

Format: Spool 1 Kg

Colour: Natural

Cantidad:

33.05 €

Colour:

Natural

Ginger Shot

Red Sunset

Dark Stone

Artic Blue

Whispering Grass

Confirmar

NonOilen is a new filament developed by Fillamentum in collaboration with the Slovak Technical University. NonOilen is a revolutionary material, which stands out for its good properties and has been developed with the aim of having a lower environmental impact than other filaments.

NonOilen is a 100% bio-based material, developed from polymers from renewable sources. The raw material of this material contains polylactic acid (PLA), polyhydroxybutyrate (PHB) and other components. Due to this composition, this filament is fully biodegradable.

A material or product is said to be biodegradable when it can be broken down by the action of natural microorganisms such as bacteria, fungi, etc. over time. Industrial composting plants are usually more controlled than natural environments, and have the ideal pressure and temperature conditions for these materials to degrade in the shortest possible time.

Image 1: 3D printed part with Nonoilen. Source: Fillamentum.

In the case of NonOilen filament, this material is biodegradable in industrial composting plants. The material remains stable during use and can be stored for a long time, as it only decomposes in a biologically active environment.

In addition, NonOilen can be recycled many times with little loss of properties. This means that the source of input materials can be reduced and the material itself can be reused.

Process of use of Nonoilen

Image 2: Process of using the Nonoilen filament. Source: Fillamentum.

NonOilen filament is the only bioplastic on the market that, despite not containing synthetic polymers derived from petroleum, has high strength. This material has mechanical properties similar to PE, PP, Nylon and other filaments suitable for prototyping and manufacturing of end products for the industrial sector. NonOilen can be used in the manufacture of electrical and electronic equipment.

In addition to its mechanical properties, NonOilen filament is suitable for contact with food, and is also dishwasher safe. To ensure that the final product meets the requirements, it must undergo testing in accordance with relevant regulations. These regulations define the testing conditions, which are based on the intended use of the printed object (e.g., temperature, duration of contact, type of food). These properties are very different from other biodegradable filaments on the market, and allow parts made with NonOilen to be reused several times.

Video 1: NonOilen. Source: Fillamentum.

In the development of the product, Fillamentum has taken into account every detail to minimise the environmental impact, from the material to the packaging. The NonOilen spool can be recycled and is made from recycled PP, which has a specific grey colour to be easily recognised in the sorting line and ensures good separation of waste. The box containing the spool is also made of recycled cardboard.

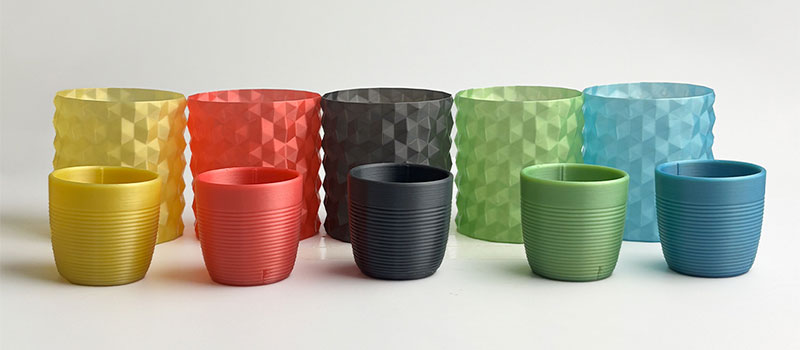

3D printed parts in the NonOilen color range

Image 2: 3D printed parts in the NonOilen color range. Source: Fillamentum

General information
Material	PLA
Format	50 g / 1 kg
Density	(ISO 1183) 1.20 g/cm³
Filament diameter	1.75 / 2.85 mm
Filament tolerance	± 0.05 mm
Filament length	(Ø 1.75 mm - 750 g) ± 250 m / (Ø 2.85 mm - 750 g) ± 98 m

Printing properties
Printing temperature	175 - 195 ºC
Print bed temperature	0 - 50 ºC
Chamber temperature	✗
Cooling fan	✗
Recommended printing speed	20-50 mm/s

Mechanical properties
Charpy impact strength	(ISO 179) 2.4 KJ/m²
Elongation at break	(ISO 527) 7.7 %
Tensile strength	(ISO 527) 38.6 MPa
Tensile modulus	(ISO 527) 1900 MPa
Flexural strength	- MPa
Flexural modulus	- MPa
Surface hardness	(ISO 868) Shore 71 D

Thermal properties
Softening temperature	(ISO 306) 150 ºC

Specific properties
Transparency	-

Other
HS Code	3916.9
Spool diameter (outer)	200 mm
Spool diameter (inner hole)	55 mm
Spool width	50 mm

This material is based on two components: PLA and PHB. Therefore, it has a similar processing as standard PLA filament. It is recommended to print NonOilen at a temperature between 175 - 195 °C. Like PLA, this material does not require the use of a hot bed. However, if available, it can be used at a temperature of up to 50°C to improve adhesion to the substrate.

NonOilen has a high adhesion to the base, which may cause damage to the printing base when removing the printed parts. To avoid damage to the 3D printing equipment, it is recommended to use an adhesive such as 3DLac to create a film that separates the build plate from the part without compromising adhesion.

To test the chemical resistance of NonOilen to a specific substance, it is recommended to test on a small part 3D printed with NonOilen.

For more information about the use of NonOilen, it is recommended to download the Printing Guide in the "downloads" section.
