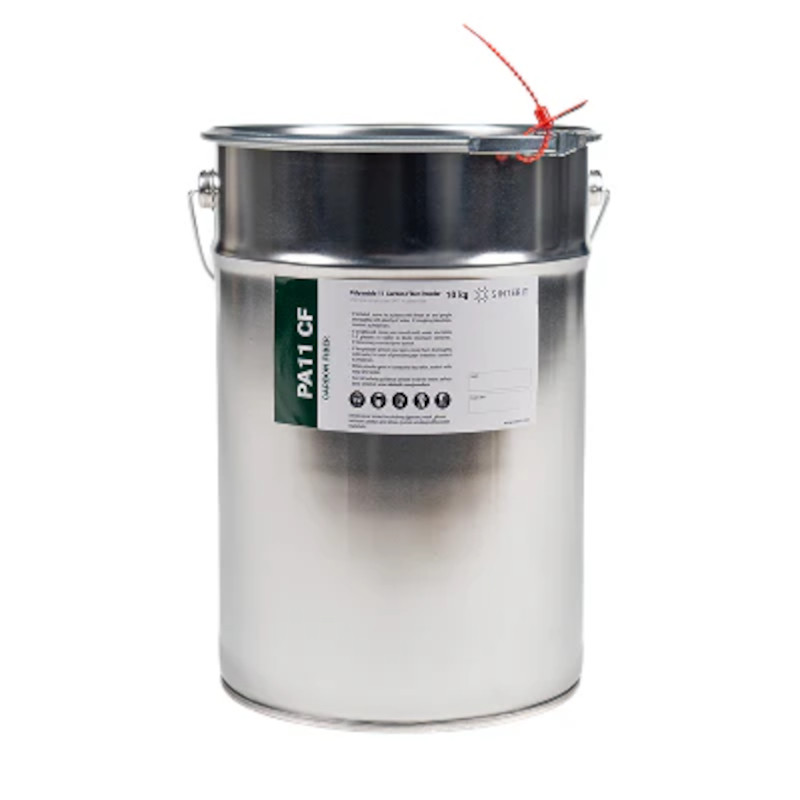

PA11 CF (Carbon Fibre) - SLS Printing Powder

Ref.: SINTERIT-PA11CF-6KG

594.00 €

Tax excl.

Size

Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 10 - 14 days Available for shipment within 10 - 14 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Thursday 16 January - Wednesday 22 January

Available

Returns

Ask about this product

Sinterit is a Polish manufacturer recognised as a pioneer in the development of affordable SLS 3D printing solutions. In addition to a complete range of equipment, both compact and industrial, it also has the widest range of optimised materials in its segment.

Sinterit equipment range

Image 1: Sinterit's range of equipment. Source: Sinterit

In addition to excellent materials for general applications such as PA12 Smooth, PA11 Onyx or Flexa Grey TPU, Sinterit has developed many materials for special applications such as polypropylene or Flexa Soft and Flexa Bright TPUs.

Sinterit powders

Image 2: Sinterit general purpose powders. Source:Sinterit

PA11 CF is a material for high performance applications. It is a material based on PA11 Onyx, additive with short carbon fibre to improve mechanical strength in tensile and bending, as well as to provide parts with increased stiffness.

It has one of the best strength-to-weight ratios among SLS 3D printing materials, making it also one of the most versatile and high-strength materials available for SLS 3D printing.

Comparison

Image 3: Comparison with other technical plastics. Source: Sinterit.

PA11 CF almost doubles the tensile strength (81 MPa vs. 48 MPa) and flexural strength (100 MPa vs. 62 MPa) compared to PA11 Onyx. It also has a higher stiffness, with an elongation at break of 24%.

Comparison

Image 4: Comparison with base metals. Source: Sinterit

Thanks to these excellent mechanical properties, Sinterit's carbon fibre reinforced PA11 is a viable alternative to aluminium and engineering plastics in many applications. It is widely used in the aerospace and automotive sectors.

Propeller made of PA11 CF

Image 5: Propeller made of PA11 CF. Source Sinterit.

PA11 CF is the highest performing material so far in the Sinterit range and one of the best available for SLS 3D printing.

General information
Manufacturer	Sinterit
Material	PA CF
Format	6 Kg
Technology	SLS
Average granulation	- µm
Material refreshing ratio	40 %
Compatible 3D printers	Lisa Pro, Lisa X, Nils 480

Mechanical properties
Izod impact strength	- KJ/m²
Charpy impact strength	(179) 113 KJ/m²
Elongation at break	(ISO 527) 24 %
Tensile strength	(ISO 527) 81 MPa
Tensile modulus	(ISO 527) 2950 MPa
Flexural strength	(ISO 178) 100 MPa
Flexural modulus	(ISO 178) 3050 MPa
Surface hardness	(ISO 868) Shore 81 D

Thermal properties
Melting temperature	197 ºC
Softening temperature	191 ºC
Heat deflexion temperature	(PN-EN ISO 75-2:2013-06) 170 ºC

Other
HS Code	3908.1

Like PA11 Onyx and PA11 ESD, PA11 CF requires the use of nitrogen during printing. Likewise, a Sinterit Studio Advanced Software licence is required to use this material.

PA11 CF is sensitive to moisture, so it must be stored properly in a dry environment. In the event of moisture pick-up, it can be dried at 100°C for 6h. Depending on the degree of humidity or the length of time stored in poor conditions, the material may not recover its original properties.

After each use, the material needs to be refreshed by 40 %.
