CreatBot Nozzles

Ref.: NZL-CREATBOT-040-D600.D1000

19.00 €

Tax excl.

Compatibility

Diameter

Diameter Nozzle

Material

Quantity

In stock 7 units available for immediate shipping.
units available for shipping in 6 - 7 days Available for shipment within 6 - 7 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Thursday 22 January

Returns

Ask about this product

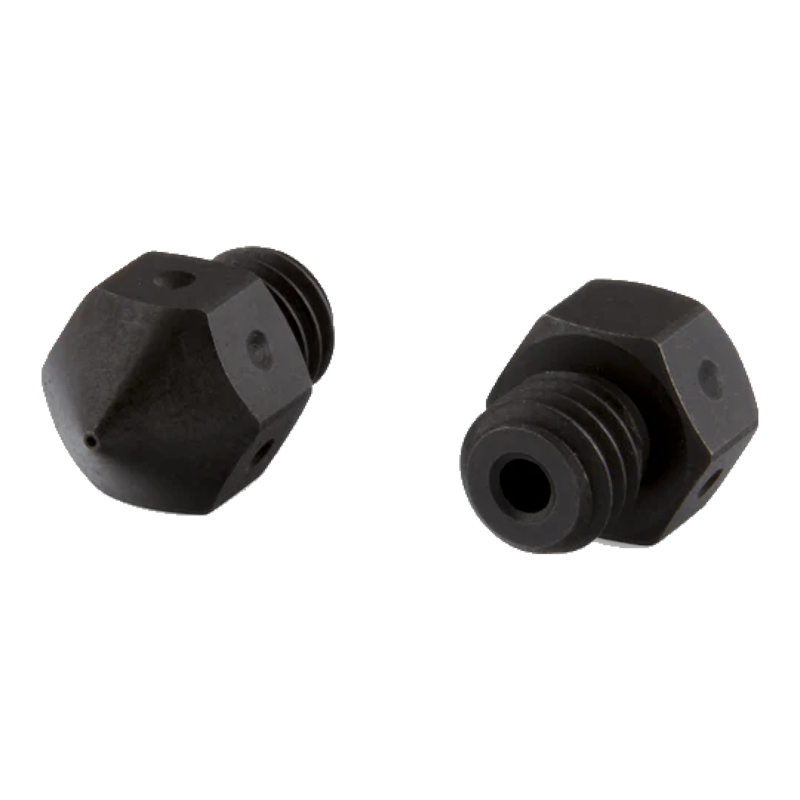

Original hardened steel nozzles from CreatBot. Designed to deliver superior performance in demanding industrial environments. Compatible with the CreatBot D600 Pro 2 HS, D1000 HS, PEEK-250, PEEK-300 and F430 NX printers, these nozzles are ideal for printing technical and abrasive materials such as PEEK, PEI, carbon fiber, and other reinforced composites.

Key features:

High wear resistance: Made from hardened steel, these nozzles withstand temperatures up to 500 °C, making them suitable for printing high-performance materials.
Variety of diameters: Available in sizes ranging from 0.30 mm to 1 mm, accommodating various printing needs from fine details to large-volume parts.
Modular design: Enables quick and easy replacement, minimizing downtime and maintaining production efficiency.

General information
Manufacturer	CreatBot
Filament diameter	1.75 mm
Nozzle diameter	0.3 mm, 0.4 mm, 0.6 mm, 0.8 mm, 1 mm
Nozzle material	Hardened Steel
Compatibility	CreatBot F430 NX / PEEK-250 / PEEK-300 / D600 Pro 2 HS / D1000 HS

Other
HS Code	8477.9

Nozzles for CreatBot printers are a critical spare part that directly affects print quality, detail control, and durability when working with materials from PLA to high-performance technical polymers like PEEK or reinforced composites. In industrial or professional environments, the correct choice of nozzle material and diameter maximizes efficiency and reliability.

The CreatBot PEEK‑300 and other CreatBot printers allow swapping nozzles with different diameters and materials to optimize results according to filament type and part geometry.

Spare part compatibility: use nozzles specifically designed for CreatBot printers or with compatible threads and specifications (M6 diameter, 1.75 mm filament) to ensure thermal alignment and a tight seal.

Nozzle material selection: for printing technical or abrasive composite materials (carbon fiber, reinforced PEEK), hardened steel is recommended for its higher wear resistance and thermal stability in ranges up to ~500 °C.

Diameter by application: smaller nozzles (0.3 mm–0.4 mm) offer higher detail but lower extrusion speed; larger diameters (0.6 mm–1.0 mm) increase extrusion speed and robustness for large parts or more demanding materials.

Maintenance and cleaning: clean the nozzle with appropriate tools or using a “cold pull” routine to prevent blockages; if printing with fibers or hard additives, check the nozzle wear periodically.

Calibration after replacement: after changing the nozzle, recalibrate retractions and flow parameters in the slicer to compensate for diameter variations and ensure proper retraction.

Installation at proper temperature: heat the hotend to the set printing temperature before removing or installing a nozzle to reduce the risk of thread damage or thermal leaks.
