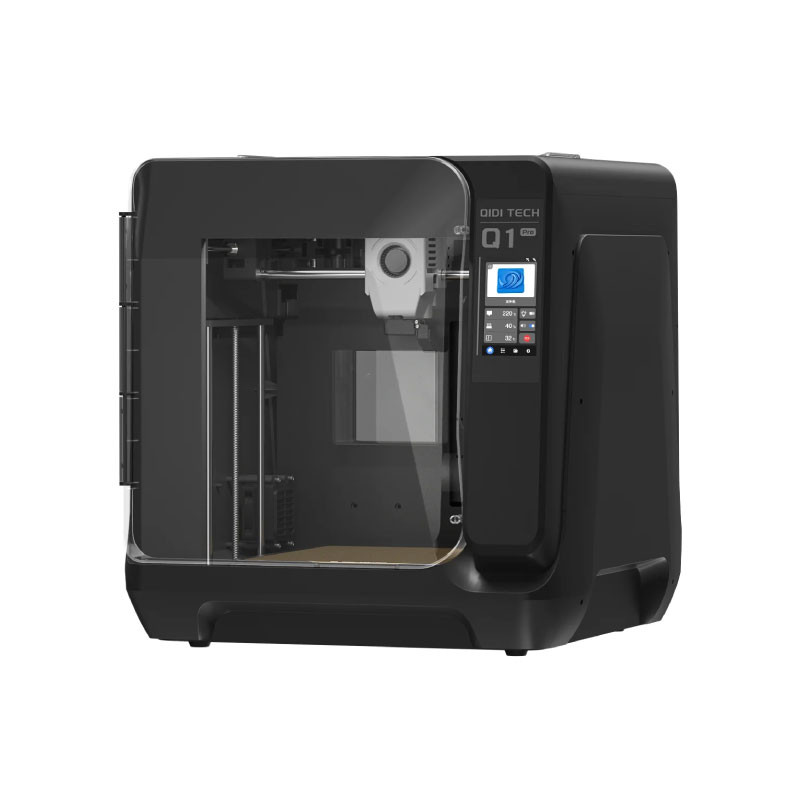

QIDI Tech Q1 Pro - FDM 3D Printer

The Qidi Tech Q1 Pro is an advanced 3D printer designed to offer high precision, speed, and compatibility with technical materials. Equipped with fully automatic calibration, an actively heated chamber, and a robust all-metal frame, this printer guarantees high-quality prints from the first use. With a build volume of 245 x 245 x 240 mm, it’s ideal for users seeking reliability and performance.

Video 1: Introduction to the Q1 Pro by Qidi Tech. This device ensures high-quality 3D printing.

Compatible with high-temperature engineering filaments

Thanks to its tri-metal hotend and nozzle that reaches up to 350 °C, this Qidi Tech printer allows working with engineering filaments such as PAHT-CF, PET-CF, PA12-CF, ABS-GF25 or PC/ABS-FR. The actively heated chamber, with a maximum temperature of 60 °C, reduces warping and improves layer adhesion, especially when printing warp-prone materials such as ABS, PC or composite filaments requiring special attention such as carbon fiber reinforced nylon.

Photo 2: The Q1 Pro filament printer features a 350ºC hotend, actively heated chamber, and dual Z motors. Source: Qidi Tech

Automatic calibration and independent dual Z motor

The dual-sensor auto-leveling system, together with the automatic Z-offset adjustment and the innovative nozzle cleaning system, eliminates leveling errors and ensures a perfect first layer every time. Additionally, the two independent Z motors, without the need for belts, provide greater stability and precision even on complex prints.

Video 2: Automatic bed leveling with dual sensor. Source: Qidi Tech

Reinforced metal structure and lightweight CoreXY technology

Built with a fully metal frame and reinforced base, the Q1 Pro 3D printer offers a solid platform for consistent prints. The optimized CoreXY system enables ultra-fast accelerations without compromising precision, while TMC2240 drivers with SpreadCycle technology reduce vibrations, energy consumption, and heat generation.

Video 3: The FDM Q1 Pro printer delivers perfect surface finishes on 3D parts.

Klipper electronics, Wi-Fi 6 connectivity, and remote control

Equipped with a powerful 64-bit processor, 32 GB internal memory, and Wi-Fi 6 connectivity, this filament 3D printer includes the Klipper firmware and offers extensive expandability thanks to its open-source nature. The built-in 1080P camera enables high-quality timelapses and remote monitoring of every print via Qidi's mobile app, allowing easy management from anywhere.

Smart filament detection and quick start-up

The advanced detection system identifies both filament absence and tangling, preventing failed prints and reducing material waste. Its "plug & play" design allows users to start printing in just 10 minutes thanks to automatic calibration and ease of use from first power-up.

Photo 3: The actively heated chamber reduces effects like warping, ensures better layer adhesion and greater stability during 3D printing. Source: Qidi Tech

Qidi Tech Q1 Pro: the 3D printer for technical materials and high performance

The Qidi Tech Q1 Pro is a high-performance 3D printer, ideal for users seeking industrial quality with user-friendly operation. Thanks to its optimized CoreXY system, Klipper firmware, Wi-Fi 6 connectivity, high-temperature hotend, and actively heated chamber, this 3D printer enables seamless printing with technical filaments such as carbon fiber nylon, PET-CF, or ABS-GF25. Its automatic calibration, smart filament detection, and integrated webcam for remote monitoring ensure a fast, precise, and failure-free 3D printing experience. A robust and versatile option for advanced 3D printing in professional, educational, or industrial environments.

Video 4: Assembly and setup of the Qidi Tech Q1 Pro filament printer.
