IND402 resin - Loctite 3D

RS-LOC-IND402-A70-BLACK-1KG
250.00 € 250.00 €
Tax excl.
Format
Colour
Quantity

In stock 7 units available for immediate shipping.
units available for shipping in 5 - 7 days Available for shipment within 5 - 7 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Wednesday 16 October
Available

The IND402 A70 High Rebound resin from the Loctite family of elastomeric resins is a single component elastomer material characterized by high elongation at break (230 %), high resilience, and excellent interlayer adhesion. Parts 3D printed with this resin maintain excellent tensile strength, offer a high energy return (33 %), and do not require thermal post processing.

The IND402 A70 High Rebound resin is the perfect material for the additive manufacturing of lattice structures, especially for sportswear (mid soles and soft inserts), as well as other consumer products. Parts 3D printed with this resin can also be used in industrial and automotive applications.

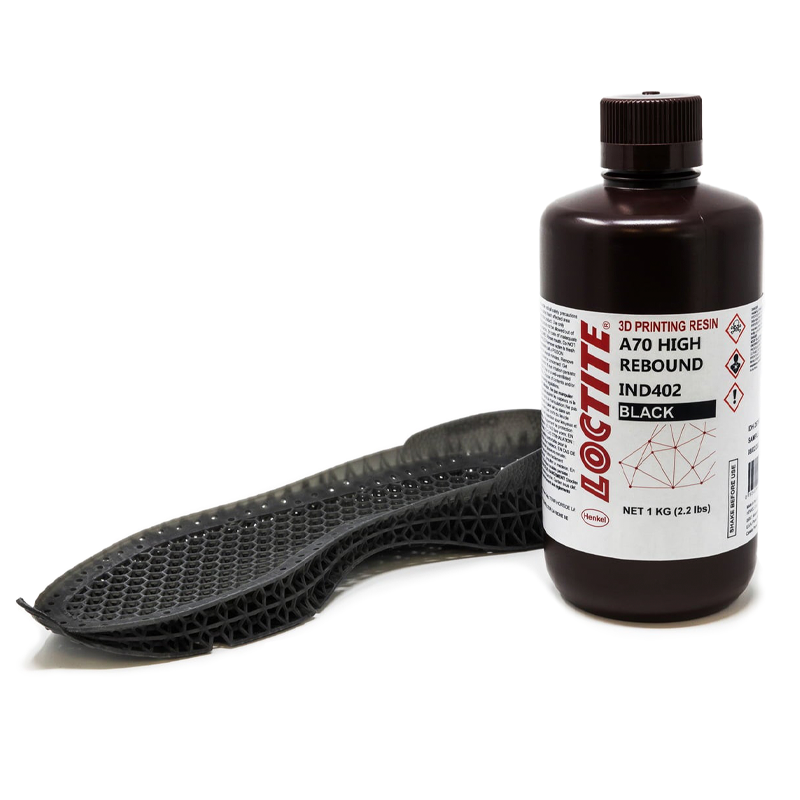

A shoe insole 3D printed with the Loctite IND402 A70 High Rebound resin

Image 1: A shoe insole 3D printed with the Loctite IND402 A70 High Rebound resin. Source: Loctite.

The IND402 A70 High Rebound resin has been formulated to print optimally on industrial DLP printers. Before printing with this material, the user should read safety and technical information available in the Downloads section. In the Usage Tips section useful resources can be found on printer compatibility, recommended post-processing settings, and proper resin storage.

Curing, washing, and sintering properties
Washing time 2 min
Curing time 2 - 5 min

General information
Manufacturer Loctite
Material Photopolymer
Format 1 kg / 5 kg
Technology DLP/LCD
Wavelength - nm
Viscosity @ 25 ºC: 14500 cP / @ 35 ºC: 8400 cP / @ 40 ºC: 6000 cP
Density (solid) (ASTM D1475) 1.1 g/cm³
Density (liquid) 1.0439 g/cm³

Printing properties
Layer height - µm
Layer exposure time -
Layer off time -
Lifting height - mm
Bottom layer exposure -
Bottom layer count -

Mechanical properties
Izod impact strength - KJ/m²
Charpy impact strength - KJ/m²
Elongation at break (ASTM D638) 230 %
Tensile strength (ASTM D638) 6 MPa
Tensile modulus (ASTM D638) 42 MPa
Flexural strength - MPa
Flexural modulus - MPa
Surface hardness (ASTM D638) Shore 76 A

Thermal properties
Softening temperature - ºC
Glass transition temperature (ASTM E1356) -66 ºC ºC
Thermal expansion coefficient (ISO 11359-2) -40 - 40 ºC: 187.1 µm/(m·K)

Specific properties
Maximum water absorption (ASTM D570) 24 h: 3.15 %

Other
HS Code 2916.1
Lifetime (since manufacturing) - M

On the Henkel YouTube channel, various videos are available on:

  1. How to work with 3D printing resins:

    Video 1: The basics of printing with resin. Source: Henkel.
  2. How to properly store 3D printing resins:

    Video 2: How to properly store resins. Source: Henkel.
  3. How to post-process parts 3D printed with resin:

    Video 3: Resin post-processing tips. Source: Henkel.

The material's technical and safety datasheets can be found in the Downloads section. On the manufacturer's website the user can find the printer validation information as well as the recommended printing and postprocessing settings.
