Sharebot E42 - Impresora 3D View larger

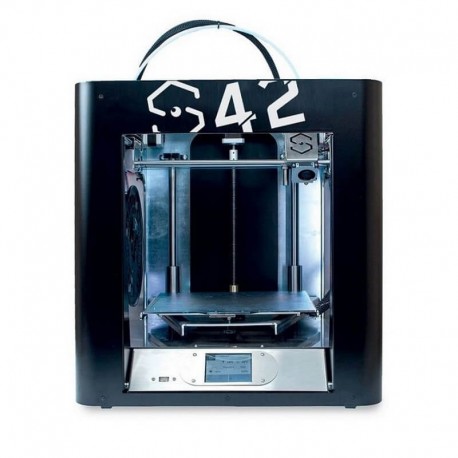

Sharebot 42 - 3D Printer

SHAREBOT42

Sharebot

This product could be delivered in a period exceeding the standard.

New product

2 995,00 €
2 995,00 €

Ask for information

3D printer ideal for professional users who demand high precision and high speed.

Sharebot 42 is a 3D printer designed for professionals who want to combine high precision and speed. The main novelties that incorporate this 3D printer from Sharebot are its flexible and magnetic platform system that allow to comfortably remove the prints of the base, as well as advances in user experience such as wireless connectivity and remote management through a interface for PC, Tablet and Smartphone. Also incorporate a video camera with internet connection for the user to follow the online printing process.

Another of the advances that incorporate the 3D printer Sharebot 42 is its automatic self-calibration system that allows to adjust in less than 15 seconds the height of the platform base. The extruder incorporates a filament sensor that paralyzes the printing and filament of the coil.

Sharebot 42 3D printer allows easy exchange of nozzles (0.3, 0.4, 0.6, 0.8) depending on the type of material, thus providing better print quality. On the other hand, its printing area is 250x200x200mm and the maximum printing speed of 24mm3 /s with a layer thickness of 0.05mm (Maximum printing resolution).

This Sharebot 3D printer is completely assembled and is Plug & Play !,  it is only necessary to unpack it, remove the protection elements, place the printing base, load the file and start printing in 3D. Connect with a 3.2 " touch screen on which the user can manage their prints.

It is a very versatile 3D printer so it reaches up to 280 °C extrusion and up to 90 ° C bed. While the bed temperature is a bit fair to print filaments like ABS, you can get to print. The delivery time from the confirmation of the order can vary between 2 and 5 weeks.

In the following videos you can observe the main tips of use of the printer Sharebot 42:

  • Removing Sharebot42 packaging:

  • Installation:

  • Printing plate autocalibration system (link)
  • Remote management (link)
  • Interchangeable nozzles (link)
  • Easy detach system:

ModelSharebot 42
Manufacturer Sharebot (Italy)
Technology FDM/FFF
Certificates -
Printer properties
Print volume 250 x 200 x 200 mm
Extruders  1
Filament diameter
Nozzle diameter available 0.4 - 0.8 mm
Screen 3.2 "LCD touch screen
Electronics -
Firmware -
Filament sensor Yes
Nozzle clog sensor Yes
Autolevel Yes
Webcam Yes
Print properties
Positioning resolution (XY) -
Positioning resolution (Z) 50 µm
Layer height 0,05 mm
Max print speed 24 mm3/s
Max extruder temperature 280ºC
Max base temperature 90°C
Max camera temperature -
Working environment temperature 15ºC - 35ºC
Software and conectivity
Software -
Compatible files stl, gcode
Conectivity LAN
Electrical properties
Input -
Output -
Consumption -
Dimesions and weight
Printer dimensions 450 x 420 x 470 mm
Printer weight 38 kg
HS Code 8477.5900
