ABS Support – Bambu Lab

Ref.: BL-SUP-ABS-WHITE-175-500G

14.04 €

Tax excl.

Diameter

Format

Colour

Quantity

In stock -3 units available for immediate shipping.
units available for shipping in 0 - 0 days Available for shipment within 0 - 0 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Out of Stock

Returns

Ask about this product

The ABS support from Bambu Lab is the ideal solution for high-temperature ABS 3D printing, delivering precise results in prototypes, functional parts, and advanced models. This support filament ensures perfect adhesion to the main material and effortless support removal, optimizing workflow and significantly reducing post-processing time.

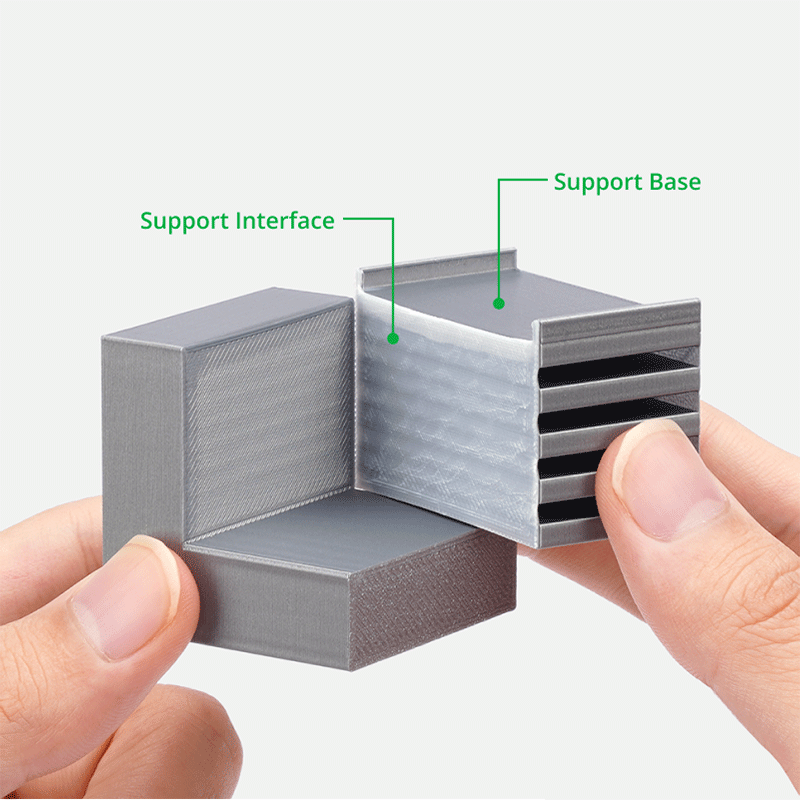

ABS support filament provides a smooth support surface and reduces post-processing time.

Photo 1: ABS support filament provides a smooth support surface and reduces post-processing time. Source: Bambu Lab

Superior Interface Finish

With a high-quality support interface, this material allows zero Z distance and zero interface spacing, ensuring contact surfaces are free of marks. This feature enhances detail and structural integrity, guaranteeing high-precision 3D prints for industrial and advanced design applications.

Compatibility and Smart Technology

The support comes on a high-temperature reusable spool with a 1.75 mm ±0.05 mm diameter, ensuring consistent feeding and compatibility with AMS (Automatic Material System). Integrated RFID for smart printing allows automatic setup of all print parameters, eliminating manual adjustments and ensuring reliable, repeatable results.

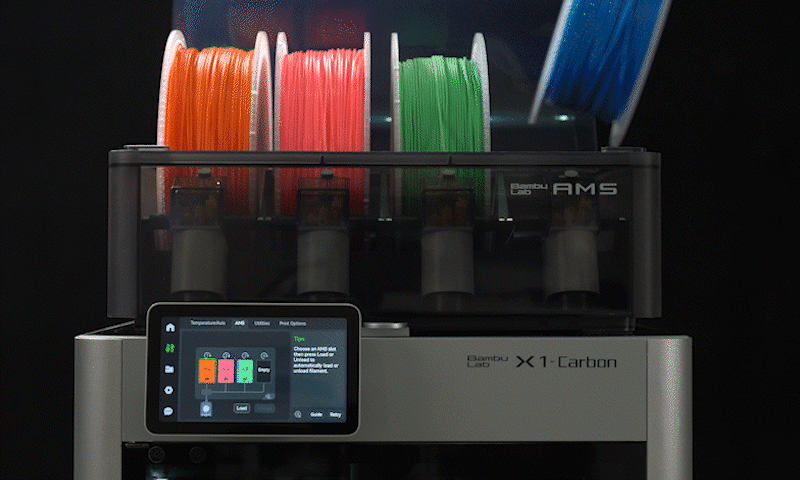

ABS support filament is compatible with the AMS multi-material system.

Video 1: ABS support filament is compatible with the AMS multi-material system. Source: Bambu Lab

Printing Safety and Reliability

Compatible with enclosed printers and complete AMS systems, this support material provides a safe, controlled printing environment. Its advanced formulation allows optional pre-drying, ensuring greater reliability and dimensional stability during high-performance ABS printing.

Efficiency and Productivity in Every Print

Bambu Lab ABS support combines easy removal, impeccable interface finish, and smart printing technology, optimizing every step of the 3D workflow. This advanced solution enhances efficiency, ensures professional results, and maximizes productivity in industrial 3D printing, functional prototyping, and technical part production.

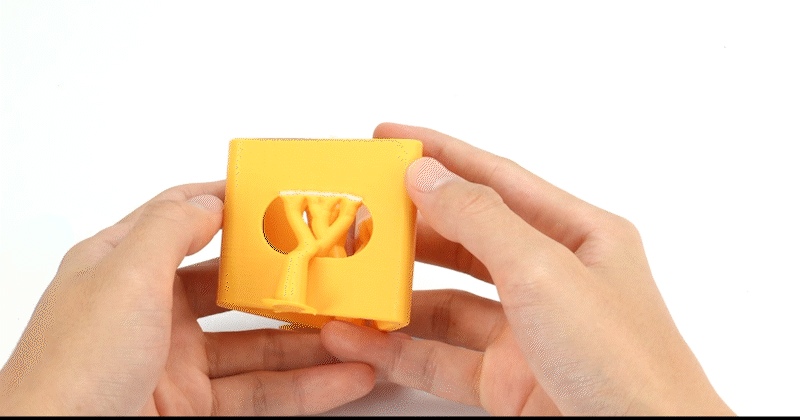

ABS support material is easily removed from 3D prints.

Video 2: ABS support material is easily removed from 3D prints. Source: Bambu Lab

General information
Material	Support material
Format	500 g
Density	(ISO 1183) 1.16 g/cm³
Filament diameter	1.75 mm
Filament tolerance	± 0.05 mm
Filament length	179.2 m

Mechanical properties
Charpy impact strength	(ISO 179) N/A KJ/m²
Tensile strength	- MPa
Tensile modulus	- MPa
Flexural strength	- MPa
Flexural modulus	- MPa

Printing properties
Printing temperature	240 - 270 ºC
Print bed temperature	80 - 100 ºC
Cooling fan	✓
Recommended printing speed	< 100 mm/s

Thermal properties
Softening temperature	195 ºC

Other
HS Code	3916.9
Spool diameter (outer)	200 mm
Spool width	67 mm

The ABS support is specifically designed to create support structures during 3D printing with ABS. Its formulation allows precise adhesion to the main material and easy support removal, ensuring clean prints and optimizing workflow for prototyping and functional part manufacturing projects.

For optimal results, the filament can be pre-dried at 80 °C for 4 hours in a dryer. Maintaining relative humidity below 20% during storage helps preserve the material’s quality and consistency, ensuring stable performance in every print.

It is recommended to use 3D printers with enclosed chambers to maintain a constant temperature and ensure proper support adhesion. The material is fully compatible with complete AMS systems, enabling automated and reliable printing, although it is not compatible with AMS Lite.

Recommended nozzles include hotends with hardened steel nozzles of 0.4 mm, 0.6 mm, or 0.8 mm and 0.4 mm stainless steel nozzles. 0.2 mm nozzles are not recommended as they may affect support precision and adhesion. The hotend temperature should be kept between 240 °C and 270 °C, while the bed temperature should be between 80 °C and 100 °C, using adhesives such as liquid glue to improve print stability.

It is advisable to print at speeds below 100 mm/s to properly control material flow and prevent support deformation. Smooth or textured PEI build plates are highly recommended.

This support is water-insoluble and soluble in limonene, allowing clean and efficient removal after printing. Keeping the filament protected from moisture during the printing process ensures uniform results, high definition, and professional finishes on every printed part.
