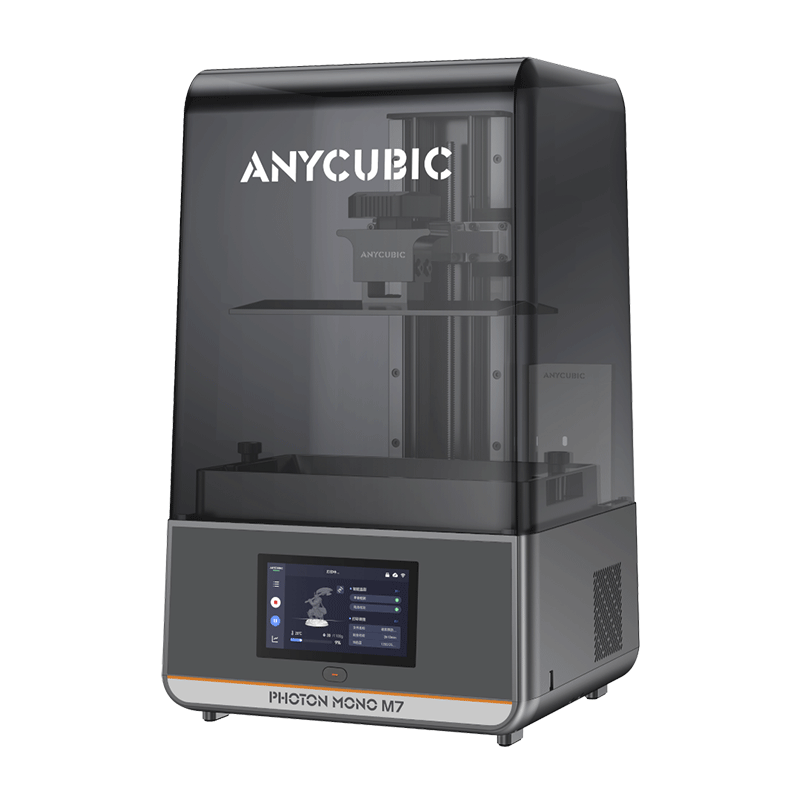

Anycubic Photon Mono M7 - LCD 3D Printer

Anycubic is a widely recognized 3D printer manufacturer, known for revolutionizing the industry with its innovative technology and cutting-edge design. Its focus on precision, speed, and ease of use has enabled creatives and professionals to take their ideas to the next level. Among its product range, the Photon Mono M7 stands out, a resin 3D printer that offers exceptional quality and advanced features. Additionally, the brand has expanded its lineup with models like the Photon Mono M7 Pro and the Photon Mono M7 Max, offering options with greater capabilities and technological improvements to meet the needs of a variety of users, from hobbyists to experts.

Video 1: Introduction to the Photon Mono M7 printer. Source: Anycubic.

Table 1: Comparison table for Photon Mono M7 Max, Photon Mono M7 Pro, and Photon Mono M7 models. Source: Anycubic.

With the Light Turbo 3.0 lighting system and its COB (LED cluster chip) light source, the Anycubic Photon Mono M7 delivers an impressive combination of detail and speed in every print. Smooth surfaces, sharp details, and flawless prints will amaze you with every project.

Image 1: Prints with smooth surfaces, sharp details, and flawless results in every project. Source: Anycubic.

Sleek and Elegant Design

The Photon Mono M7 stands out with its minimalist design featuring a OneBox casing with smooth lines and a geometric look. The gray and orange tones combine to capture attention, providing a modern and appealing aesthetic.

Image 2: The Photon Mono M7 offers a wide print volume. Source: Anycubic.

Build Volume that Encourages Creativity

With a build volume of 223 x 126 x 230 mm, the Photon Mono M7 provides ample space to push the boundaries of your projects and explore new ideas with complete freedom.

Light Turbo 3.0 Lighting System and 14K Screen

The Anycubic Photon Mono M7 incorporates an innovative Light Turbo 3.0 lighting system, paired with a high-resolution 14K display. This system enhances both the light source performance and the layer curing speed, offering higher quality prints in less time. The 10.1-inch screen has a resolution of 13312 x 5120 pixels, enabling prints with extreme precision and exceptional surface quality. With an XY pixel density of just 16.8 x 24.8 microns, it achieves fine details and higher definition in prints.

Image 3: The Anycubic Photon Mono M7 combines detail and speed thanks to its Light Turbo 3.0 lighting system and COB light source. Source: Anycubic.

COB Light Source with Front Reflectors and Fresnel Lenses

The Photon Mono M7 utilizes an advanced optical solution, combining a COB light source with front reflectors and Fresnel lenses. This system ensures a uniform light intensity with an angle of ≤ 3°, guaranteeing a light uniformity above 90%. Additionally, the light uniformity algorithm optimizes the light distribution across the entire screen, reducing precision errors to a range of ± 0.01-0.05 mm, maintaining consistency in print across the entire surface.

Image 4: The Anycubic Photon Mono M7 combines detail and speed thanks to its Light Turbo 3.0 lighting system and COB light source. Source: Anycubic.

Light-Off Compensation Algorithm and Dynamic Control

The system also includes a light-off compensation algorithm, which adjusts the light-off time according to the exposure area and resin flow. This ensures a successful exposure of each layer and facilitates its separation, improving the print success rate and ensuring more reliable results.

Automatic Leveling

Thanks to its automatic leveling system, the printer calibrates precisely without manual intervention, allowing you to start printing immediately.

Image 5: The printer is equipped with advanced monitoring systems and an efficient automatic leveling function to ensure precise and smooth prints. Source: Anycubic.

Intelligent Service Systems

The Photon Mono M7 is equipped with multiple intelligent assistance systems that ensure a smooth and trouble-free printing process. Some of these systems include:

Failed Print Detection

When issues such as layer gaps, base drops, or detachment occur during the printing process, the print is automatically paused, and a pop-up reminder is displayed, allowing timely adjustments to printing tasks and preventing waste of resin and time. (The detection of layer gaps and base drops supports a minimum area of 1515 mm.)

Image 6: Automatic print error detection and release film lifespan management. Source: AnyCubic.

Release Film Lifespan Management

Automatically monitors the number of times the release film peels off. When it reaches 45,000 cycles, the user is notified to replace it immediately, preventing future printing failures due to reduced film performance.

Image 7: Resin residue detection and resin level monitoring for a continuous printing flow. Source: Anycubic.

Residue Detection In The Resin Vat

Detects solid residues inside the resin vat and alerts the user with a pop-up notification to prevent damage to the screen due to oversights during manual inspection.

Resin Level Detection

When the resin level in the vat is lower than the required amount to start printing, the system reminds the user to refill it in a timely manner, ensuring uninterrupted printing.

Image 8: Automatic verification of platform status and essential component connections. Source: AnyCubic.

Platform Installation Status Detection

Quickly assesses the installation status of the platform. In case of abnormalities, a pop-up reminder prompts timely adjustments.

Component Connection Status Detection

Automatically verifies the status of components such as the release film and the automatic resin filling unit to ensure everything is functioning correctly.

Image 9: Real-time printing progress monitoring for precise adjustments during the process. Source: Anycubic.

Real-time Sensing Curves

Monitors the printing progress in real time, providing accurate and up-to-date information about the ongoing printing process. In addition to planning and tracking print progress from a computer, you can now also do so conveniently and practically from your mobile device using the Anycubic App.

Simplified Slicing Process

The slicing process is easy and efficient with the Photon Mono M7. It allows patterns to be cut and designs to be saved into files quickly, thanks to a special vector slicing algorithm. Additionally, the integrated multitasking management allows you to monitor multiple printers simultaneously, ensuring seamless project management. The Auto Repair function automatically fixes defects in files, ensuring successful prints.

Image 10: Printed parts with the Photon Mono M7 printer. Source: Anycubic.

In summary, the Anycubic Photon Mono M7 stands out as an innovative and advanced solution in the world of resin 3D printing. With its sleek design, 14K high-resolution screen, and intelligent assistance systems, this printer guarantees high-quality results and optimizes the user experience. Its automatic leveling system is one of its most attractive features. Whether for hobbyists or experts, the Photon Mono M7 offers a perfect balance of performance, precision, and ease of use.
