PLA FlameGuard Spectrum

SPEC-PLA.FG-MBLACK-175-250
10.49 € 10.49 €
Tax excl.
Diameter
Format
Colour
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 3 - 8 days
Available for shipment within 3 - 8 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Friday 24 January - Friday 31 January

The PLA FlameGuard is a groundbreaking filament created by Spectrum from the Floreon® Therma-Tech PLA formula, recognized for its innovation with the 2024 Plastics Industry Association Bioplastics Innovation Award. Engineered for applications requiring both durability and fire resistance, this filament offers exceptional high-temperature resistance and high crystallinity, ensuring robust performance in demanding environments.

Video 1: About the Spectrum filaments. Source: Spectrum.

FlameGuard PLA is a halogen-free, flame-retardant material that complies with the V0 fire safety standard, making it ideal for applications in electronics enclosures, automation device parts, furniture components, and speaker housings. This environmentally friendly alternative to traditional FR ABS eliminates the use of halogens, which are often harmful to recyclability and contribute to landfill waste. FlameGuard PLA supports a more sustainable approach, offering recyclability and a significantly lower environmental impact.

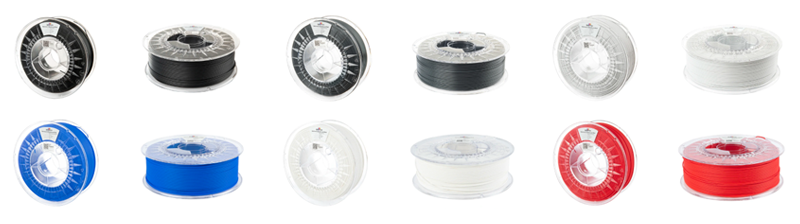

The PLA SafeGuard filament comes in vibrant colors for a wide range of applications

Image 1: The PLA SafeGuard filament comes in vibrant colors for a wide range of applications. Source: Spectrum.

With a carbon footprint up to seven times lower than standard FR ABS, FlameGuard PLA has a typical PCF of just 0.6 kg CO2 e/kg, compared to 3.8 kg CO2 e/kg for ABS FR, while retaining comparable physical properties such as modulus of elasticity and tensile strength. This makes Spectrum PLA FlameGuard an excellent choice for those seeking both high-performance and eco-conscious materials for advanced, fire-safe applications.

General information

Material PLA
Format 250 g / 1 kg
Density 1.26 g/cm³
Filament diameter 1.75 mm
Filament tolerance ± 0.03 mm
Filament length (Ø1.75 mm, 250 g) 82.5 m / (Ø1.75 mm, 1 kg) 330 m

Printing properties

Printing temperature 210-240 ºC
Print bed temperature 40-60 ºC
Chamber temperature
Cooling fan
Recommended printing speed 40-150 mm/s

Mechanical properties

Izod impact strength (ISO 180) 0.83 KJ/m²
Elongation at break - %
Tensile strength (ISO 527) 36.8 MPa
Tensile modulus (ISO 527) 2600 MPa
Flexural strength - MPa
Flexural modulus - MPa
Surface hardness -

Thermal properties

Softening temperature (DSC) 55-90 ºC

Specific properties

Flammability classification (UL94) V0

Other

HS Code 3916.9
Spool diameter (outer) (250 g) 140 mm / (1 kg) 200 mm mm
Spool diameter (inner hole) (250 g) 52 mm / (1 kg) 52 mm mm
Spool width (250 g) 44 mm / (1 kg) 67 mm mm

Once opened, the Spectrum filaments must be stored properly to prevent moisture absorption from the air. Filament is best stored in a hermetically sealed bag with desiccant, in a vacuum-sealed container or in a smart filament container. If the filament absorbs too much moisture, it should be dried in a filament dryer in accordance with the settings recommended for the material in question.

In order to avoid extrusion problems and obtain high quality parts with the Spectrum filaments, it is highly recommended to use the printing parameters (extrusion temperature, bed temperature, printing speed, fan settings) provided in each material's respective technical datasheet. It is also crucial to follow any other recommendations such as the use of an abrasion-resistant nozzle. The datasheets can be found in the Attachments section.

It is strongly recommended to use standard safety equipment during printing and post-processing of parts 3D printed with Spectrum filaments: safety goggles, gloves, breathing apparatus and protective clothing as required.
