colorFabb_XT

Ref.: COLFB-XT-BLACK-175-750

27.29 €

Tax excl.

Diameter

Format

Colour

Volume discounts

Quantity	Discount	Price
10	10% 10%	24.56 € 24.56 €
15	12% 12%	24.01 € 24.01 €

Quantity

In stock 3 units available for immediate shipping.
units available for shipping in 5 - 7 days Available for shipment within 5 - 7 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Monday 1 December

Returns

Ask about this product

The colorFabb_XT filament by colorFabb is a high-quality technical filament made of copolyester, based on the Eastman Chemical polymer Amphora AM1800. Available in many colours and formats, XT filament is ideal for engineering applications in projects ranging from functional machine parts to prototypes or precision components. Thanks to its styrene- and BPA-free formulation, XT filament meets EU and FDA requirements for food contact.

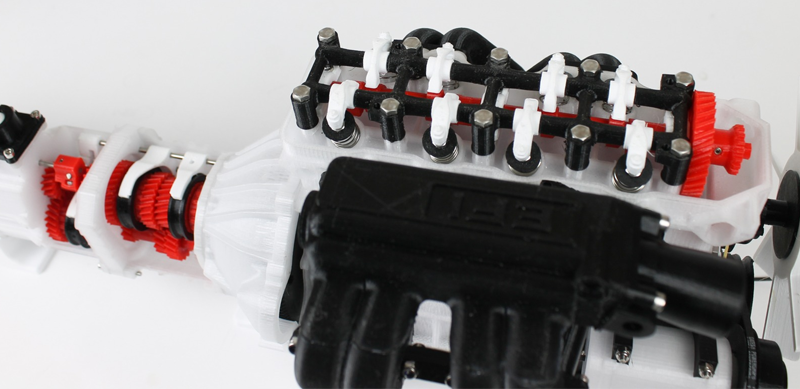

Image 1: Model of a Toyota engine printed with XT filament. Source: ColorFabb.

This filament’s translucent colour is characterised by the absence of colourant, giving parts made with this colour a crystalline transparency. Other colours include white, black, light grey, dark grey, green, and blue. Parts printed with ColorFabb’s XT filament not only stand out for their impressive visual appeal but also for their good layer adhesion and robustness and durability. XT filament also offers high impact resistance, high glass transition temperatures, and good chemical resistance. These characteristics are crucial for applications in hostile environments where parts must withstand mechanical stress, heat, and aggressive substances.

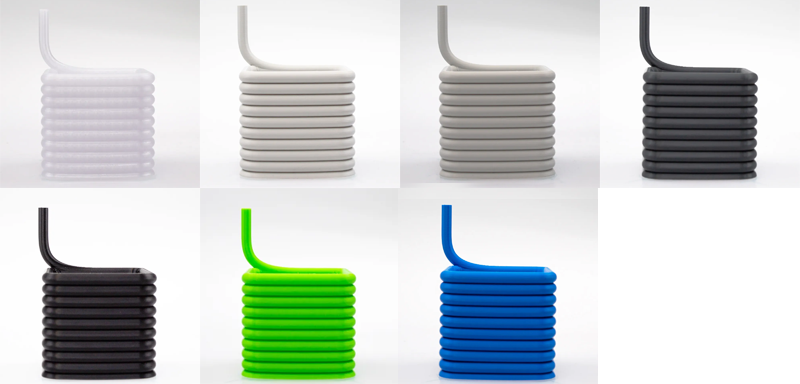

Image 2: Available colours of colorFabb_XT filament. Source: ColorFabb.

XT filament is distinguished by its ease of use, especially due to its minimal odour emission, making it suitable for use in smaller, less-ventilated spaces (although it is still recommended to use an air purifier such as Zimpure 2 to ensure optimal air quality). Moreover, XT filament does not require a closed chamber, enabling easy integration into various open configurations as long as a heated bed is available. This versatility, along with its ease of handling, makes XT an accessible option for a wide range of printing environments.

General information
Material	PETG
Format	750 g / 2.2 Kg
Density	1.27 g/cm³
Filament diameter	1.75 / 2.85 mm
Filament tolerance	± 0.05 mm
Filament length	(Ø 1.75 mm - 0.75 Kg) ± 245.5 m / (Ø 2.85 mm - 0.75 Kg) ± 92.6 m / (Ø 1.75 mm - 2.2 Kg) ± 720.2 m / (Ø 2.85 mm - 2.2 Kg) ± 271.5 m

Printing properties
Printing temperature	240 - 260 ºC
Print bed temperature	60 - 70 ºC
Chamber temperature	✗
Cooling fan	0 - 50 %
Recommended printing speed	40 - 70 mm/s

Mechanical properties
Charpy impact strength	(ISO 179) 5 KJ/m²
Elongation at break	(ISO 527) 6.2 %
Tensile strength	(ISO 527) 55 MPa
Tensile modulus	(ISO 527) 1850 MPa
Flexural strength	- MPa
Flexural modulus	- MPa
Surface hardness	7

Thermal properties
Softening temperature	(ISO 75) 65 ºC

Specific properties
Transparency	-
Chemical resistance	✓

Other
HS Code	3916.9
Spool diameter (outer)	- mm
Spool diameter (inner hole)	- mm
Spool width	- mm

To prevent moisture absorption, store XT in a dry, sealed plastic bag with a filament drying capsule or in an airtight container. Inline filament dryers are recommended during printing, and if needed, drying the filament before printing will ensure optimal print quality.

For optimal performance of the XT filament, colorFabb recommends using a printer with a heated bed (60-70 ºC). Once the part is printed, let the build plate cool down to 20-30 ºC before removing the part.

When it comes to the part cooling fan, to much cooling will reduce the XT filament's layer adhesion and lead to brittle parts. It is recommended to start with 50% cooling, observe the outcome and reduce cooling if necessary.

More technical and safety information on the XT filament can be found in the datasheets in the Attachments section. On the colorFabb website the user can also find a detailed guide on how to post-process parts 3D printed with copolyester filaments.
