Beambox II Laser Cutter

FLUX-BEAMBOX-2-BASIC
3,049.00 € 3,049.00 €
Tax excl.
Version
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 10 - 15 days
Available for shipment within 10 - 15 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Wednesday 10 December - Wednesday 17 December

Financing available through leasing or renting. More information

from 47.00 €/month
(tax not included)

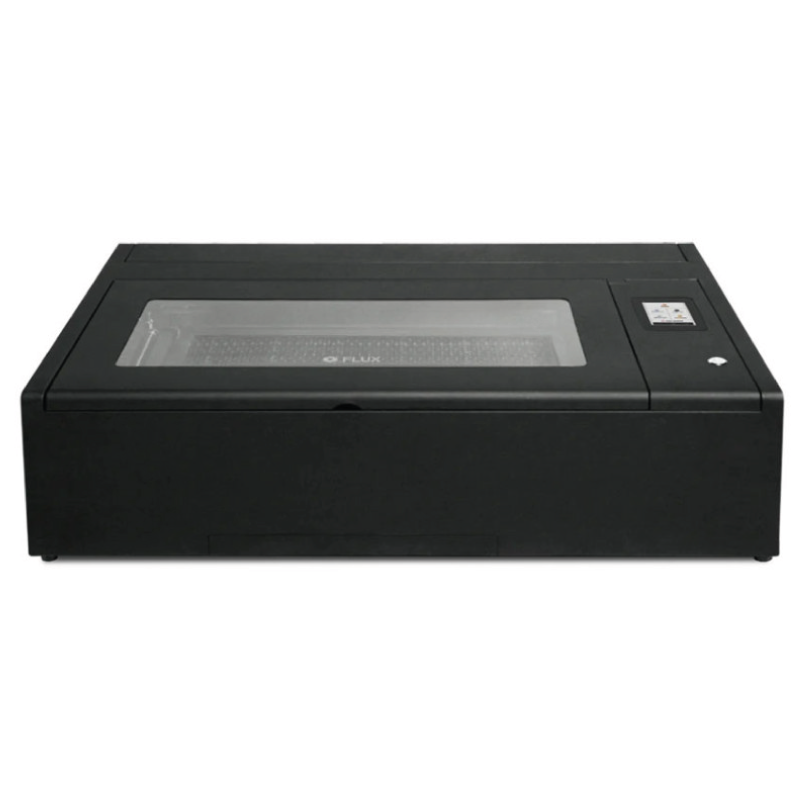

Beambox II is the second-generation CO₂ laser cutter from FLUX, engineered for high-precision engraving and cutting on wood, acrylic, leather, cardboard, and similar materials. Equipped with a 55W CO₂ laser, large working area, and smart automation features, the Beambox II delivers professional-quality results for both intricate designs and large-scale projects.

Video 1: Introduction to the Beambox II. Source: Flux

Industrial Cutting Power and High-Precision Engraving

The Beambox II features a 55W CO₂ laser capable of cutting up to 20 mm acrylic and 18 mm Japanese wood. With an engraving speed of up to 900 mm/s, it triples the performance of previous models, enabling fast, precise execution of complex patterns and large projects.

Compatible Materials and Cutting/Engraving Capabilities

The table below highlights materials compatible with the Beambox II and their cutting and engraving limits. Both the maximum cutting depth at standard and full 55W laser power and engraving compatibility are included.

Material Cutting Engraving
Standard Power Max Power
Black Walnut (Wood)¹ 0.43" (11mm) 0.59" (15mm)⁴
Cypress (Wood)¹ 0.59" (15mm) 0.71" (18mm)⁴
Plywood (Wood)¹ 0.43" (11mm) 0.55" (14mm)⁴
MDF (Wood)¹ 0.35" (9mm) 0.47" (12mm)⁴
Acrylic 0.59" (15mm) 0.79" (20mm)⁴
Cardboard² 0.39" (10mm)
Leather³ 0.24" (6mm)
Fabric³ 0.31" (8mm)
Bamboo 0.39" (10mm)
Cork
Rubber
Glass
Cement
Stone
Anodized Metal
Stainless Steel
(Requires Spray Paint)

Important Notes

  • Some materials may require multiple passes for effective cutting. Increasing speed or performing several passes can achieve deeper cuts.

  • ¹ Maximum cutting depth may decrease over time with CO₂ laser tube use. Wood cutting performance varies depending on moisture content and density.

  • ² Thick cardboard is highly flammable and should be cut with slight moisture to ensure safety.

  • ³ While high-power lasers can cut thicker leather and fabrics, maximum specified thickness is recommended due to flammability risks.

  • ⁴ Using full power may slightly accelerate laser tube wear.

Video 2: Create six profitable products in under three minutes with the Beambox II. Source: Flux

Large Working Area and Enhanced Cutting Depth

With a 600 × 375 mm working area and cutting depth up to 125 mm (expandable to 215 mm with the Extension Pocket Add-on), the Beambox II handles larger materials or multiple parts simultaneously, boosting creativity and production efficiency.

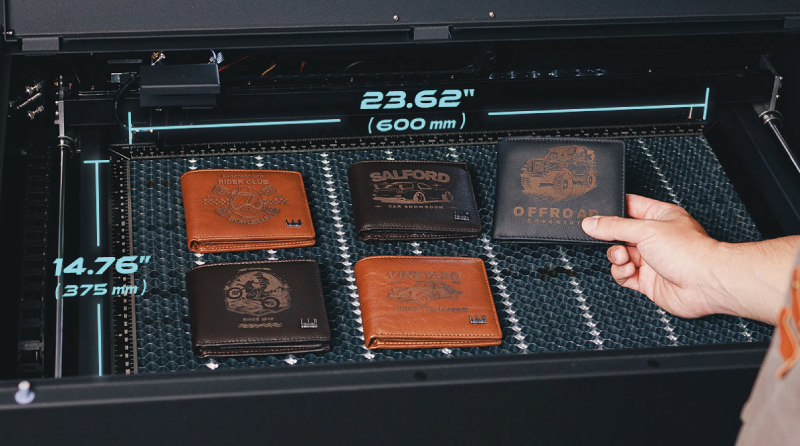

Beambox II wide 600 x 375 mm working area. Source: Flux

Photo 1: Beambox II wide 600 x 375 mm working area. Source: Flux

Smart Features for Optimized Workflow

With built-in Auto Focus, Smart Auto Alignment, and a camera preview five times faster, precise material placement is effortless. The Auto Feeder enables continuous, uninterrupted production for professional workflows.

Engraving Curved Surfaces and 3D Objects

The curve engraving feature adjusts the Z-axis automatically using red light, ensuring perfect precision on curved surfaces. With Chuck Rotary and Passthrough options, cylindrical objects, rings, spheres, and long materials can be engraved accurately.

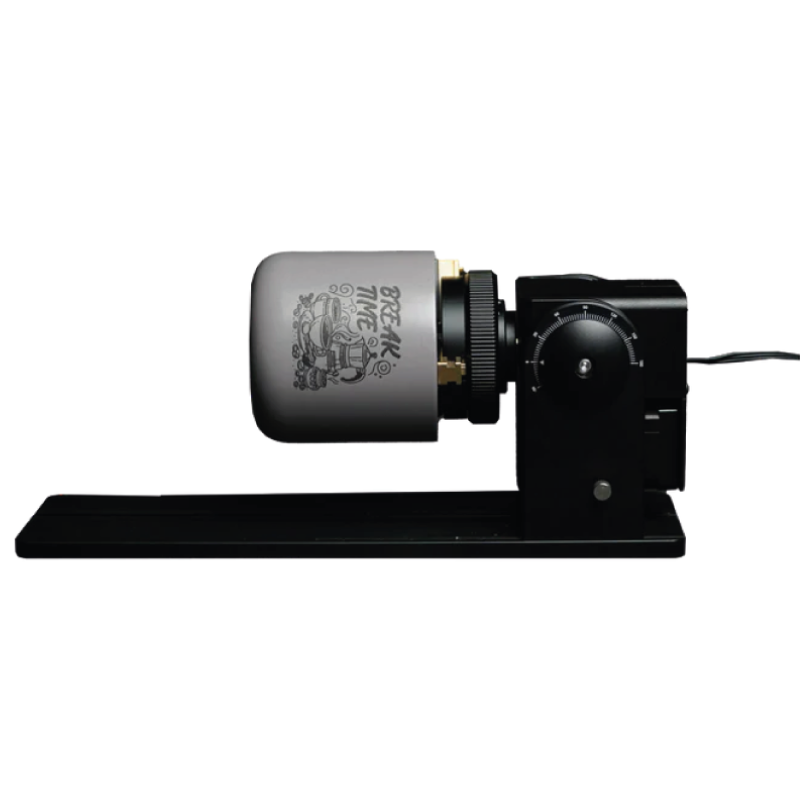

The Beambox II Chuck Rotary Add-on allows 360° engraving on cylinders and spheres. Step, L, and hexagonal jaws adapt to multiple diameters and shapes, making complex projects flexible.
Specifications: cylindrical diameter 0.04" – 5.71", ring diameter 0.43" – 5.71", sphere diameter 0.98" – 5.12", engraving length up to 19.69".

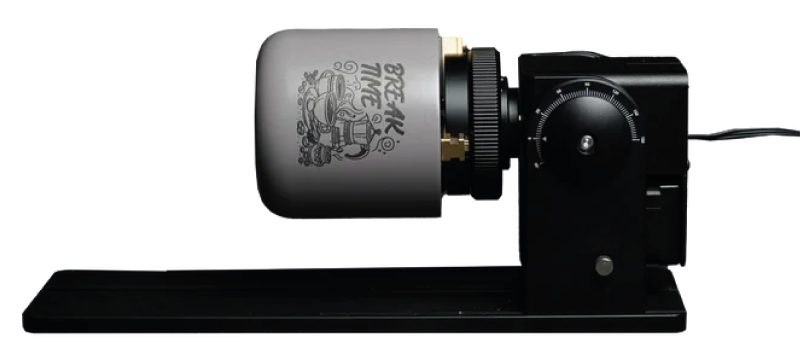

Chuck Rotary for cylindrical engraving.

Photo 2: Chuck Rotary for cylindrical engraving. Source: Flux

Smoke Filtration and Workspace Safety

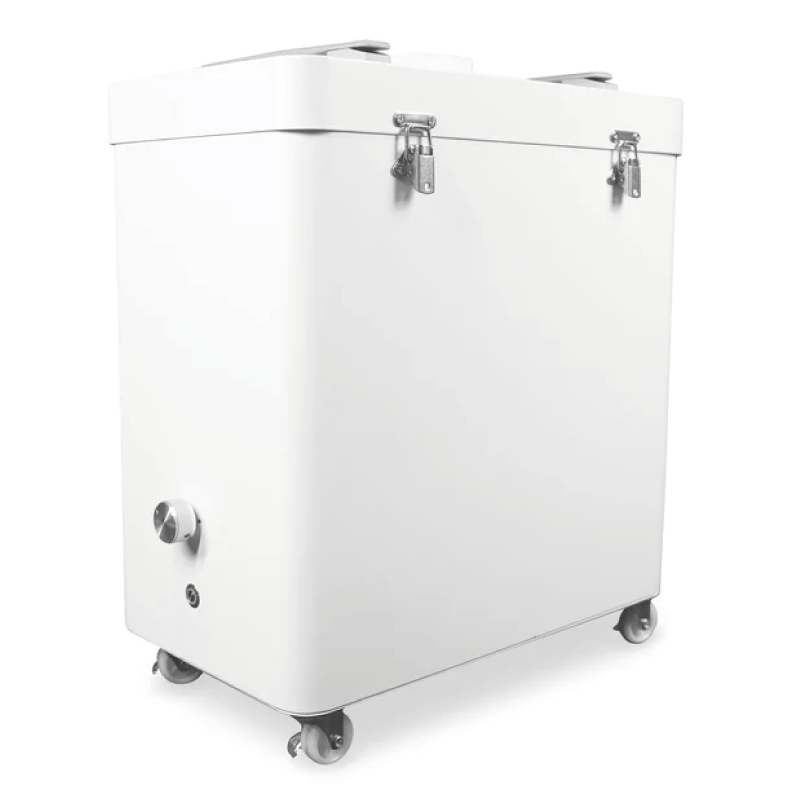

FLUX Beam Air fume extractor reduces particles and odors during cutting and engraving. Its 4-layer filter captures up to 99.9% of PM2.5 particles at 350 CFM (9,800 L/min). Features include quiet operation, USB-B auto sync with FLUX cutters, universal compatibility with 10 cm laser outputs, and mobile wheels for workshop flexibility.

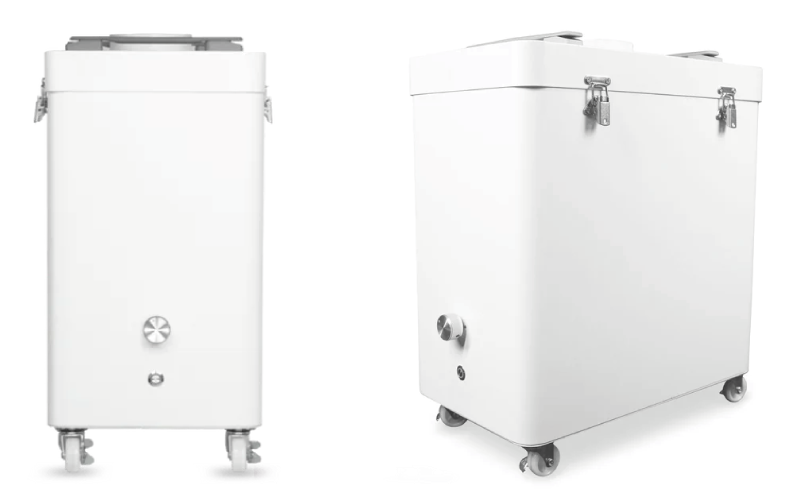

Beam Air fume extractor for Beambox II

Photo 3: Beam Air fume extractor for Beambox II. Source: Flux

Certified Safety and Material Protection

The Beambox II is CE, FCC, and FDA certified, compliant with IEC60825-1 and SGS standards. Its fully enclosed design includes an automatic stop when the lid is opened and an emergency stop button, ensuring maximum user safety.

Software and OS Compatibility

Compatible with Beam Studio and LightBurn, the Beambox II supports SVG, JPG, PNG, PDF, DXF, AI, and WEBP files. It works on Windows, macOS, Linux, and ChromeOS. The 5” HD touchscreen allows intuitive monitoring and control.

Comparison with Previous Models

Compared to the Beambox (40W) and Beambox Pro (50W), the Beambox II offers more power, larger working area, faster engraving, and advanced automation, making it ideal for workshops, creative studios, and large-scale professional production.

Conclusion: Professional Laser Cutting and Engraving Solution

The Beambox II combines high power, precision, broad material compatibility, smart automation, and accessory options like Chuck Rotary and Beam Air in a desktop laser cutter. Perfect for users seeking professional-grade efficiency, safety, and quality.

Video 3: User review of the Beambox II laser cutter. Source: Make or Breake Shop

Machine properties

Laser type CO2
Dimensions of the workspace 600 x 375 mm

Software and connectivity

Software Beam Studio | LightBurn
Connectivity WiFi | USB | Ethernet (by USB Dongle)

Laser properties

Laser power 55 W W
Laser source class 1
Laser resolution 1000 dpi
Focus Automatic
Engraving precision ± 2 mm

Cutting and engraving properties

Maximum engraving speed 900

Dimensions and weight

Dimensions 1005 x 692 x 334 mm
Weight 48.5 Kg

Other

HS Code 8477.5900
