Omtech Pronto-60 Laser Cutting and Engraving Machine

PRONTO-60
6,611.56 € 6,611.56 €
Tax excl.
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 7 - 10 days
Available for shipment within 7 - 10 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Wednesday 21 May - Monday 26 May

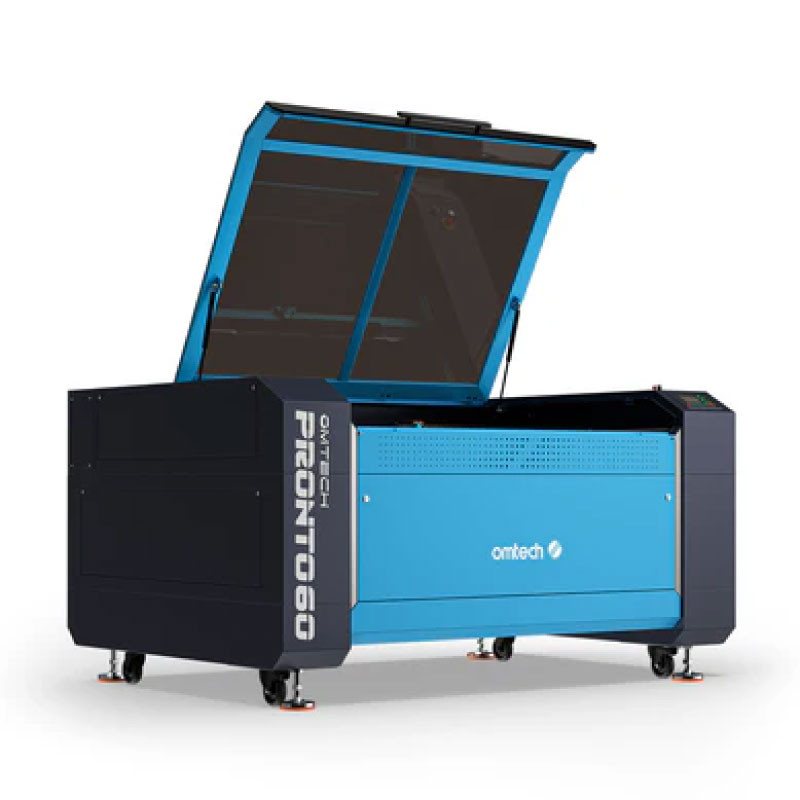

The OMTech Pronto-60 130W is a high-performance and precision CO2 laser engraving and cutting machine with industrial safety standards. This equipment offers an engraving speed of up to 1000 mm/s. Furthermore, it is a CO2 laser engraver that allows for production in large quantities and in less time, increasing efficiency by up to 37% compared to other models on the market. Ideal for businesses working with materials such as wood, acrylic, leather, MDF, plastic, paper, or even textiles, stone, and glass.

Video 1: Introduction to the OMTech Pronto series

This machine from OMTech features an advanced transmission system, combining an X-axis with V-wheels, a Y-axis with a high-precision belt, and a Z-axis with a ball screw, allowing the precision in each engraving to reach professional levels, ensuring sharp details and clean cuts. Its automatic focusing system with a red dot guide facilitates optical adjustments, improving the accuracy of the laser beam in complex or repetitive jobs.

The Pronto series CO2 cutters are 37% faster than other cutters in the same segment

Video 2: The Pronto series CO2 cutters are 37% faster than other cutters in the same segment. Source: OMTech

The 1300x900 mm work area and a maximum part height of 220 mm allow for the processing of large items, a key advantage for those who manufacture custom or serial parts. In addition, the reinforced structure and modular design with front and rear pass-through (1400x40 mm) facilitate the loading of long or bulky materials, offering maximum versatility in the production environment.

In terms of efficiency and cleanliness, the extraction system with a turbocharged fan of 900m³/h offers enormous smoke evacuation capacity, while the high-flow air assist (125 l/min) allows for deeper cuts, with precise edges and no residue. The optimized laser beam alignment from the first mirror ensures quick and precise adjustments, even in intensive productions.

Video 3: Review and setup of the OMTech Pronto-60.

Compatible with the most powerful software on the market, such as LightBurn and RDWorks, this machine allows working with large files and complex details without slowdowns, thanks to its high-performance DSP and FPGA processors. In addition, rotary axis compatibility expands creative possibilities, allowing engraving on cylindrical surfaces such as glasses, bottles, and other curved parts.

The Pronto series cutters are compatible with rotary axes that allow engraving on curved surfaces.

Video 4: The Pronto series cutters are compatible with rotary axes that allow engraving on curved surfaces. Source: OMTech

The OMTech Pronto-60 is also synonymous with safety. Certified with Class 1 level according to the ISO 13849-1:2023 standard, it incorporates SGS safety relays with redundant dual-circuit architecture, pressure sensors that activate alarms in case of failure, and a housing with fire-retardant materials that reduce the risk of fire during intensive use. The measured radiation power of 3.42 W/m², well below the permitted limit, ensures that its prolonged use does not pose risks to ocular or dermal health.

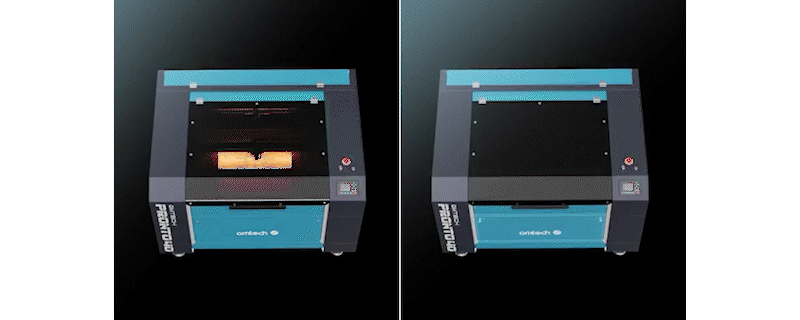

The safety relays are certified by the world's largest testing organization, SGS, and comply with the ISO 13849-1:2023 standard.

Video 5: The safety relays are certified by the world's largest testing organization, SGS, and comply with the ISO 13849-1:2023 standard. Source: OMTech

With an advanced water cooling system (requires CW-5200 chiller, sold separately), this CO2 laser cutter-engraver maintains its performance even under prolonged work sessions, extending the lifespan of the laser tube and ensuring consistent results.

Video 6: Installation and operation of the Pronto-60 laser cutter and the CW-5200 water chiller.

Main differences between the Pronto series models

Pronto-40 Pronto-45 Pronto-60 Pronto-75
Power 90W 100W 130W 150W
Work area (mm) 900X600 1000X600 1300X900 1600X1000
Max. engraving speed (mm/s) 1000 1000 1000 1000
Autofocus
Fan (m³/h) 540 540 900 1250
Max. part height (mm) 220 220 220 200
Air pump (l/min) 125 125 125 125
Front and rear pass-through (mm) 1000x40 1150x40 1400x40 1700x40

A versatile solution for demanding users

For companies looking to improve their production and offer professional customization services, the OMTech Pronto-60 with 130W represents a safe and profitable investment. Its ability to work with a wide range of non-metallic materials and its state-of-the-art technology make this laser machine an essential tool in industries such as digital woodworking, industrial design, signage, leather goods, or the manufacture of custom merchandise.

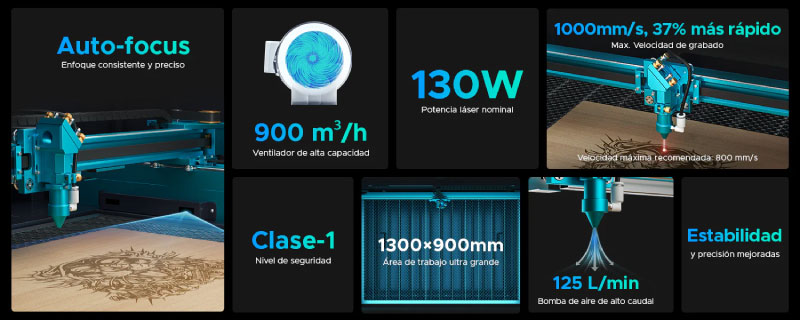

Features of the Pronto-60 CO2 laser cutter

Photo 1: Features of the Pronto-60 CO2 laser cutter. Source: OMTech

General information

Manufacturer OMTech
Technology Laser cutting
Certificates SGS, ISO 13849-1:2023

Machine properties

Working dimensions 1300 x 900 mm
Maximum part height 220 mm
Maximum sound level -
Integrated webcam
Laser tube cooling Water cooling
Exhaust fan airflow 900 m³/h
Compressor airflow 125 L/m

Laser properties

Laser power 130 W
Laser source class 1
Wavelength 10600 nm
Laser resolution 1000 dpi
Focus Automatic
Engraving precision 0.01 mm
Max. engraving depth (Acrylic) 35 mm
Laser tube length 1650
Laser tube diameter 70 mm

Software and connectivity

Software RDWorks (included) | CorelLaser, LightBurn, CorelDRAW, AutoCAD
Supported files .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, . plt, .png, .rd, .svg, .tiff, .tga
Connectivity USB, Ethernet

Cutting and engraving properties

Maximum cutting speed 1000 mm/s

Electrical properties

Input -
Consumption - W

Dimensions and weight

Dimensions 1900 x 1420 x 1020 mm
Weight 360 Kg

Other

HS Code 8477.5900

Other information

What's in the package:

  • 1x CO2 Laser Cutting Machine
  • 1x Exhaust Fan
  • 2x Exhaust Pipes
  • 1x Power Cable
  • 1x USB Cable
  • 1x Ethernet Cable
  • 3x Clamps
  • 2x Laser Keys
  • 4x Access Keys
  • 1x USB Memory Stick
  • 2x Focusing Lens Repair Tools
  • 1x Set of Hex Keys
  • 1x Phillips Screwdriver
  • 1x Flathead Screwdriver
  • 2x Water Hoses
  • 1x Power Cable for Water Chiller
  • 1x Reverse Compensation Card
  • 1x Tool Box
  • 1x Air Pump
  • 1x Double-Sided Tape
  • 1x Silicone Sealant
  • 2x Water Hose Clamps
  • 1x Ceramic Test Resistor
  • 1x User Manual
