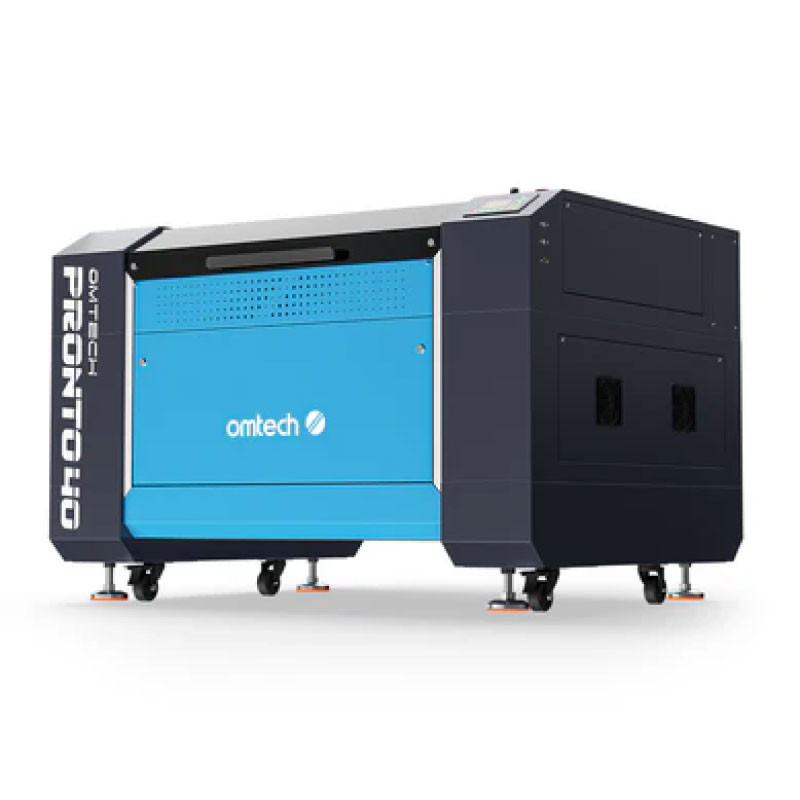

Omtech Pronto-45 Laser Cutting and Engraving Machine

PRONTO-45
5,867.76 € 5,867.76 €
Tax excl.
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 7 - 10 days
Available for shipment within 7 - 10 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Wednesday 21 May - Monday 26 May

The OMTech Pronto-45 100W is a high-performance and precision CO2 laser engraving and cutting machine that meets industrial safety standards. This machine offers an engraving speed of up to 1000 mm/s. It is also a CO2 laser engraver designed for high-volume, time-efficient production, improving productivity by up to 37% compared to other models on the market. Ideal for businesses working with materials like wood, acrylic, leather, MDF, plastic, paper, and even textiles, stone, and glass.

Video 1: Introduction to the OMTech Pronto series

This OMTech machine features an advanced transmission system, combining a V-wheel X-axis, a high-precision belt Y-axis, and a ball screw Z-axis. This allows each engraving to achieve professional-level precision, ensuring sharp details and clean cuts. Its autofocus system with red dot guide facilitates optical adjustments, enhancing laser beam accuracy for complex or repetitive jobs.

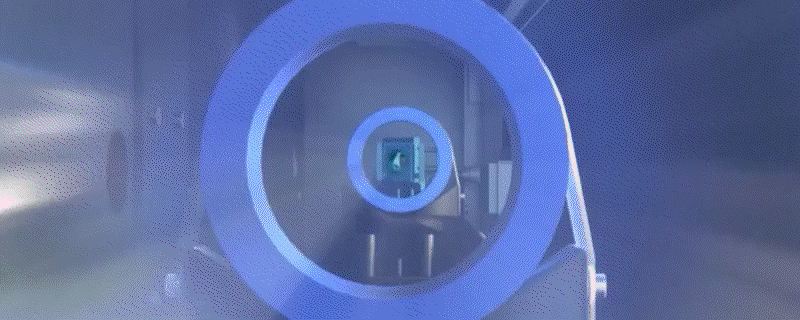

The autofocus with red dot indicator makes it easy to see the optical path for precise adjustments.

Video 2: The autofocus with red dot indicator makes it easy to see the optical path for precise adjustments. Source: OMTech

The 1000x600 mm work area and 220 mm max piece height allow for processing large items—a key advantage for those producing custom or mass-manufactured parts. Its reinforced frame and modular design with front and rear passthroughs (1150x40 mm) make it easy to load long or bulky materials, offering maximum versatility in a production environment.

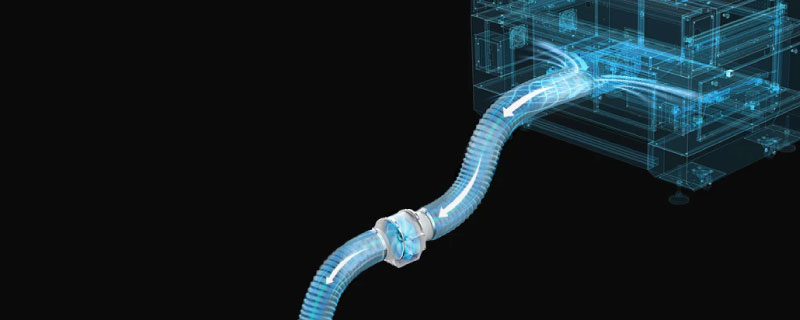

The fan with an airflow rate of 540 m³/h quickly removes smoke and dust.

Photo 1: The fan with an airflow rate of 540 m³/h quickly removes smoke and dust. Source: OMTech

Regarding efficiency and cleanliness, the extraction system with a turbocharged fan of 540 m³/h provides excellent smoke removal, while the high-flow air assist (125 l/min) enables deeper cuts with clean edges and no debris. The optimized laser beam alignment from the first mirror ensures fast, accurate adjustments even during intensive production.

Compatible with top software on the market, such as LightBurn and RDWorks, this machine handles large files and complex designs without lag, thanks to its high-performance DSP and FPGA processors. In addition, rotary axis compatibility expands creative potential, enabling engraving on cylindrical surfaces like cups, bottles, and other curved items.

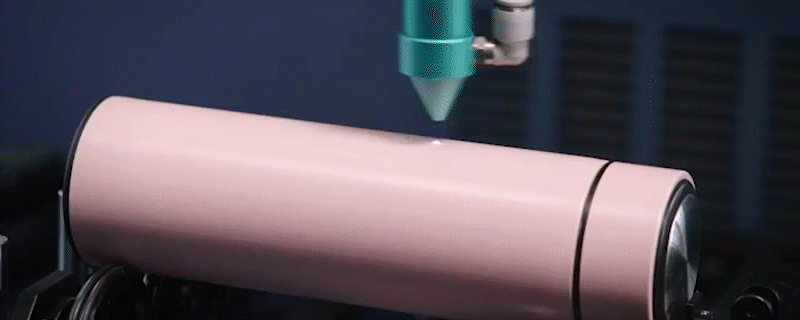

Pronto series cutters are compatible with rotary axes for engraving on curved surfaces.

Video 3: Pronto series cutters are compatible with rotary axes for engraving on curved surfaces. Source: OMTech

The OMTech Pronto-45 also stands for safety. Certified as Class 1 under the ISO 13849-1:2023 standard, it includes SGS safety relays with dual redundant circuit architecture, pressure sensors that trigger alarms upon failure, and a flame-retardant housing that reduces fire risk during intensive use. The measured radiation output of 3.42 W/m², well below the permitted limit, ensures prolonged use does not pose eye or skin health risks.

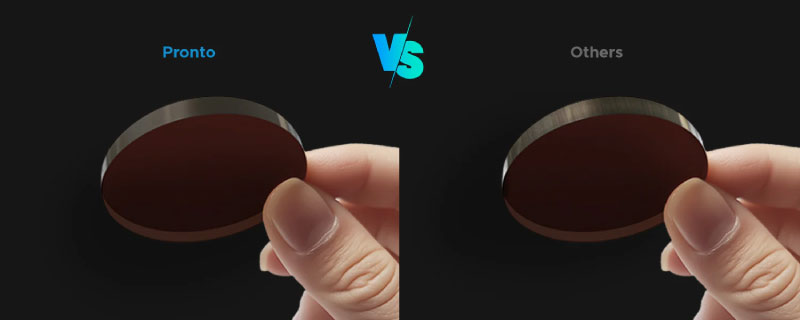

The cutting quality of the Pronto CO2 series is superior compared to other machines in the same segment.

Photo 2: The cutting quality of the Pronto CO2 series is superior compared to other machines in the same segment. Source: OMTech

With an advanced water-cooling system (requires a CW-5200 chiller, sold separately), this CO2 laser cutter-engraver maintains performance even during long work sessions, extending the laser tube's lifespan and ensuring consistent results.

Main Differences Between Pronto Series Models

Pronto-40 Pronto-45 Pronto-60 Pronto-75
Power 90W 100W 130W 150W
Work Area (mm) 900X600 1000X600 1300X900 1600X1000
Max Engraving Speed (mm/s) 1000 1000 1000 1000
Autofocus
Fan (m³/h) 540 540 900 1250
Max Piece Height (mm) 220 220 220 200
Air Pump (l/min) 125 125 125 125
Front & Rear Passthrough (mm) 1000x40 1150x40 1400x40 1700x40

A Versatile Solution for Demanding Users

For companies aiming to enhance their production and offer professional customization services, the OMTech Pronto-45 with 100W represents a safe and profitable investment. Its ability to handle a wide variety of non-metallic materials and its state-of-the-art technology make this laser machine an essential tool in industries such as digital woodworking, industrial design, sign making, leather goods, or customized merchandise production.

Features of the Pronto-45 CO2 Laser Cutter

Photo 3: Features of the Pronto-45 CO2 Laser Cutter. Source: OMTech

General information

Manufacturer OMTech
Technology Laser cutting
Certificates SGS, ISO 13849-1:2023

Machine properties

Working dimensions 1000 x 600 mm
Integrated webcam
Laser tube cooling Water cooling
Exhaust fan airflow 540 m³/h
Compressor airflow 125 L/min

Laser properties

Laser power 100 W
Laser source class 1
Wavelength 10640 nm
Laser resolution 1000 dpi
Focus Automatic
Engraving precision 0.01 mm
Max. engraving depth (Acrylic) 31 mm
Laser tube length 1450 mm
Laser tube diameter 60 mm mm

Software and connectivity

Software RDWorks (included) | CorelLaser, LightBurn, CorelDRAW, AutoCAD
Supported files .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, . plt, .png, .rd, .svg, .tiff, .tga
Connectivity USB, Ethernet

Cutting and engraving properties

Maximum cutting speed 1000 mm/s
Maximum engraving speed 1000 mm/s

Electrical properties

Consumption 1450 W

Dimensions and weight

Dimensions 1650 x 1120 x 1020 mm
Weight 286 Kg

Other

HS Code 8477.5900

Other information

What's in the Package:

  • 1x CO2 Laser Cutting Machine
  • 1x Exhaust Fan
  • 2x Exhaust Pipes
  • 1x Power Cable
  • 1x USB Cable
  • 1x Ethernet Cable
  • 3x Clamps
  • 2x Laser Keys
  • 4x Access Keys
  • 1x USB Memory Stick
  • 2x Focus Lens Repair Tools
  • 1x Set of Hex Keys
  • 1x Phillips Screwdriver
  • 1x Flathead Screwdriver
  • 2x Water Hoses
  • 1x Power Cable for Water Chiller
  • 1x Reverse Compensation Card
  • 1x Toolbox
  • 1x Air Pump
  • 1x Double-sided Tape
  • 1x Silicone Sealant
  • 2x Water Hose Clamps
  • 1x Ceramic Test Resistor
  • 1x User Manual
