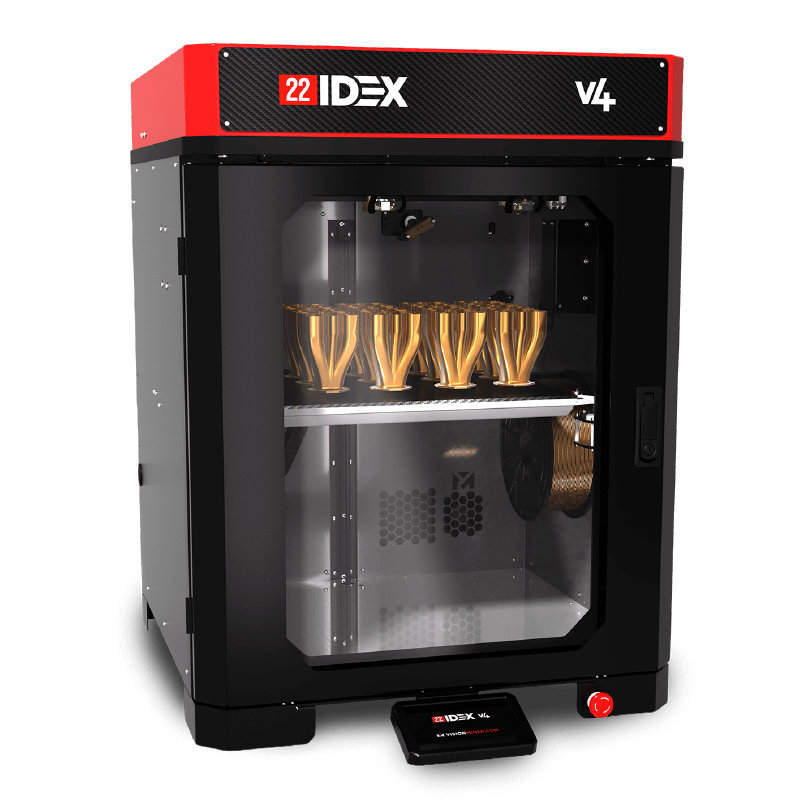

Vision Miner 22 IDEX V4 High-Temp - FDM 3D Printer

The 22 IDEX V4 High-Temp from Vision Miner is an industrial 3D printer designed to work with high-performance thermoplastics such as PEEK, PEKK, ULTEM™, PEI, PPSU, Nylon, PC, ABS and many more. Equipped with independent dual extruders capable of reaching 500 °C, an actively heated chamber exceeding 100 °C, and a self-leveling 200 °C build platform with a triple Z-motor system, it offers a fully open-material platform that combines automation, ease of use, and optimized cost for high-temperature additive manufacturing.

Video 1: Presentation of the new Vision Miner 22 IDEX V4 3D printer. Source: Vision Miner.

Comparison: Vision Miner 22 IDEX V3 vs V4

Main improvements in version V4

• Reinforced triple-wall thermal insulation and sealed dual-glass door.
• Integrated HEPA + activated carbon filtration with external extraction compatibility.
• Internal filament drying system for hygroscopic materials.
• New industrial design with integrated touchscreen and reinforced chassis.
• Expanded compatibility with engineering polymers and technical composites.
• Higher speed (up to 500 mm/s) and improved Z precision (7 μm).
• Ready for non-planar printing and future multi-axis expansion.

Video 2: Complete overview and technical deep dive of the 22 IDEX V4 3D printer. Source: Vision Miner.

High productivity with industrial materials

From aerospace spare parts to sterilizable medical tools, the 22 IDEX V4 enables manufacturing with functional polymers and composites resistant to chemicals and high temperatures. Its true IDEX design allows duplication, mirror, and multi-material modes—boosting productivity and reducing print time.

High-precision extrusion and thermal control

The independent dual hotends reach 500 °C and maintain stable temperature thanks to advanced insulation and dual-sensor feedback. The heated chamber exceeds 100 °C, while the self-leveling bed reaches 200 °C, ensuring perfect adhesion even with PEEK or ULTEM™.

Video 3: Details of the extruders on the 22 IDEX V4 printer. Source: Vision Miner.

Smart platform and calibration

The self-leveling base with triple Z motors and 144+ mesh points eliminates manual adjustment. The automatic XY head alignment is performed by a CNC probe, ensuring layer-by-layer precision even after long continuous prints.

Photo 1: The platform of the IDEX 22 V4 calibrates intelligently. Source: Vision Miner.

Industrial components and open firmware

The printer integrates Bondtech LGX Pro extruders, Copperhead® hotends, hardened nozzles, open RepRap firmware on Duet 3 with Trinamic drivers, and modular Ethernet/WiFi connectivity. Compatible with any slicer on the market and fully open for customization.

Conclusion

The 22 IDEX V4 High-Temp represents a complete evolution over the V3: faster, safer, more automated, and ready for continuous production using advanced engineering materials. It’s a professional solution designed for industrial, medical, automotive, and aerospace environments demanding maximum reliability, precision, and material freedom.

Video 4: Vision Miner explains why the 22 IDEX printers are preferred by the U.S. Military. Source: Vision Miner.
