Koltron G1 Graphene

ADDN-KOLTRONG1-BLACK-175
195.04 € 195.04 €
Tax excl.
Diameter
Format
Colour
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 0 - 0 days
Available for shipment within 0 - 0 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Addnorth is a Swedish manufacturer of filaments for 3D printing, renowned for producing very high quality filaments, as well as for the strong development of materials for applications in science and engineering.

Koltron G1 is one of the most advanced graphene filaments on the market. It is a filament doped with Aros Graphene, a graphene developed and patented by Graphmatech. Aros Graphene is a graphene specifically designed for industrial applications and whose main advantage is its ability to keep the sheets of graphene separate and homogeneous when dispersed in other matrices, such as plastic. This makes it possible to keep most of the amazing properties of graphene intact.

piano koltron g1

Image 1: Keyboard printed with Koltron G1. Source: Addnorth.com

The filament matrix is based on polyvinylidene fluoride (PVDF), an advanced plastic with excellent mechanical, chemical and thermal properties. It stands out for being an inert plastic to most chemical compounds (except caustic solutions and ketones), which, together with its high thermal resistance of up to 120ºC in continuous work, makes it a material with great potential in the chemical industry.

Its main properties include

Electrical conductivity

It has a volumetric resistivity of only 2 Ohm-cm, which gives it excellent electrical conductivity. In addition, the highly homogeneous distribution obtained thanks to Aros Graphene, provides it with a high isotropy of the electrical properties. This makes it a suitable filament for the production of printed circuits, wearables or capacitive sensors.

Video 1: How to measure the electrical conductivity of a filament Source: addnorth.com

Thermal conductivity

Koltron G1 has a thermal conductivity of 0.5 W/km. This, together with its high temperature resistance of up to 120°C, makes it also suitable for electronic or mechanical applications requiring heat dissipation.

Radiation protection

Another unusual property of 3D printing materials is their current ability as electromagnetic shielding. With an attenuation of 22dB, Koltron G1 provides effective protection against electromagnetic and radio frequency interference.

Tribological properties

PVDF has excellent tribological properties, acting as a self-lubricating material as well as being highly resistant to wear. These properties are enhanced by the effect of graphene, making Koltron G1 an ideal material for mechanical friction elements.

planetario koltron g1

Image 2: Planetary gear manufactured with Koltron G1. Source: Addnorth.com


Flame retardant

The PVDF has the capacity of current as a flame retardant. It has a V-0 flammability rating (UL94) which means that combustion is stopped in less than 10 s.

Chemical and UV stability

Koltron G1 has a high level of stability against UV radiation and many chemicals. It has excellent resistance to strong and weak acids, salt solutions, halogenated compounds, hydrocarbons, aromatic and aliphatic solvents, oxidants and weak bases. As in the case of other fluoropolymers, its use is not recommended with strong bases, esters and ketones.

Koltron G1 complies with the REACH and ROHS directives and is free of BPH and silicone.

It has a high warping and low adhesion between layers, which makes it a material with certain complexity when printing. It is necessary to obtain good adhesion to the base, as well as to slightly increase the Flow.

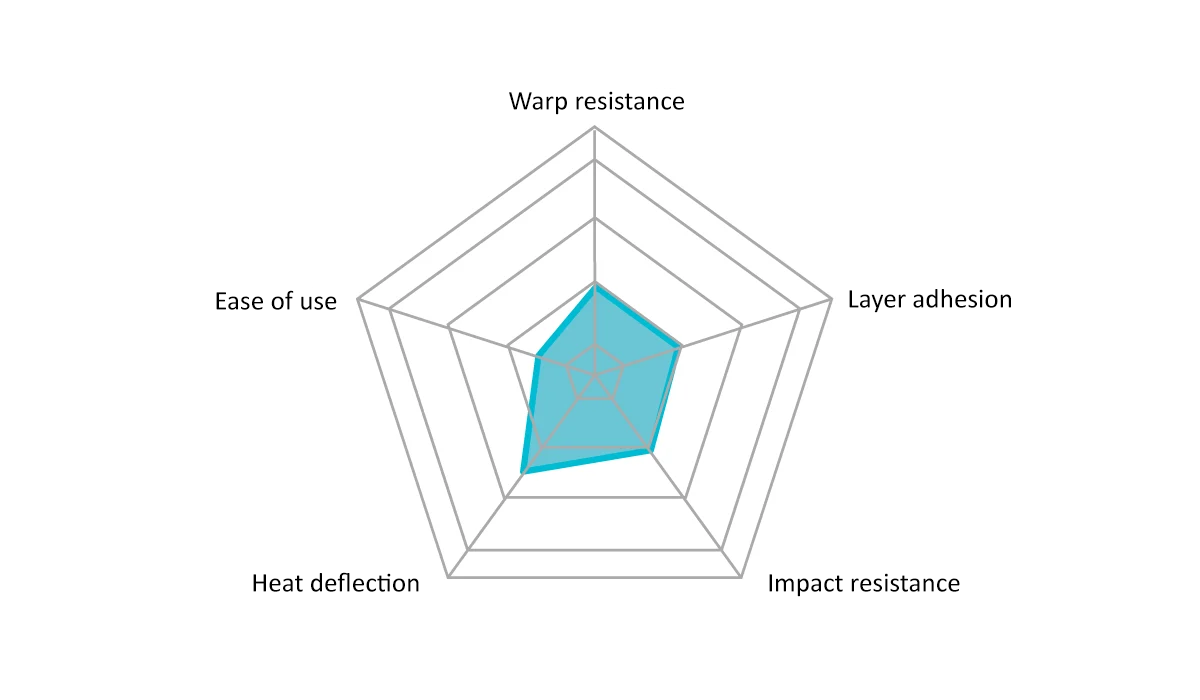

diagrama de propiedades

Image 3: Koltron G1 material properties diagram. Source: addnorth.com

Koltron G1 is available in matt black and in 250 g format, in both 1.75 mm and 2.85 mm.

propiedades visuales

Image 4: Visual properties of the material. Source: addnorth.com

This is a new material with great potential mainly in the chemical, electronic and aerospace industries.

General information

Material PVDF
Format 250 g
Density (ISO 527) 1.8 g/cm³
Filament diameter 1.75 / 2.85 mm
Filament tolerance ± 0.025 mm
Filament length (Ø 1.75 mm - 0.25 Kg) ± 231 m / (Ø 2.85 mm - 0.25 Kg) ± 87 m

Electrical properties

Volumetric resistivity (ASTM D257) 2 Ohm/cm

Printing properties

Printing temperature 265 - 280 ºC
Print bed temperature 100 ºC
Chamber temperature
Cooling fan
Recommended printing speed 20 mm/s

Mechanical properties

Elongation at break (ISO 527) 50 %
Tensile strength (ISO 527) 51 MPa
Tensile modulus (ISO 527) 562 MPa
Flexural strength (ISO 178) 89 MPa
Flexural modulus (ISO 178) 2645 MPa
Surface hardness -

Thermal properties

Softening temperature 120 ºC

Specific properties

Transparency
Chemical resistance

Other

HS Code 3916.9
Spool diameter (outer) 200 mm
Spool diameter (inner hole) 52 mm
Spool width 55 mm

Koltron G1 must be printed at a temperature between 265°C and 280°C, and with a base temperature of 100°C.

It exhibits high warping, so it is necessary to use high quality base bonding solutions such as Magigoo PA.

Due to its high viscosity, printing speed should not exceed 20 mm/s and accelerations should be limited to 250 mm/s2.

It is recommended to increase the Flow value to 110 % and to use a nozzle with a diameter of more than 0.6 mm.

Featured properties

Printing temperature
265 - 280 ºC
Filament diameter
1.75 / 2.85 mm
Density
1,8 g/cm³
