Panels for Elegoo Centauri Carbon

Ref.: ELEGOO-CCPANELS-FRONT

49.95 €

Tax excl.

Placement

Volume discounts

Quantity	Discount	Price
5	5% 5%	47.45 € 47.45 €

Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 5 - 6 days Available for shipment within 5 - 6 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Thursday 29 January - Friday 30 January

Returns

Ask about this product

Official spare parts for the Elegoo Centauri Carbon 3D printer — side covers, front door, and top panel in tempered glass — designed to maintain the integrity of the enclosed chamber, improve visibility of the printing area, and ensure a stable thermal environment ideal for technical materials.

The use of these original panels keeps the chamber fully enclosed, ensuring essential thermal stability for printing with technical, reinforced, or warp-sensitive filaments. The transparent tempered glass allows visual monitoring of the print without opening the printer, avoiding sudden temperature changes or drafts. Installation is simple, as all parts fit directly without modifications, making maintenance and replacement of damaged panels easier. These panels also protect against dust and external contaminants while improving the overall aesthetics and functionality of the equipment by restoring the original integrity of the closed chassis.

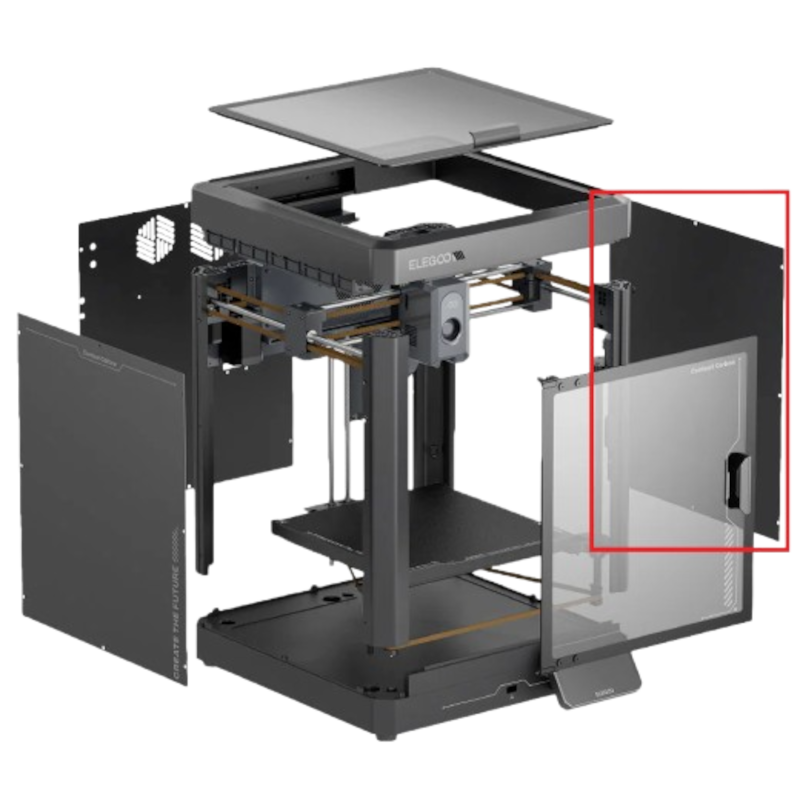

Right Side Panel (Right Sealing Plate)

Sealing cover for the right side of the Centauri Carbon enclosure. It helps maintain stable internal temperature and isolate the chamber from external airflow, improving consistency when printing with temperature-sensitive filaments.

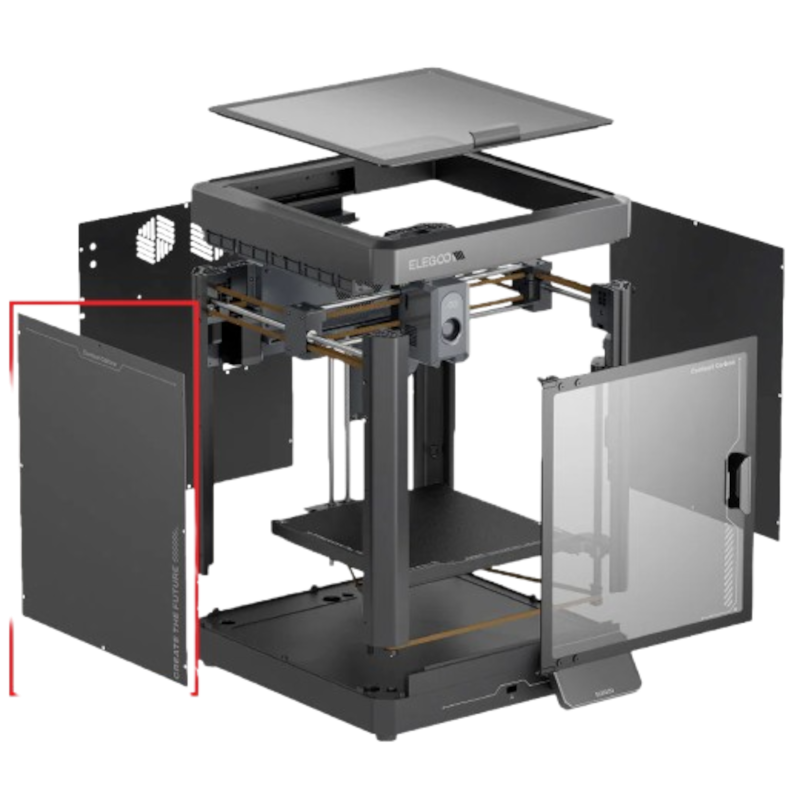

Left Side Panel (Left Sealing Plate)

Sealing cover for the left side, complementing the enclosure’s integral sealing system. It helps preserve internal thermal conditions and protects against dust or contaminants.

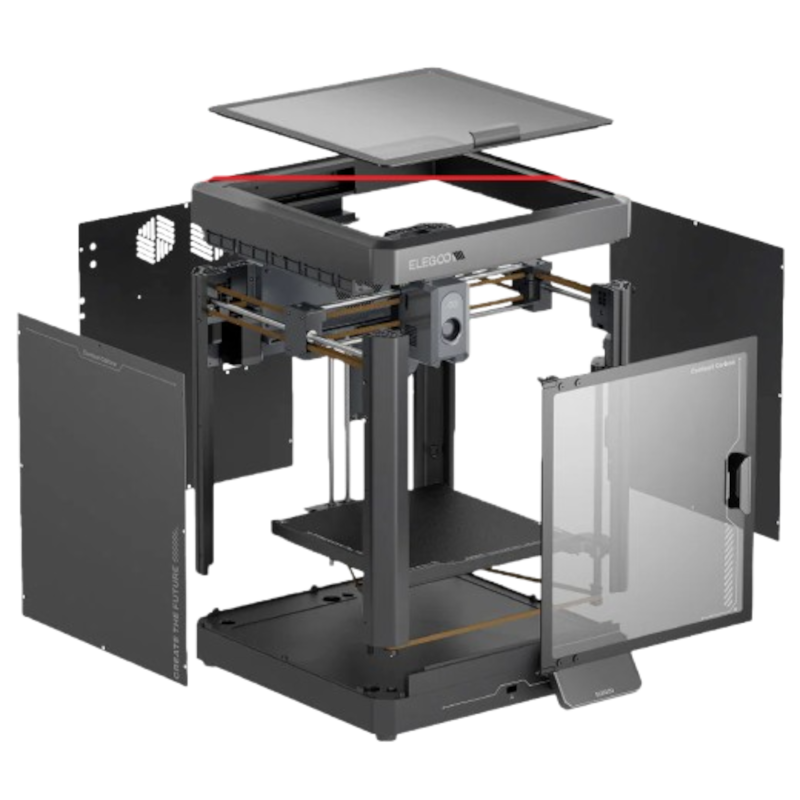

Tempered Glass Top Cover (Upper Glass Cover Assembly)

Tempered-glass top panel with hinges and handle, offering visibility from above and facilitating part removal. Once installed, it seals the top of the chamber, helping maintain a constant internal temperature — important when printing reinforced or sensitive materials.

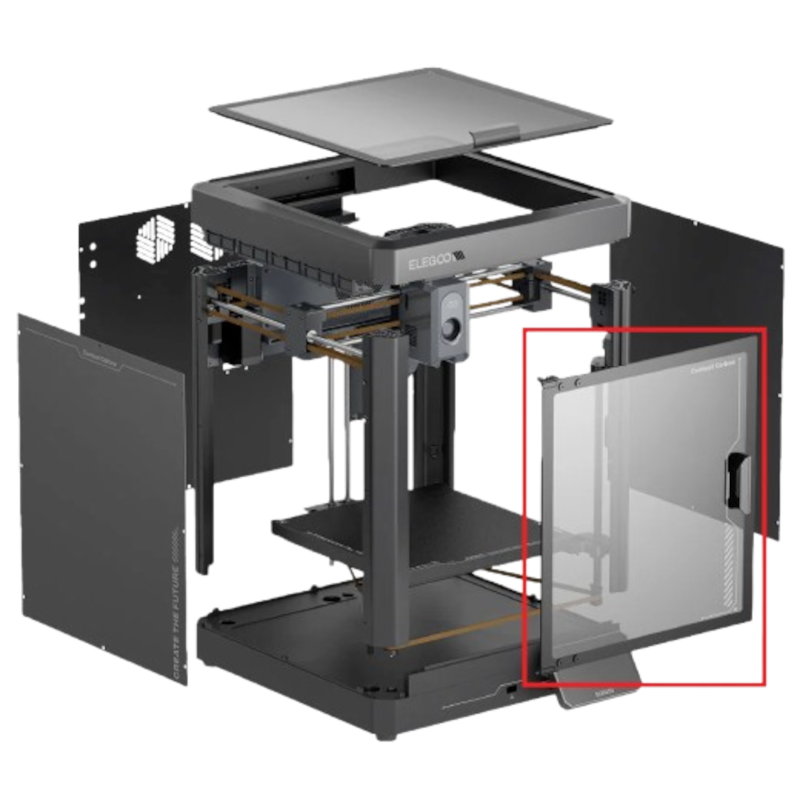

Tempered Glass Front Door (Front Glass Cover Assembly)

Full front door with hinges and handle, made of durable tempered glass. It provides full visibility of the printing volume and allows access to the bed and work area without compromising the enclosure’s sealing. Ideal for maintaining a stable closed environment during printing.

During installation and use, it is important to ensure that hinges and screws are properly aligned to prevent air leaks. The front door must close perfectly, as even small gaps can affect internal temperature and print quality. The tempered glass should be cleaned with a soft cloth and without aggressive solvents to maintain optimal visibility and avoid damage. After installation, it is advisable to run a full heating and cooling cycle with the heated bed to verify proper thermal sealing of the chamber, especially when working with technical filaments.

These components allow maintaining or restoring the closed-chamber functionality of the Elegoo Centauri Carbon, ensuring proper conditions for printing demanding materials while providing comfort, safety, and visual control during the process.

General information
Manufacturer	Elegoo

Other
HS Code	8477.5900

The side panels, front door, and top tempered glass cover of the Elegoo Centauri Carbon enclosure are integral to the 3D printer's closed design. These panels not only protect internal components and enhance aesthetics, but also contribute to thermal stability and print quality when working with temperature-sensitive technical materials.

Periodic visual inspection: regularly check the panels for cracks, scratches, or warping that could allow air leaks or reduce thermal insulation.

Hinge and latch alignment: ensure that the hinges and screws of the glass panels (front and top) are properly aligned and tightened; any looseness may compromise the sealed chamber and negatively affect thermal control during demanding prints.

Tempered glass cleaning: clean the glass panels (front and top) with a soft cloth and without harsh or abrasive solvents to avoid damaging the surface or reducing visibility, maintaining optimal observation of ongoing prints.

Protection from dust and contaminants: keep the panels closed whenever possible during operation to prevent the entry of dust, filament fibers, or particles that could accumulate inside the chamber and affect electronic or mechanical components.

Post-maintenance check: after removing or reinstalling the panels (e.g., following interventions on electronics or the motion system), perform a heating cycle with the bed and hotend active to ensure there are no significant temperature leaks and the closed chamber functions properly.

Replacement of damaged panels: if the glass panels have deep cracks or the metal side panels are warped, replace them with original spare parts to restore thermal performance and mechanical protection of the chassis.
