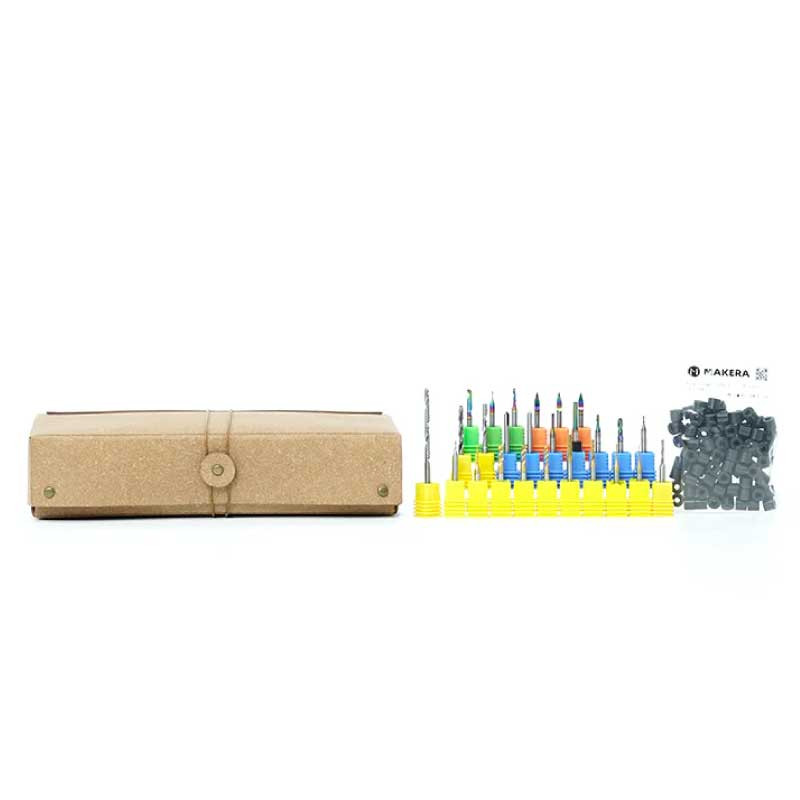

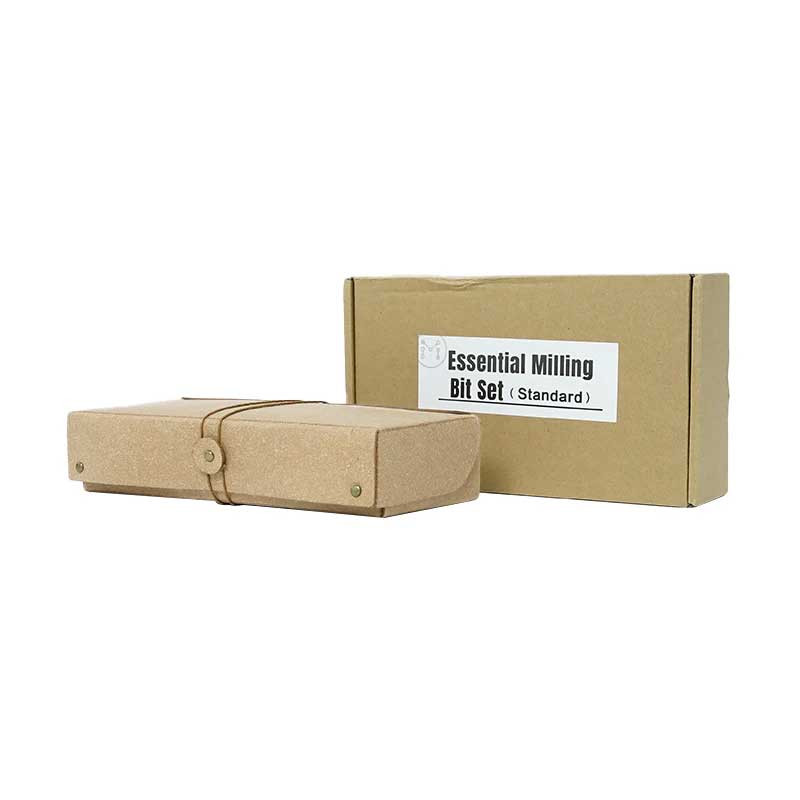

Essential Drill Bit Set for Carvera

Ref.: CARVERA-BIT-52

247.10 €

Tax excl.

Compatibility

Pack

Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 0 - 0 days Available for shipment within 0 - 0 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Returns

Ask about this product

Description
Specifications

This CNC milling bits and drill set has been carefully selected to deliver maximum performance with CNC machines Carvera and Carvera Air. The original 36-piece set has been discontinued and replaced by two new versions: an expanded 52-piece pack and a standard 26-piece pack, designed to suit different needs and levels of demand.

Video 1: How to choose the right milling bit or drill depending on the job.

Designed by Makera, this carefully selected set of milling bits—chosen for their popularity and versatility—enables the machining of soft metals, wood, plastics and composite materials. It is suitable for cutting, milling, chamfering and threading operations, both for fine machining and rougher work.

Video 2: How to install and remove bit collars on Carvera and Carvera Air CNC machines.

Both packs include drill bits and milling cutters in multiple geometries: spiral, ball nose, engraving, chamfering, threading and corn cutter bits, as well as tools with TiN coating for enhanced durability. The expanded 52-piece pack offers a wider variety and duplicate tools for intensive use, while the standard 26-piece pack is ideal for users looking for a balanced and functional set.

Video 3: Steel machining test with Carvera CNC machines.

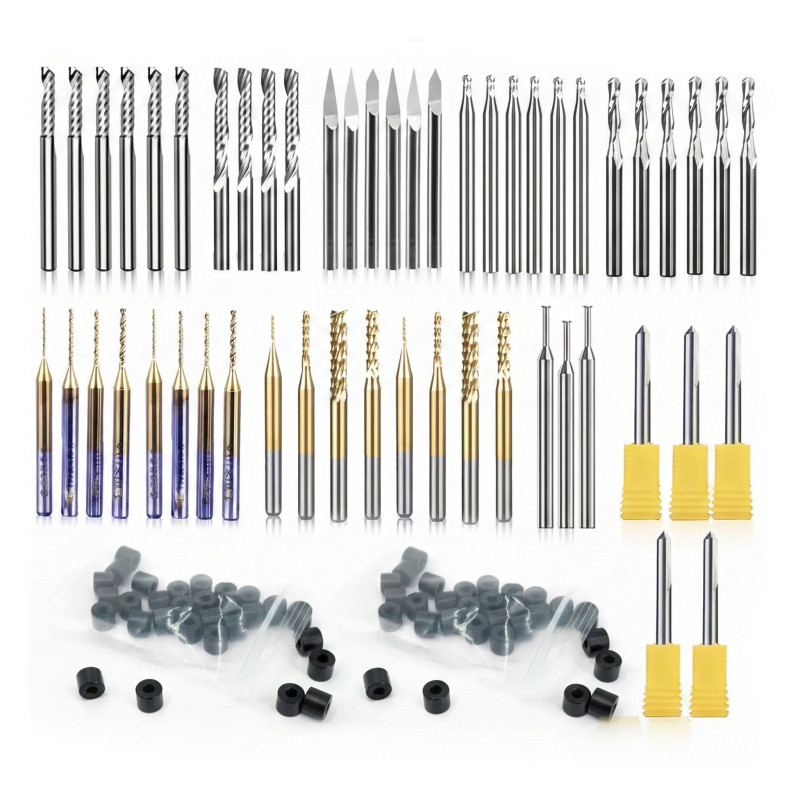

Contents of the CNC milling and drill bit packs

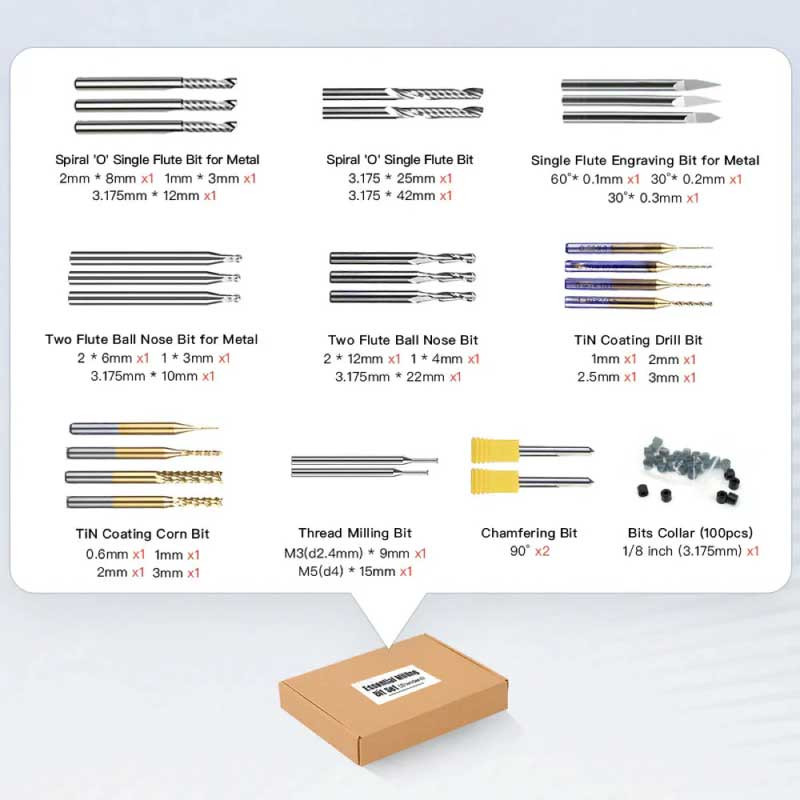

Below is the full content of each version of the set, clearly showing the differences between the expanded 52-piece pack and the standard 26-piece pack. This comparison makes it easy to identify which tools are included in each pack and choose the option that best suits the type of work, materials and frequency of use on Carvera and Carvera Air CNC machines.

Tool type	Expanded pack (52 pieces)	Standard pack (26 pieces)
1-flute spiral bit for metal (1/8″ shank)	3.175 mm × 12 mm (x2) 2 mm × 8 mm (x2) 1 mm × 3 mm (x2)	3.175 mm × 12 mm (x1) 2 mm × 8 mm (x1) 1 mm × 3 mm (x1)
1-flute “O” type spiral bit (1/8″ shank)	3.175 mm × 25 mm (x2) 3.175 mm × 42 mm (x2)	3.175 mm × 25 mm (x1) 3.175 mm × 42 mm (x1)
1-flute engraving bit for metal (1/8″ shank)	60° × 0.1 mm (x2) 30° × 0.2 mm (x2) 30° × 0.3 mm (x2)	60° × 0.1 mm (x1) 30° × 0.2 mm (x1) 30° × 0.3 mm (x1)
2-flute ball nose bit for metal (1/8″ shank)	3.175 mm × 10 mm (x2) 2 mm × 6 mm (x2) 1 mm × 3 mm (x2)	3.175 mm × 10 mm (x1) 2 mm × 6 mm (x1) 1 mm × 3 mm (x1)
2-flute ball nose bit (1/8″ shank)	3.175 mm × 22 mm (x2) 2 mm × 12 mm (x2) 1 mm × 4 mm (x2)	3.175 mm × 22 mm (x1) 2 mm × 12 mm (x1) 1 mm × 4 mm (x1)
TiN-coated drill bit (1/8″ shank)	1 mm (x2) 2 mm (x2) 2.5 mm (x2) 3 mm (x2)	1 mm (x1) 2 mm (x1) 2.5 mm (x1) 3 mm (x1)
TiN-coated corn cutter bit (1/8″ shank)	0.6 mm (x2) 1 mm (x2) 2 mm (x2) 3 mm (x2)	0.6 mm (x1) 1 mm (x1) 2 mm (x1) 3 mm (x1)
Thread milling cutter (1/8″ shank)	M3 (d2.4 mm) × 9 mm (x1) M4 (d3.15 mm) × 12 mm (x1) M5 (d4 mm) × 15 mm (x1)	M3 (d2.4 mm) × 9 mm (x1) M5 (d4 mm) × 15 mm (x1)
Chamfering bit (1/8″ shank)	90° × 5	90° × 2
Bit collars	1/8″ (3.175 mm) × 2 (100 units)	1/8″ (3.175 mm) × 1 (100 units)
