Raise3D electronic board

RAISE-BOARD-MOTION-PRO3
309.99 € 309.99 €
Tax excl.
Model
Quantity

In stock 3 units available for immediate shipping.
units available for shipping in 7 - 10 days Available for shipment within 7 - 10 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Thursday 30 October

The control boards are in charge of controlling and managing the operation of the extruders, movement of the XYZ axis motors, touch interfaces, detecting the absence of filaments, managing the nozzle lifting system, etc. These are therefore the key elements for reliable and stable printing.

For example, the stepper controller is an essential part of any 3D printer, as it converts the controller signals into motor movements. This for example allows the printer to achieve precise linear movements of the axes. Being a stepper controller based on the TMC2100 ensures smooth control and quiet operation.

Compatibility (series) SKU RAISE3D EAN Product description Raise3D REFERENCE
Pro3 [S]5.21.14009A02 6970240724032 Extruder Controller Board RAISE-BOARD-EXT-PRO3

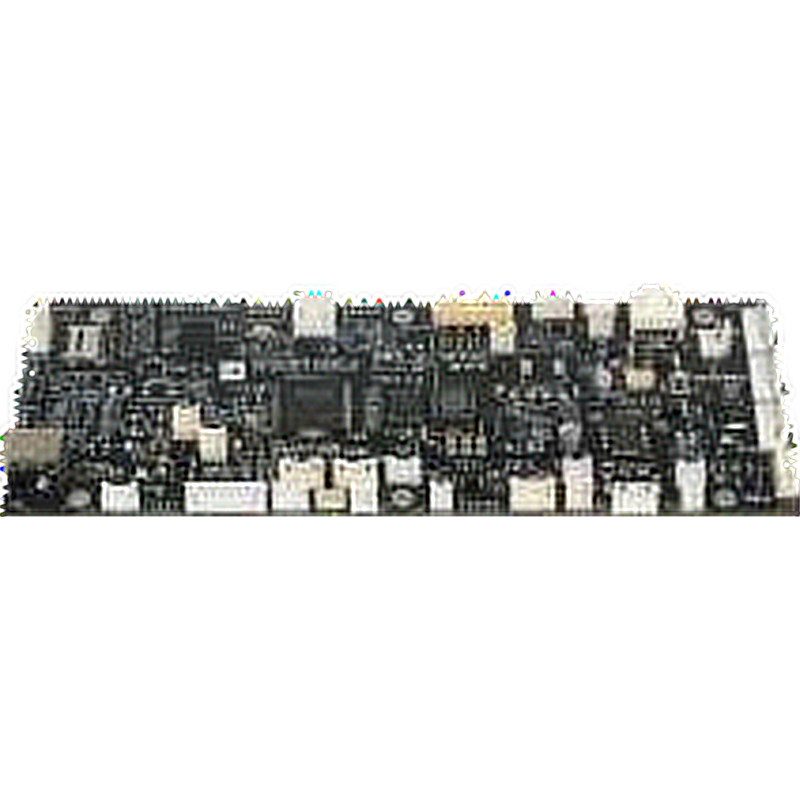

Pro3 [S]5.21.14008A03 6970240724063 Motion Controller Board RAISE-BOARD-MOTION-PRO3

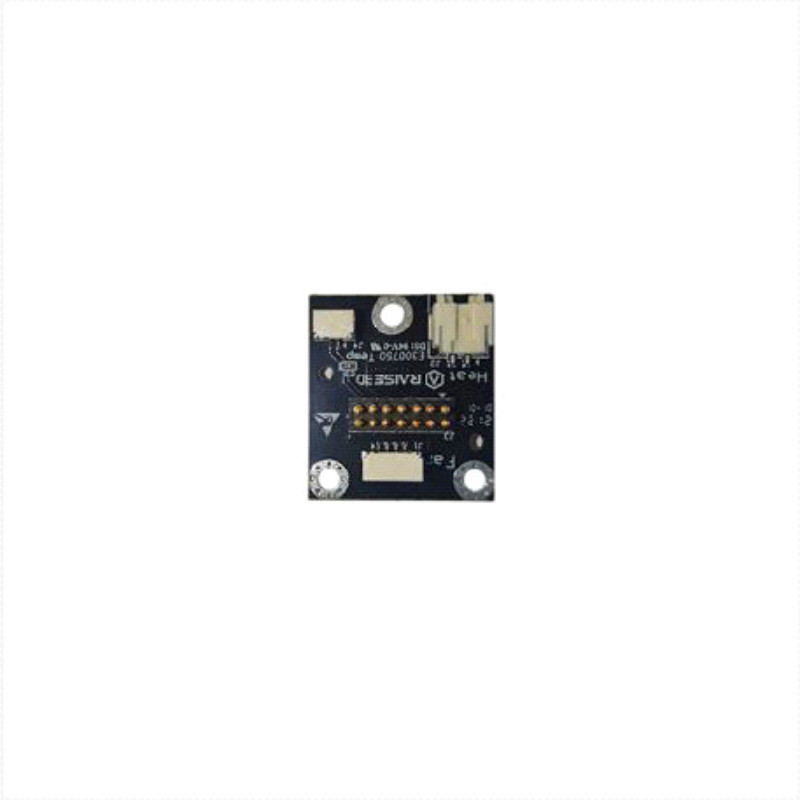

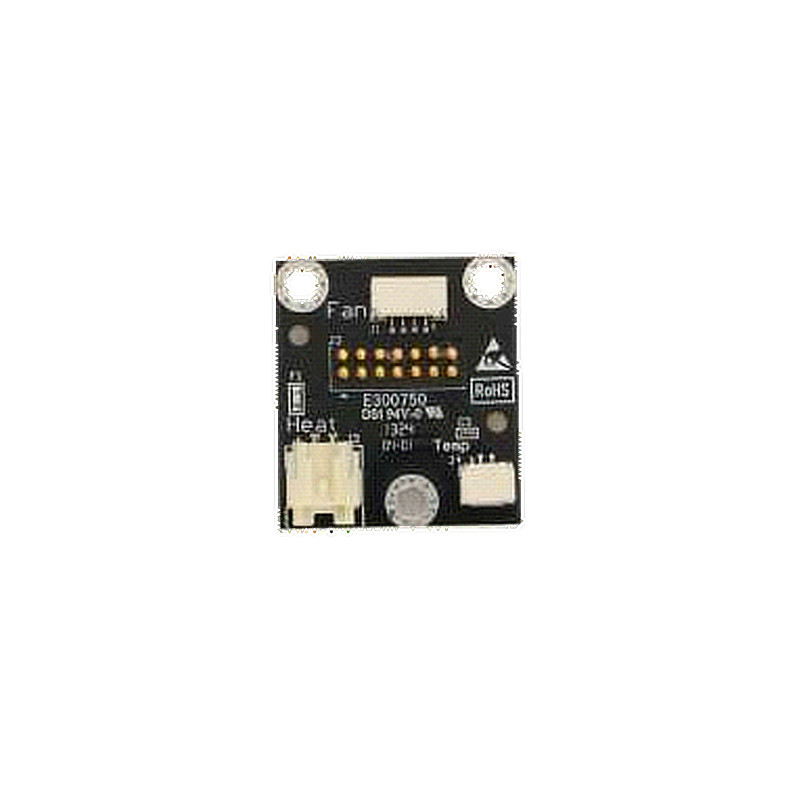

Pro3 [S]5.21.14004A02 6970240727705 Hotend Adapter Board RAISE-BOARD-HOTEND-PRO3
E2 & E2CF [S]5.04.07025A02 6970240727354 E2 Touchscreen Control Board RAISE-BOARD-TOUCHSCREEN-E2
E2 & E2CF [S]5.04.07011A01 6970240722861 E2 Motion Controller Board RAISE-BOARD-MOTION-E2
E2 & E2CF [S]5.04.07009A01 6970240722854 E2 Right Extruder Connection Board RAISE-BOARD-EXT-RIGHT-E2
E2 & E2CF [S]5.04.07008A01 6970240722847 E2 Left Extruder Connection Board RAISE-BOARD-EXT-LEFT-E2
E2 & E2CF [S]5.04.07004A01 6970240722670 E2 Filament Run-Out Sensor Board  RAISE-BOARD-E2.E2CF-FIL-RUNOUT-S
Pro2 [S]5.04.05013A02 6970240721352 Pro2 Motion Controller Board RAISE-BOARD-MOTION-PRO2
Pro2 [S]5.04.05012A01 6970240721802 Pro2 Nozzle Lifting System Control Board RAISE-BOARD-LIFTING-PRO2
Pro2 [S]5.04.05011A02 6970240721796 Pro2 Filament Run-out Sensor Control Board RAISE-BOARD-PRO2-FIL-RUNOUT-S
Pro2 [S]5.04.05008A02 6970240721383 Pro2 Extruder Connection Board RAISE-BOARD-EXT-PRO2
Pro2 & Pro3 [S]5.04.05003A01 6970240721369 Pro2 Endstop Limit Switch Board RAISE-BOARD-PRO23-ENDSTOP-BOARD
Pro2 [S]5.01.05032A02 6970240721826 Pro2 Nozzle Lifting System Control Board Cover RAISE-BOARD-LIFTING-COVER-PRO2
N [S]5.04.00115 6970240720690 X/Y Stepper Driver RAISE-BOARD-N-XY-DRIVER

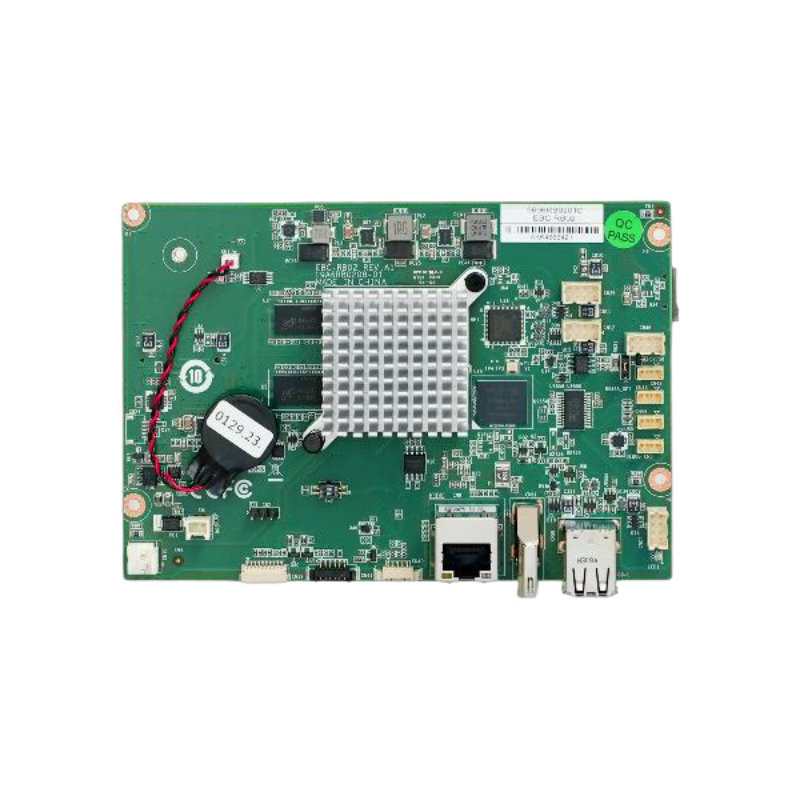

DF2 [S]5.21.16005A04 6942267301398 DF2 Main Controller Board  RAISE-BOARD-MOTION-DF2
Table 1: Compatibility of the various electronic boards with the Raise3D printer series. Source: Raise3D.

General information
Manufacturer Raise3D

Other
HS Code 8477.9
