PC FR - Bambu Lab

BL-PCFR-175-BLACK-1000
47.10 € 47.10 €
Tax excl.
Diameter
Format
Colour
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 5 - 8 days
Available for shipment within 5 - 8 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Tuesday 11 November - Friday 14 November

The PC-FR from Bambu Lab is a high-performance polymer filament designed for environments that require fire resistance, thermal stability, and mechanical robustness. It complies with the UL 94-2023 V-0 standard, certifying its minimal flammability and rapid self-extinguishing in case of fire exposure. This makes it ideal for electrical enclosures, automotive components, functional parts in industrial environments, and critical electronics.

Among its main physical properties, it offers an approximate density of 1.18 g/cm³, a Vicat softening temperature around 114 °C, and flexural and tensile strengths within professional standards. Its heat deflection under load (HDT) reaches about 113-114 °C, allowing work in high-temperature conditions without loss of shape or strength.

To achieve optimal results when printing with PC-FR, it is recommended to follow best practices that ensure material stability:

  • Pre-drying: 80 °C for 8 hours in a forced-air oven, or alternatively 90-100 °C on a heated bed for about 12 hours.
  • Keep ambient relative humidity below 20%, using sealed containers with desiccant.
  • Use a printer with an enclosure to minimize warping and shrinkage.

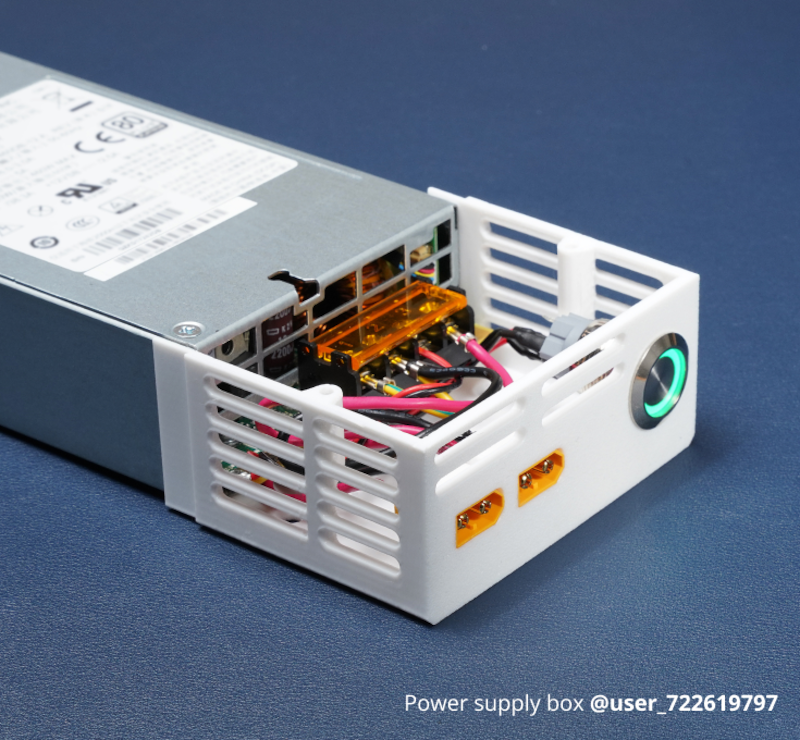

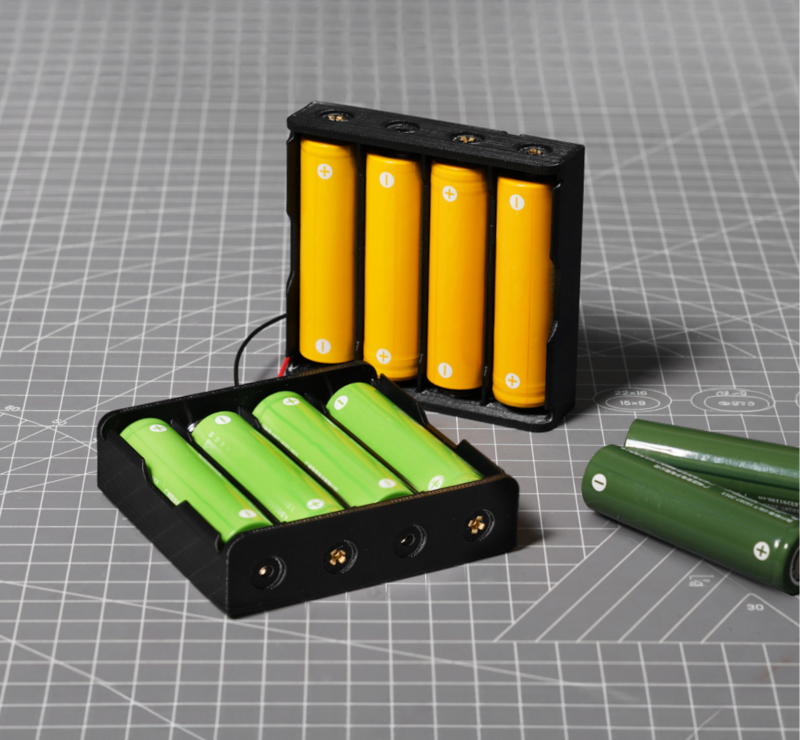

Recommended applications include structural parts requiring impact resistance, mechanical supports directly exposed to heat, electrical component boxes, enclosures in demanding environments, and objects where fire safety standards are required. It is also suitable for advanced home users with well-equipped printers.

As precautions, avoid using soft-material nozzles that may wear quickly, ensure good adhesion on the print bed (smooth or textured PEI plates are preferred), and use adhesives if necessary. Proper layer cooling settings and avoiding drafts significantly help prevent deformation.

General information

Material PC
Format Spool
Density (ISO 1183) 1.18 g/cm³
Filament diameter 1.75 mm
Filament tolerance ± 0.03 mm

Printing properties

Printing temperature 260 - 280 ºC
Print bed temperature 90 - 110
Chamber temperature 45 - 60
Cooling fan 0 - 60
Recommended printing speed < 300 mm/s

Mechanical properties

Charpy impact strength (ISO 179) 8.4 KJ/m²
Elongation at break (ISO 527) 2.4 %
Tensile strength (ISO 527) 60 MPa
Tensile modulus (ISO 527) 1670 MPa
Flexural strength (ISO 178) 90 MPa
Flexural modulus (ISO 178) 1890 MPa

Thermal properties

Melting temperature (DSC, 10 °C/min) 225 ºC
Softening temperature (ISO 306) 114 ºC

Other

HS Code 3916.9
Spool diameter (outer) 200 mm
Spool width 67 mm

Featured properties

Printing temperature
260 - 280 ºC
Filament diameter
1.75 mm
