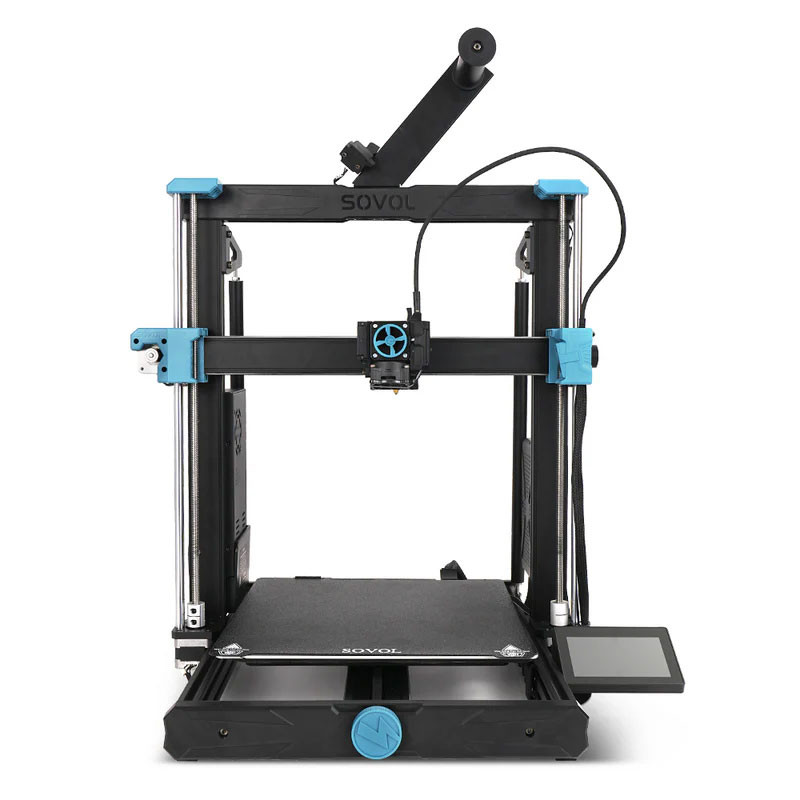

Sovol SV06 Plus ACE - FDM 3D Printer

SOVOL-SV036-PLUS-ACE
489.00 € 489.00 €
Tax excl.
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 10 - 15 days
Available for shipment within 10 - 15 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Monday 26 May - Monday 2 June

The Sovol SV06 Plus ACE offers a combination of speed, stability, and customizability. Designed for demanding users, its high-performance structure and industrial components make it an ideal solution for both professional prototyping and the creation of functional parts with high-quality finishes.

This FDM 3D printer from Sovol has a large printing volume of 300 x 300 x 350 mm and reaches speeds of up to 500 mm/s, with a maximum acceleration of 15000 mm/s². Its reinforced triangle structure, along with the metal linear bearings on the X and Y axes, ensures stable, silent, and precise operation even at high speeds.

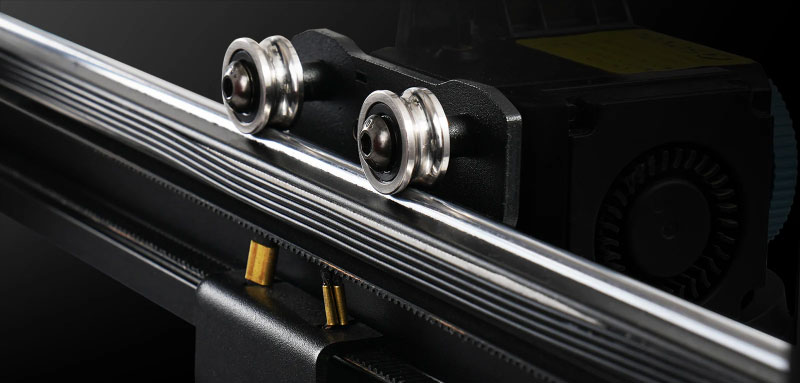

The SV06 Plus ACE has metal bearings on its X and Y axes, which guarantees stable printing.

Photo 1: The SV06 Plus ACE has metal bearings on its X and Y axes, which guarantees stable printing. Source: SOVOL

The SV06 Plus ACE incorporates automatic leveling using a smart probe and dual Z motors, in addition to a direct extrusion system capable of feeding filament consistently, even with flexible materials. Its nozzle allows printing at temperatures up to 300 °C, while the printing bed reaches 100 °C and is coated with a flexible PEI surface.

The interface is managed from a 4.3-inch color touch screen. The Sovol SV06 Plus ACE includes an integrated camera for remote monitoring and, through the Obico app, it is possible to receive defect detection alerts, recover printing after power outages, among other functions.

Video 1: Presentation of the SOVOL SV06 Plus ACE, a highly customizable FDM printer.

Detailed Features of the Sovol SV06 Plus ACE

🚀Professional performance and solid structure

The SV06 Plus ACE FDM 3D printer features an innovative metal linear bearing system on the X and Y axes, combined with industrial guides, which ensures more precise, stable, and silent movement. This improves both the print quality and the durability of the equipment, ideal for those who print daily.

The reinforced triangular structure with diagonal rods on the Z-axis provides stability even during large prints or at high speeds, minimizing vibrations that could affect the finish of the parts.

Video 2: Timelapse of a 3D print with the SOVOL SV06 Plus ACE

🧠Automatic leveling and intelligent printing

The advanced automatic leveling has a smart probe that adjusts the layer thickness according to the geometry of the part. The dual Z-axis motors also help eliminate human errors when preparing the printing bed.

Thanks to the pre-installed Klipper firmware and technologies that compensate for pressure in the nozzle, the Sovol SV06 Plus ACE achieves cleaner surfaces, without vibrations or artifacts, even at high speeds.

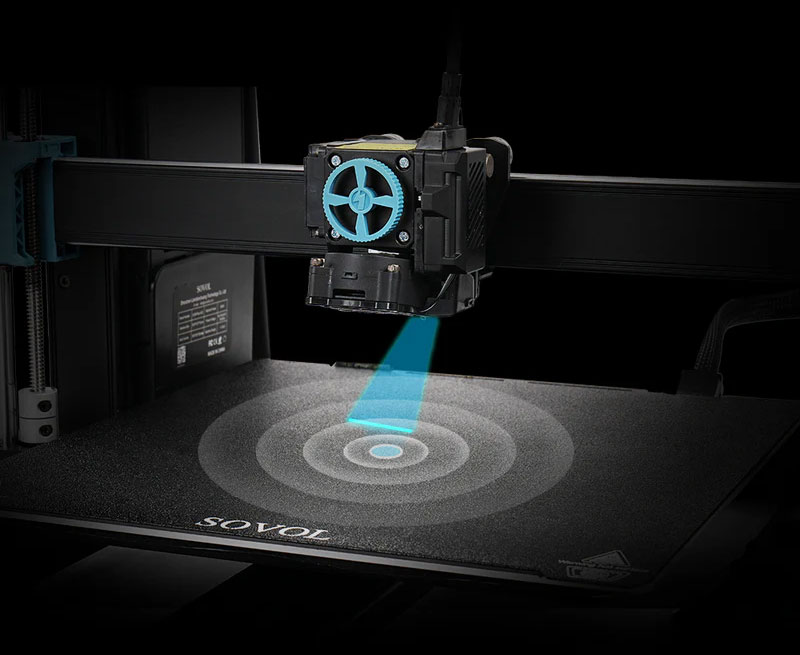

The SV06 Plus ACE offers efficient automatic calibration.

Photo 2: The SV06 Plus ACE offers efficient automatic calibration. Source: SOVOL

🎥 Integrated camera and control from your mobile

One of the great advantages of the Sovol SV06 Plus ACE printer is the built-in camera, which allows monitoring prints from anywhere. Compatible with the Obico app, it is possible to receive alerts, see the status in real-time, or create timelapse videos. It is even possible to automatically pause printing if errors or adhesion failures are detected.

🔥 Powerful extruder and compatibility with multiple materials

The direct drive extruder with dual gears ensures constant feeding, even with flexible or high-friction filaments. Thanks to the 300 °C nozzle and the 100 °C heated bed, you can print with PLA, PETG, ABS, TPU without complications.

A powerful 4020 fan (40 x 40 x 20mm) generates an airflow that ensures ideal cooling, improving adhesion between layers and reducing unwanted effects such as warping.

Video 3: A user reviews the SOVOL SV06 Plus ACE and shows the results with different 3D prints.

📱 Intuitive interface and smooth experience

The SV06 Plus ACE has a 4.3” color touch screen that makes navigating menus, preparing models, or starting prints faster and more convenient. From leveling to advanced parameters, everything is within reach with a single touch.

In addition, it has a filament runout sensor to avoid wasting time or valuable materials.

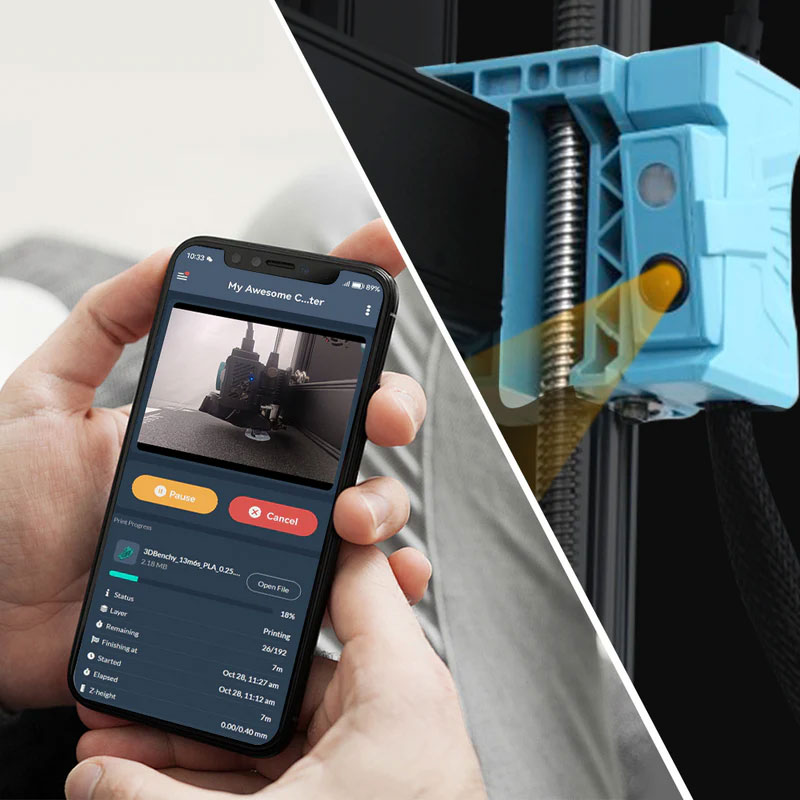

The integrated camera in the SOVOL SV06 Plus ACE allows monitoring prints in real-time.

Photo 3: The integrated camera in the SOVOL SV06 Plus ACE allows monitoring prints in real-time. Source: SOVOL

🧩 Customizable and completely open-source

The Sovol SV06 Plus ACE is an open-source 3D printer, both in hardware and software. You can customize it, add extensions, modify the firmware, or try new print profiles. Ideal for makers, developers, or advanced users looking for maximum control.

🏁 Industrial performance at an accessible price

With superior printing speed, large build volume, professional precision, and intelligent functions such as an integrated camera, the Sovol SV06 Plus ACE meets all the requirements to be a professional printer. Perfect for workshops, engineers, designers, or enthusiasts looking for performance, reliability, and creative freedom.

Video 4: According to users, the SOVOL SV06 Plus ACE is positioned as one of the best FDM 3D printers for its size, price, and quality ratio.

General information

Manufacturer Sovol
Technology FDM/FFF

Printer properties

Filament diameter 1.75 mm
Print volume 300 x 300 x 350 mm
Number of extruders 1
Nozzle diameter 0.4 mm (included), 0.6 mm, 0.8 mm
Type of screen Touch
End of filament sensor
Printing surface Flexible
Self-leveling
Extrusion system Direct
Screen size 4.3"
Nozzle clogging sensor
Compatible with third-party materials

Software and connectivity

Software Orcaslicer
Compatible with third-party software Prusaslicer, Cura
WiFi connectivity
LAN/Ethernet connectivity Si

Printing properties

Maximum extrusion temperature 300 ºC
Maximum base temperature 100 ºC
Maximum chamber temperature 20 ºC

Electrical properties

Automatic resume after power failure

Other

HS Code 8477.5900

For more information about the SV06 Plus ACE FDM 3D printer, consult the SOVOL wiki.

Featured properties

Print volume
300 x 300 x 350 mm
Maximum print speed
500 mm/s
Maximum extrusion temperature
300 ºC
Maximum base temperature
100 ºC
