Resin Engineering Rigid Ceramic Pro Phrozen

Name: Resin Engineering Rigid Ceramic Pro Phrozen
Brand: Phrozen
SKU: RS-PHR-RCPRO
Price: 177.99 EUR
Availability: InStock

SKU: RS-PHR-RCPRO-500

177.99 €

Tax excl.

Format: 500 g

Colour: White

Ver todas las opciones

Volume discounts

Buy 10 units

Save 10%

1,601.91 € Tax excl. Unit price 160.19 € 177.99 €

Quantity

In stock 3 units available for immediate shipping.
units available for shipping in 1 - 3 days Disponible a partir de Available for shipment within 1 - 3 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Tuesday 15 September

Returns

Ask about this product

Phrozen's Engineering Rigid Ceramic Pro resin is a highly specialized industrial resin. Its high rigidity and heat resistance make it a reliable choice for the most demanding production processes. With a ceramic content of over 70%, it's perfect for injection molding and other industrial processes. Thanks to its unique properties, it offers faster and more cost-effective solutions for small batch manufacturing and custom molds.

Properties of Ceramic Pro resin for injection molds

Image 1: Properties of Ceramic Pro resin for injection molding. Source: Phrozen

The Ceramic Pro resin is characterized by its extreme rigidity and heat resistance up to 280ºC. It also has high resistance to thermal and chemical deformation. Additionally, its low viscosity makes it easy to use and optimizes production time. These features make it an excellent choice for producing molds that must withstand high temperatures during the injection molding process. Molds printed with Ceramic Pro can be made in less than 9 hours and at a much lower cost.

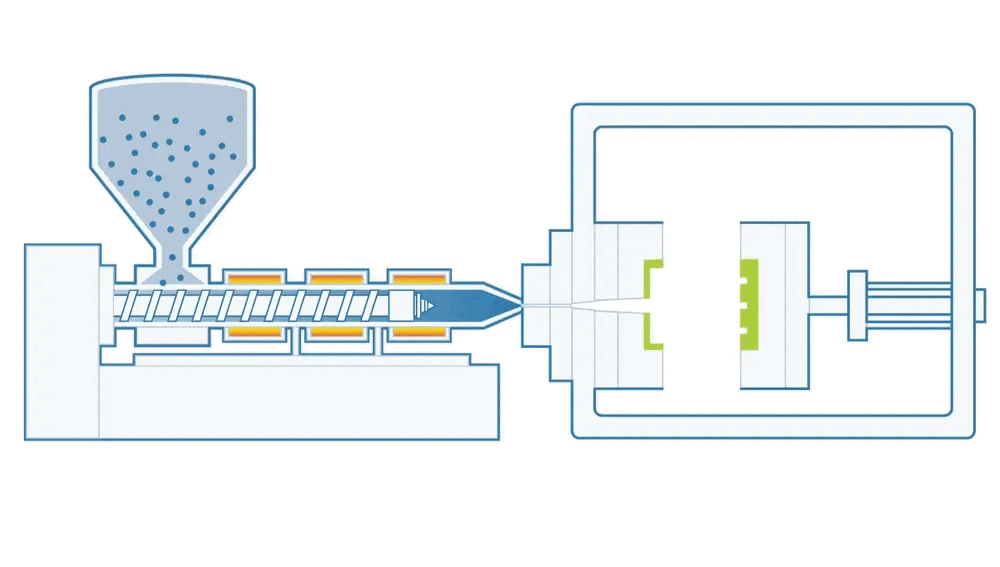

Incorporating 3D printing into injection molding production

Image 2: Incorporating 3D printing into injection mold production. Source: Phrozen

One of the most notable applications of Rigid Ceramic Pro resin is its use in overmolding wires and other components. This process involves covering a base part with an additional layer of material, improving its properties. The Rigid Ceramic Pro resin is ideal for creating molds with great precision and durability. It’s especially useful when electrical insulation or protection from environmental factors, such as moisture or dust, is required.

The Rigid Ceramic Pro resin is a standout option for demanding industrial applications due to its mechanical and thermochemical properties. With a bending modulus of 10.086 MPa, it’s extremely resistant to deformation under load, making it perfect for high-precision molds.

Accelerated production process with 3D printing.

Image 4: Accelerated mold production process thanks to 3D printing. Source: Phrozen

The Engineering Rigid Ceramic Pro resin, which joins the Phrozen catalog, offers a fast, cost-effective, and efficient way to manufacture injection molds and functional components for the Sonic Mini 8K, Sonic Mighty, and Sonic Mega printers. Thanks to its exceptional properties of rigidity, heat resistance, and versatility, this resin significantly reduces production costs and manufacturing time while ensuring high quality and precision in designs.

General information
Manufacturer	Phrozen
Material	Photopolymer
Format	Bottle
Density	(@ 20 °C) 1.645 g /cm³ g/cm³
Technology	DLP/LCD
Viscosity	BROOKFIELD Viscometer (LV) 230 - 300 cps MPa
Viscosity	BROOKFIELD Viscometer (LV) 230 - 300 cps MPa
Density (liquid)	(ASTM D4052-18a) 1.65 g/cm³ g/cm³
Density (liquid)	(ASTM D4052-18a) 1.65 g/cm³ g/cm³

Printing properties
Layer height	50 µm
Layer height	50 µm
Layer exposure time	2 ± 0.5 s
Layer exposure time	2 ± 0.5 s

Curing and washing properties
Washing time	1 min
Washing time	1 min
Curing time	120 min
Curing time	120 min

Mechanical properties (uncured / cured)
Izod impact strength	(ASTM D256) 18.4 KJ/m²
Elongation at break	(ASTM D638) 1 %
Elongation at break	(ASTM D638) 1 %
Tensile strength	(ASTM D638) 68.4 MPa
Tensile strength	(ASTM D638) 68.4 MPa
Tensile modulus	(ASTM D638) 8325.8 MPa
Tensile modulus	(ASTM D638) 8325.8 MPa
Flexural strength	(ASTM D790) 84 MPa
Flexural strength	(ASTM D790) 84 MPa
Flexural modulus	(ASTM D790) 10086 MPa
Flexural modulus	(ASTM D790) 10086 MPa
Surface hardness	(ASTM D2240) Shore D >90D
Surface hardness	(ASTM D2240) Shore D >90D
