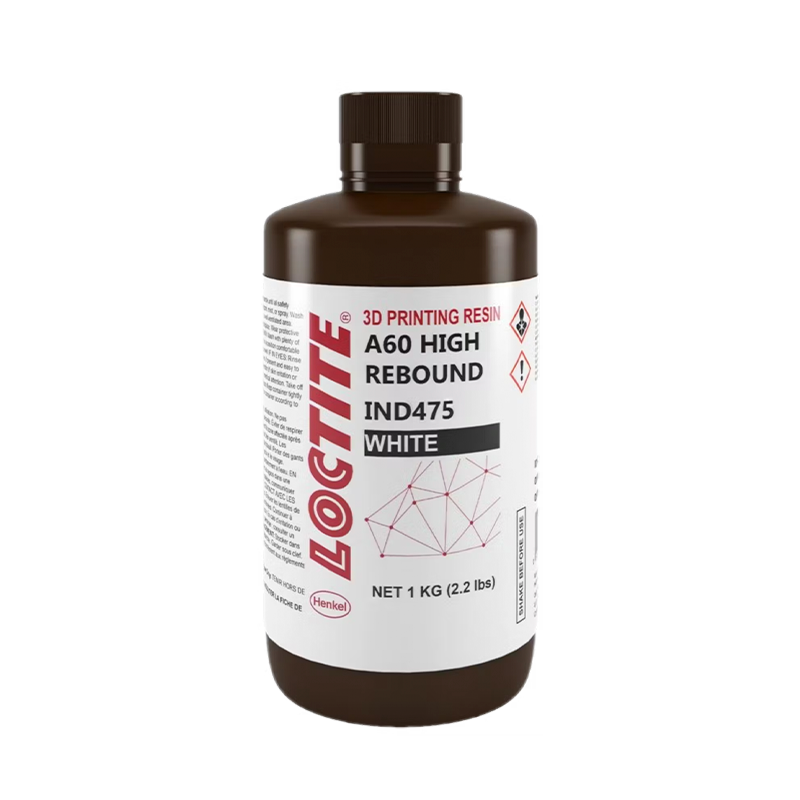

IND475 resin - Loctite 3D

RS-LOC-IND475-A60-WHITE-1KG
225.00 € 225.00 €
Tax excl.
Format
Colour
Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 5 - 7 days Available for shipment within 5 - 7 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Friday 22 November - Tuesday 26 November
Available

The IND475 A60 High Rebound resin from the Loctite family of elastomeric resins is a single component elastomer material characterized by a good elongation at break (201 %) with a good level of hardness and strength, and low shrinkage during printing. Parts 3D printed with this resin offer a high energy return (55 %).

The IND475 A60 High Rebound resin is the perfect material for the additive manufacturing of functional prototypes, lattice structures, cushioning pads, flexible seals and housings, air and dust gasket, or any parts that require resilience, snapback and tear resistance.

A lattice structure 3D printed with the Loctite IND475 A60 High Rebound resin

Image 1: A lattice structure 3D printed with the Loctite IND475 A60 High Rebound resin. Source: Loctite.

The IND475 A60 High Rebound resin has been formulated to print optimally on industrial DLP printers. Before printing with this material, the user should read safety and technical information available in the Downloads section. In the Usage Tips section useful resources can be found on printer compatibility, recommended post-processing settings, and proper resin storage.

Curing, washing, and sintering properties
Washing time 4 min
Curing time 5 - 90 min
Curing temperature - ºC

General information
Manufacturer Loctite
Material Photopolymer
Format 1 kg / 5 kg
Technology DLP/LCD
Wavelength - nm
Viscosity (ASTM D7867) @ 25 ºC: 1400 cP
Density (solid) (ASTM D792) 1.04 g/cm³
Density (liquid) (ASTM D1475) 1.02 g/cm³

Printing properties
Layer height - µm
Layer exposure time -
Layer off time -
Lifting height - mm
Bottom layer exposure -
Bottom layer count -

Mechanical properties
Izod impact strength - KJ/m²
Charpy impact strength - KJ/m²
Elongation at break (ASTM D638) 201 %
Tensile strength (ASTM D638) 3.1 MPa
Tensile modulus (ASTM D638) 1.1 MPa
Flexural strength - MPa
Flexural modulus - MPa
Surface hardness (ASTM D2240) Shore 57 A

Electrical properties
Volumetric resistivity (ASTM D257) 8.95E +11 Ω/cm
Surface electrical resistivity (ASTM D257) 2.53E +13 Ω/cm
Dielectric strength (ASTM D149) 29.6 kV/mm
Dielectric constant (ASTM D150) 4.3-5.1
Dissipation factor (ASTM D150) 0.061-0.107

Thermal properties
Softening temperature - ºC

Specific properties
Maximum water absorption (ASTM D570) 24 h: 2.1 ± 0.1 % / 72 h: 4.5 ± 0.1 % / 168 h: 6.5 ± 0.1 %

Other
HS Code 2916.1
Lifetime (since manufacturing) - M

On the Henkel YouTube channel, various videos are available on:

  1. How to work with 3D printing resins:

    Video 1: The basics of printing with resin. Source: Henkel.
  2. How to properly store 3D printing resins:

    Video 2: How to properly store resins. Source: Henkel.
  3. How to post-process parts 3D printed with resin:

    Video 3: Resin post-processing tips. Source: Henkel.

The material's technical and safety datasheets can be found in the Downloads section. On the manufacturer's website the user can find the printer validation information as well as the recommended printing and postprocessing settings.

Featured properties

Technology
DLP/LCD
