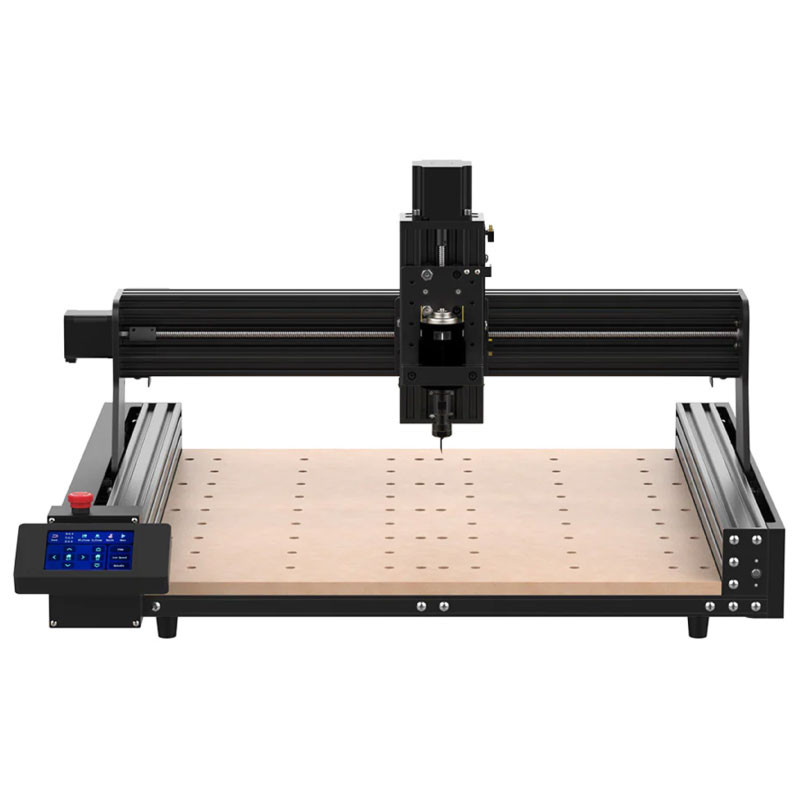

Two Trees TTC450 CNC Machine

The Two Trees TTC450 is a CNC milling machine that stands out for its balance between performance, precision, and accessibility. Designed to meet the needs of professionals, makers, and DIY enthusiasts, this machine offers a versatile solution for a wide range of applications.

Video 1: Presentation of the Two Trees TTC450 CNC milling machine.

Robust Construction for Optimal Stability

The metal structure of the TTC450 is reinforced with high-quality threaded rods, ensuring exceptional stability during operation. This solid construction minimizes vibrations and ensures precise cuts, even during prolonged work sessions.

Large Working Area for Diverse Applications

With working dimensions of 460 x 460 x 80 mm, the TTC450 allows for everything from detailed artistic projects to series production work. Its versatility makes it suitable for various sectors and needs, including prototype creation, personalized decoration, and manufacturing of functional parts.

Video XX: The TTC450 CNC milling machine allows you to create incredible high-precision designs.

Powerful and Adaptable Spindle

Equipped with a standard 80W spindle that reaches up to 7,000 rpm, the TTC450 is ideal for materials such as wood, acrylic, and plastics. For applications requiring greater capacity, an optional 500W spindle is offered, capable of reaching up to 12,000 rpm, which improves speed and efficiency in engraving and cutting more demanding materials.

0.01 mm Engraving Precision

The TTC450 features a 3-axis (X, Y, Z) motion control system, with limit stops on each axis, ensuring an engraving precision of up to 0.01 mm. This high precision is essential for the creation of fine and complex details on a variety of materials.

Photo 1: 1) Offline LED Controller: includes a TF card, allowing it to operate offline via the smart panel. 2) Emergency Stop Switch: ensures safe operation; when activated, it automatically resets the original operation. 3) Power Supply: spindle drive synchronization on X, Y, and Z axes, torque on the Y axis, precise positioning, and an engraving accuracy of up to 0.01 mm. 4) 80W Spindle: The router machine is equipped with an 80W spindle. If the power is insufficient, it can be replaced with a 500W one.

Flexible Connectivity – Online and Offline

The operation of the TTC450 machine is simple thanks to its smart touchscreen and the possibility of controlling it remotely via WiFi, from a computer or a mobile application. Furthermore, it supports both online and offline operation, allowing greater flexibility in its use.

Photo 2: 1) The X and Y axis cable guide uses a hidden drag chain, which prevents tangles and offers a cleaner and simpler design. 2) Full Aluminum Support: the CNC machine structure is made of 4080 aluminum, making it more solid, stable, and difficult to move. 3) Collet Sets: Collet sets are available in two sizes: 1/8 inch and 6 mm with ER11 collets. It is possible to purchase the appropriate bits according to each need. 4) Software Compatibility: The CNC milling machine is compatible with GRBL software and Windows XP/7/8/10 and Mac OS systems.

Compatibility with Various Materials and Formats

The TTC450 can work on a wide variety of materials, including wood, acrylic, industrial plastics, PVC, PVB, and even soft aluminum. It is capable of performing 2D and 3D engravings, scans, contours, and more. Additionally, it is compatible with formats such as NC, DXF, BMP, JPG, PNG, and GCODE, which facilitates integration with different design and manufacturing software.

Conclusion

The Two Trees TTC450 is a CNC milling machine that combines precision, power, and versatility in a single tool. Its robust construction, large working area, and connectivity options make it an outstanding choice for those seeking a reliable and efficient solution for their engraving and cutting projects.

Photo 3: The CNC machine allows engraving and carving different materials. Source: Two Trees
