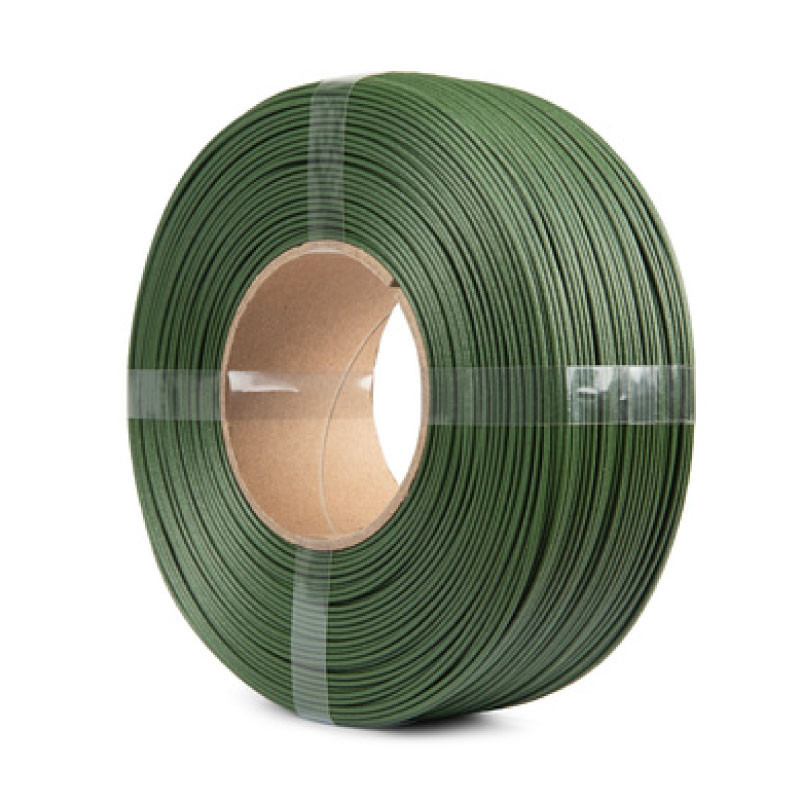

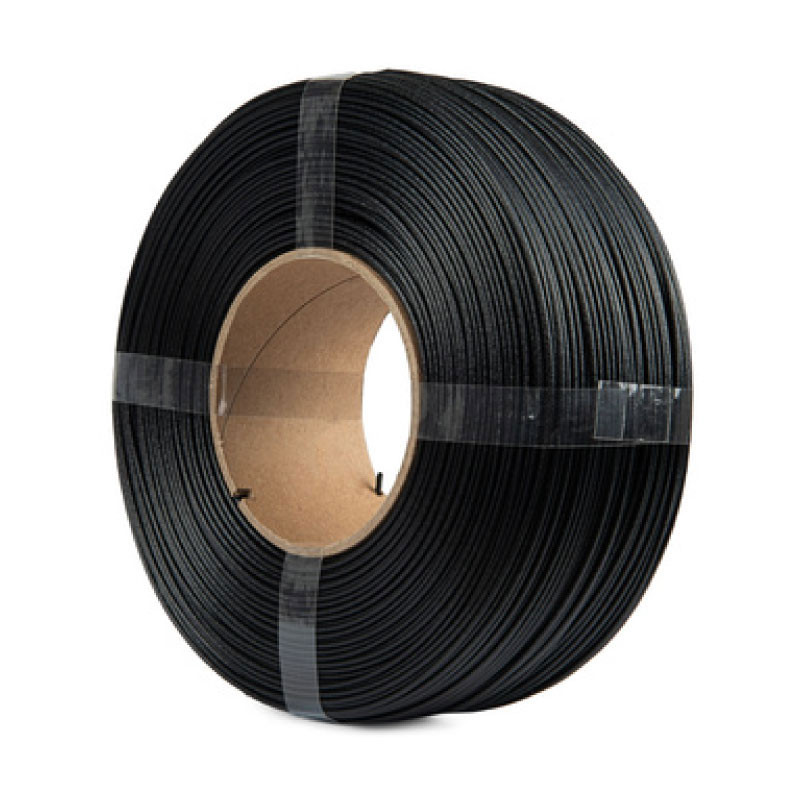

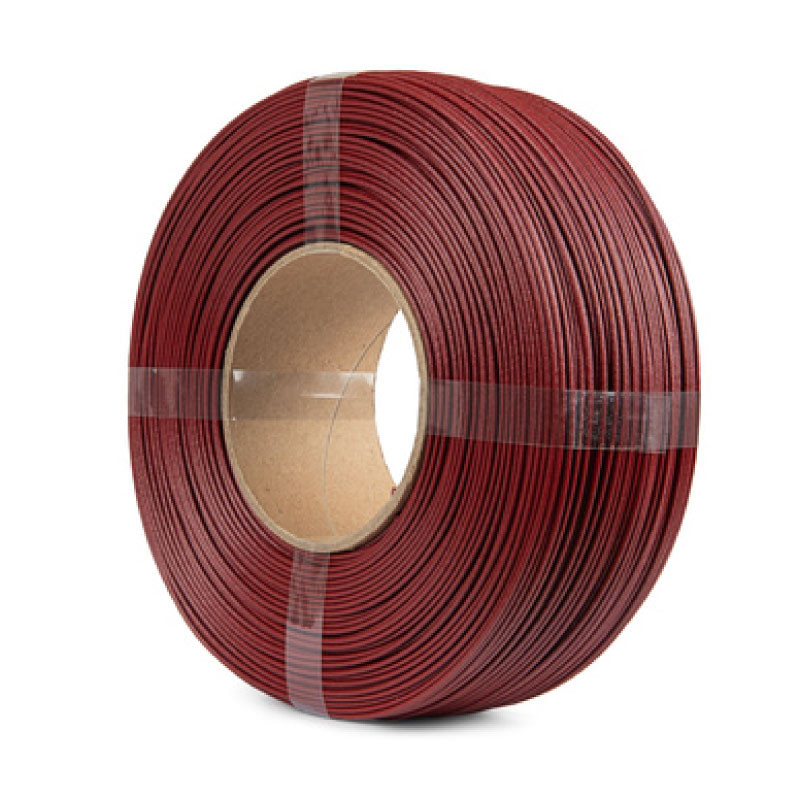

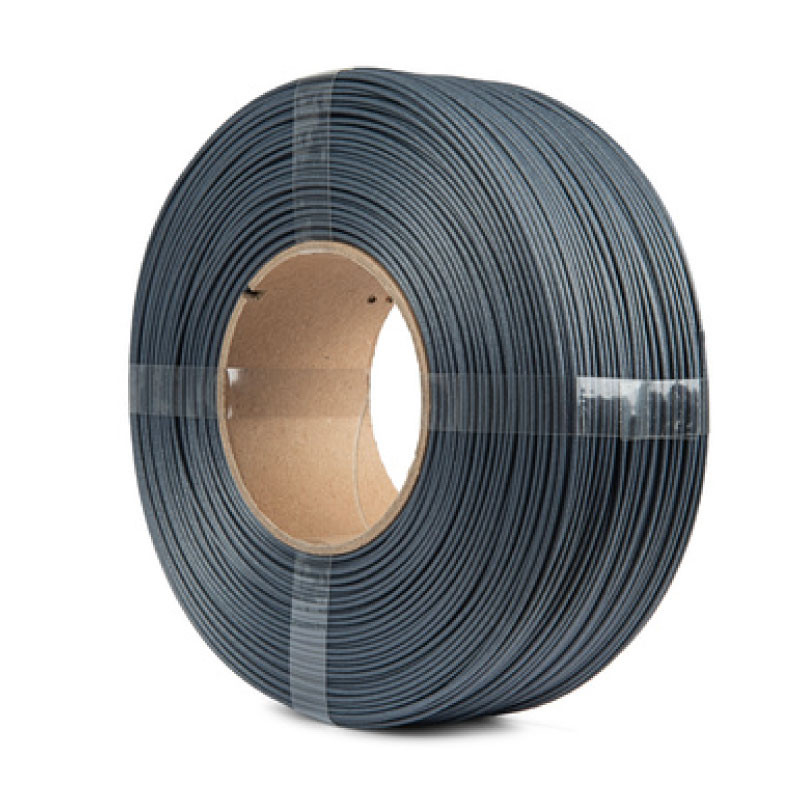

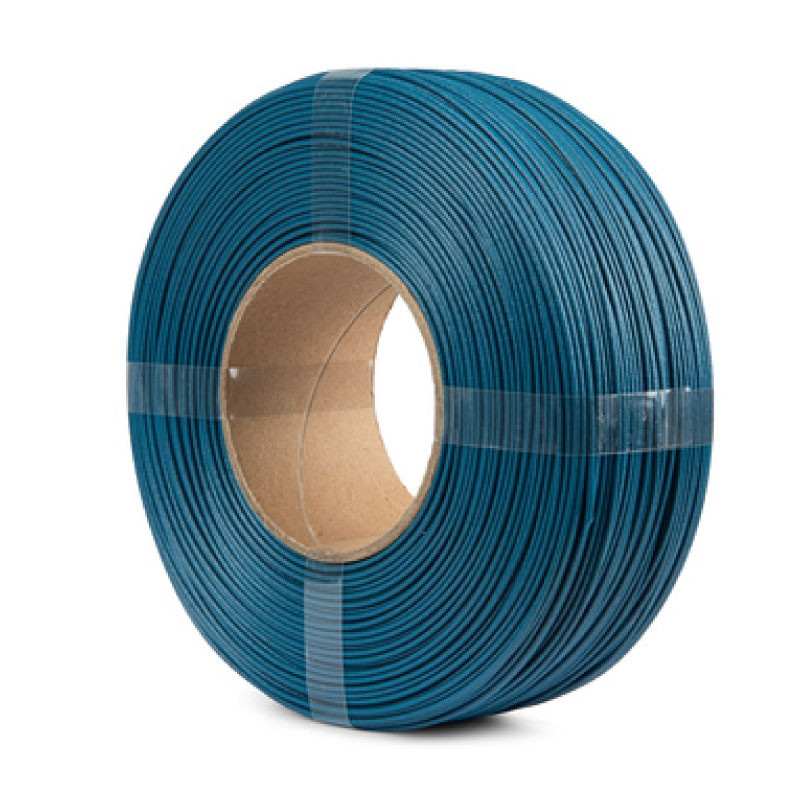

ASA CF Refill - The Filament

Ref.: TF-ASA-CF-RF-K-175-1000

22.68 €

Tax excl.

Diameter

Format

Colour

Quantity

In stock 0 units available for immediate shipping.
units available for shipping in 6 - 14 days Available for shipment within 6 - 14 days

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Tuesday 11 November - Friday 21 November

Returns

Ask about this product

The ASA CF ReFill filament from The Filament combines professional performance, sustainability, and precision in a single material. Designed to offer superior resistance to weather, UV rays, and humidity, this composite filament made of ASA reinforced with carbon fibre ensures rigidity, dimensional stability, and exceptional durability, even under demanding outdoor conditions. Moreover, its ReFill format with an eco-friendly cardboard core is fully compatible with BambuLab reusable spools, reducing plastic use and supporting a more sustainable 3D printing model.

ASA CF ReFill Filament: high performance with environmental commitment

The ASA CF ReFill filament has been designed with both print quality and environmental care in mind. Thanks to its recyclable cardboard spool and compatibility with reusable systems, this format significantly reduces plastic waste. If you don’t have a BambuLab spool, you can easily download and print a spool model available on The Filament website, ensuring maximum compatibility with any FDM 3D printer.

Technical performance of ASA CF ReFill filament

The combination of ASA and carbon fibre provides outstanding rigidity and excellent dimensional stability, even under mechanical or thermal stress. This filament is ideal for housings, supports, brackets, and automotive components where maintaining shape and functionality under sunlight, humidity, or high temperatures is essential. Its UV and heat resistance makes it an ideal choice for outdoor and technical applications.

Aesthetic finish and professional precision

Parts printed with ASA CF ReFill filament feature a clean, matte, and technical finish, with minimal layer lines and a carbon-fibre texture that enhances their professional appearance. This material offers stable and smooth printing with low warping risk, ensuring consistent results for industrial prototypes, functional parts, and conceptual models. Available in various colours, it combines aesthetics and functionality without compromise.

Advantages of choosing ASA CF ReFill for professional 3D printing

The ASA CF ReFill from The Filament provides an advanced and eco-friendly solution for professional projects. Its optimized formula delivers mechanical strength, dimensional precision, and a premium finish, while its sustainable design helps reduce environmental impact. It is the ideal filament for those seeking durable, precise, and environmentally responsible 3D prints.

General information
Material	ASA
Format	1 Kg
Density	(D 792) 1.07 g/cm³
Filament diameter	1.75 mm
Filament tolerance	±0.03 mm
Filament length	388,6 m

Printing properties
Printing temperature	230-265 ºC
Print bed temperature	75-100 °C
Chamber temperature	-
Cooling fan	0-20%
Recommended printing speed	40-200 mm/s
Recommended nozzle	Hardened Steel

Mechanical properties
Izod impact strength	(D 256) 450 KJ/m²
Elongation at break	(D 638) 34 %
Tensile modulus	(D 638) 1870 MPa
Flexural strength	(D 790) 63 MPa

Thermal properties
Softening temperature	(D 1525) 92 ºC

Other
HS Code	3916.9

The ASA CF filament offers heat resistance up to 86°C, making it ideal for parts that require durability and stability under heat. For high-quality prints, it is recommended to use a nozzle temperature between 235°C and 270°C and a heated bed between 75°C and 100°C, ensuring proper adhesion and preventing warping.

The recommended print speed ranges between 40 and 200 mm/s, allowing adaptation to both detailed prints and large, fast parts. The layer fan should be kept low, between 0 and 20%, to preserve the rigidity and professional finish of the ASA CF filament.

For large parts, it is suggested to use a closed chamber, which helps maintain a stable temperature and reduces the risk of warping or deformation. Although the filament does not require adhesive, using products such as Dimafix, 3DLac or Magigoo can improve adhesion and prevent corner lifting in complex parts.

It is recommended to use hardened nozzles or ruby nozzles to protect the nozzle and ensure durability when printing carbon fiber reinforced filament. Filament drying is not necessary before printing, thanks to its low moisture absorption, making it easy to handle for industrial and creative projects.

With these guidelines, the ASA CF filament allows the creation of mechanical parts, functional prototypes and conceptual models with a professional finish, high precision and resistance to demanding conditions, optimizing every 3D print.
