Dental Resin - HARZ Labs

HARZ Labs is a resin manufacturer with extensive experience in chemical products, especially polymers, which develops and produces high quality materials for all types of 3D resin printer technologies (DLP / LCD, SLA, CJP and others).

The range of HARZ Labs Dental Resin has materials that cover all the needs of the dental sector, facilitating and optimizing the majority of manufacturing processes they perform.

     Dental Cast

     Dental Clear

     Dental Yellow Clear

     Dental Peach

     Dental Sand

     Dental Pink

All these resins are odorless and do not cause irritation because they do not contain volatile components such as solvents, monomers or other type of irritating compound, which allows these resins to be used in any space that has natural ventilation, without the need for forced ventilation. Other properties that share these materials, less Dental Cast, is biocompatibility and low contraction. Biocompatibility is achieved by producing these resins with the same raw material used for tooth fillings, a photopolymer that complies with ISO 10993. The low shrinkage, less than 0.5 %, ensures that the printed part is exactly the same as the 3D model, something crucial in the dental sector.

Dental Cast (LCD / DLP)

HARZ Labs Dental Cast Resin is an ideal material for foundry (casting) dental implants such as crowns, metal bridges and ceramic bridges. Its main advantage is that the percentage of waste in the form of ashes is practically zero (less than 0.1 %), preventing the final pieces from containing some kind of impurity. Another advantage is the precision that is achieved when using this material, both of the printed piece and of the piece obtained after casting. HARZ Labs Dental Cast Resin shows a thermoplastic behavior that provides a fusion in a wide temperature range (250 - 300 ºC), which in turn produces a smooth surface in the final metal parts. In addition, this resin allows a rapid smelting cycle, 30 minutes at 950 °C, in which the resin is completely burned without leaving any remains.

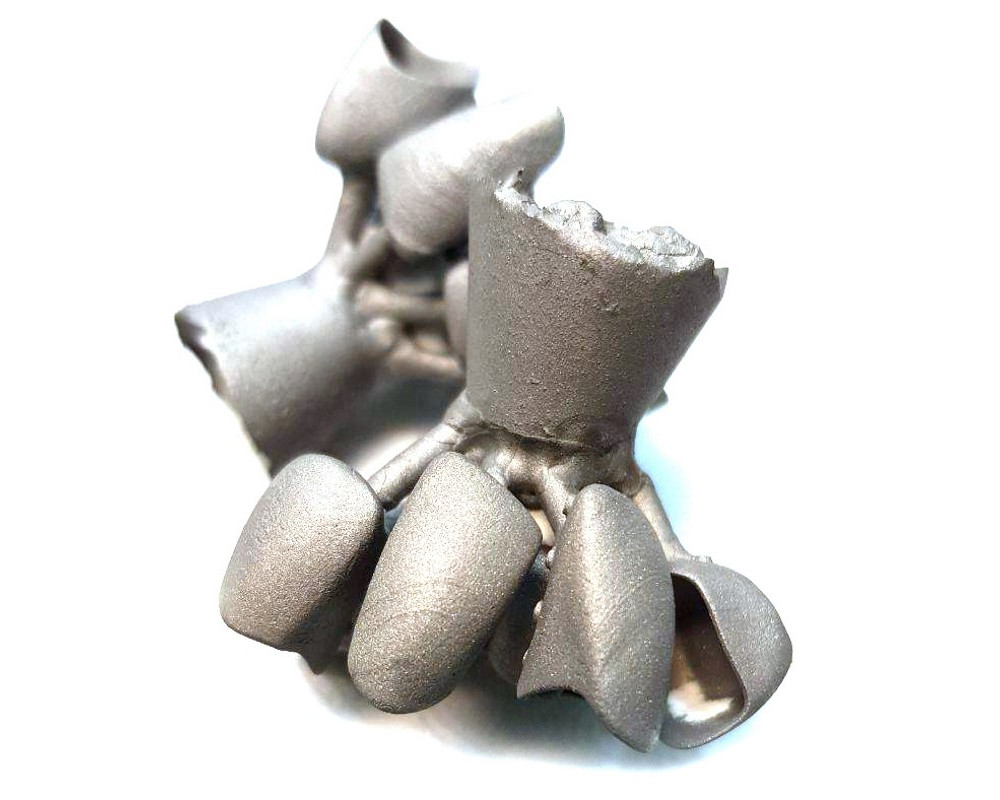

Image 1: Prótesis dentales fabricadas con molde HARZ Labs Dental Cast Resin. Source: HARZ Labs

Dental Clear (SLA and LCD / DLP)

HARZ Labs Dental Clear Resin is a resin with appearance and hardness similar to PMMA, material developed to print pieces that are used in dental applications, where transparency is one of the most important needs. Unlike other resins, HARZ Labs Dental Clear Resin stands out for its relatively low density, which provides high accuracy for short print times, as well as facilitating the time spent on cleaning the printer. Its great hardness and tensile strength, together with its great transparency and low coloration (yellowing) after curing, makes this resin the ideal material for printing pieces for programming operations, aligners or surgical guides.

Image 2: Splints made with HARZ Labs Dental Clear Resin. Source: HARZ Labs

Dental Yellow Clear (LCD / DLP)

Like the aforementioned resin, HARZ Labs Dental Yellow Clear Resin is a material with a hardness similar to PMMA, biocompatible (ISO 10993) and with great tensile strength, but with a lower percentage of transparency. This resin has the ability to recreate dental models with the exact size and fit, even in cases where the complexity of the piece is high. Finally, HARZ Labs Dental Yellow Clear Resin has a high heat resistance, being stable continuously with temperatures up to 100 °C and up to 180 °C in short intervals of time, which allows any user to print molds for casting in cold silicone, hot or even molds for two component resins.

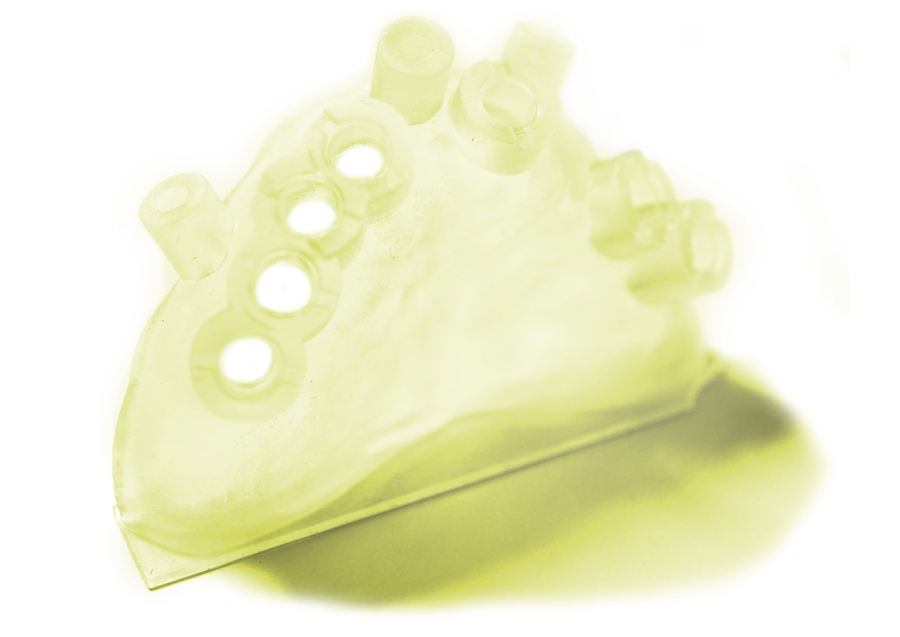

Image 3: Dental model manufactured with HARZ Labs Dental Yellow Clear Resin. Source: HARZ Labs

Dental Peach (SLA and LCD / DLP)

With a very peculiar pale orange color, HARZ Labs Dental Peach Resin is a resin composed of biocompatible raw materials that are used in dental products, such as fillings and others that are manufactured with photopolymers. It emphasizes its precision when printing complex dental pieces and its simplicity of use regardless of user level. The pigments and the rest of substances that compose this resin behave in a stable way, property that together with the high resistance to heat and its good mechanical properties, allow to print master models of jaws.

Image 4: Jaw made with HARZ Labs Dental Peach Resin. Source: HARZ Labs

Dental Sand (SLA and LCD / DLP)

HARZ Labs Dental Sand Resin is a resin that has the color A1 or A2 of the VITA color scale depending on the curing setting that is applied. The VITA color scale is the international reference system used in the dental field to standardize the different shades of teeth that exist and thus reproduce crowns and bridges with complete accuracy. The mechanical properties of this resin are very high: high hardness, tensile, abrasion and scratch resistance; All this thanks to being alloyed with ceramic elements. Another advantage of HARZ Labs Dental Sand Resin is the chemical stability against elements such as solvents and corrosive inorganic products (acids and alkalis). All these properties together make HARZ Labs Dental Sand Resin an ideal material for printing crowns and temporary bridges.

Image 5: Teeth manufactured with HARZ Labs Dental Sand Resin. Source: HARZ Labs

Dental Pink (LCD / DLP)

HARZ Labs Dental Pink Resin completes the range of HARZ Labs dental resins. It shows a bright pink color ideal for printing real dental models, simulating the gum area. Its relatively low density provides high precision for short printing times, as well as facilitating the time spent cleaning the printer. Apart from this, it has excellent mechanical properties, tensile strength of 60 MPa, high chemical resistance especially to acids and solvents. This coupled with the stability of the pigments and substances that make up this resin, allows any user to print resistant end pieces.

Image 6: Gums made with HARZ Labs Dental Pink Resin. Source: HARZ Labs

Below is a table with the availability of each HARZ Labs Dental Resin with each type of 3D resin printer technology:

	SLA	LCD / DLP
Dental Cast
Dental Clear
Dental Yellow Clear
Dental Peach
Dental Sand
Dental Pink
