CFS-C - Creality Multi-Material Filament System

The CFS-C (Creality Filament System) is the ultimate solution for professional multicolor 3D printing and smart filament management for Creality K1. Designed to maximize efficiency, reduce material waste, and automate your workflow, it transforms any K1 series 3D printer into an advanced production platform. This system is ideal for upgrading Creality 3D printers to multicolor printing without complex modifications.

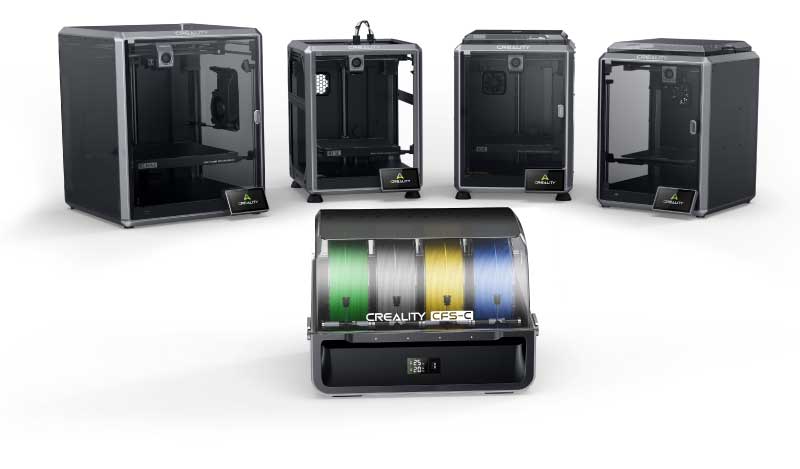

Compatible with Creality K1 Max, Creality K1C, Creality K1, and Creality K1 SE, the CFS-C integrates via firmware update, delivering a professional multicolor system for continuous, high-reliability 3D printing.

Upgrade Creality 3D Printers to Multicolor Without Hardware Modifications

The CFS-C includes an external filament cutter and buffer, enabling fully automated multicolor 3D printing without modifying the print head. This ensures a fast, safe, and professional installation, ideal for makers and additive manufacturing professionals.

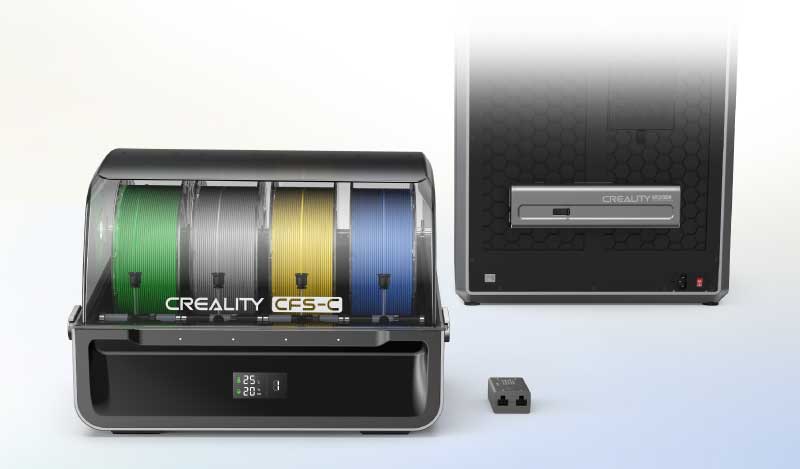

The system manages up to four spools simultaneously, allowing automatic color changes and uninterrupted printing, optimizing the production of high-quality multicolor 3D parts.

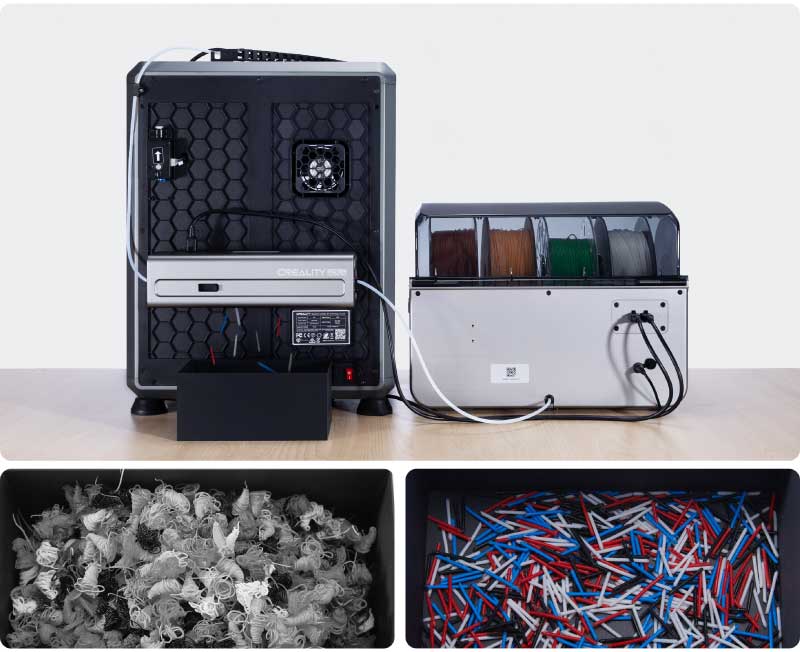

Clean 3D Printing: No Internal Purging or Waste

The CFS-C eliminates internal purging, preventing waste buildup inside the printer. This keeps the mechanical environment clean and reduces maintenance. Waste material is redirected through an external path, simplifying collection and improving efficiency in professional 3D printing projects.

With this architecture, unnecessary filament consumption is minimized, increasing efficiency and productivity—ideal for digital fabrication centers and industrial design studios.

Smart Sensors and Advanced Monitoring

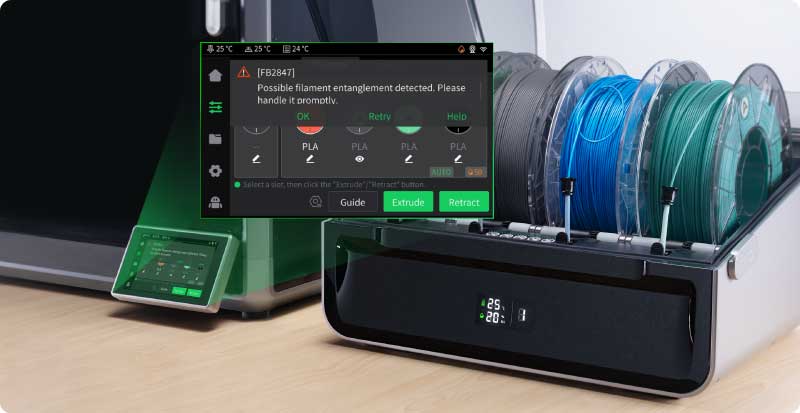

The CFS-C integrates filament runout and tangle detection sensors, automatically pausing the print if an issue occurs. This protects your projects and ensures reliability during long-duration 3D prints.

The system monitors cutter wear and sends alerts when replacement thresholds are reached, ensuring uninterrupted professional multicolor 3D printing.

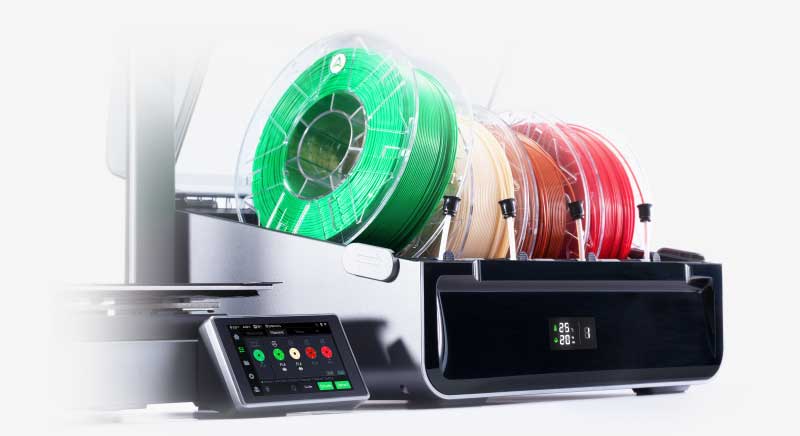

Smart Filament Management with RFID

The CFS-C automatically recognizes filament type and print parameters through RFID automatic identification, eliminating manual adjustments and reducing errors. Ideal for automating Creality 3D printers in professional environments.

Auto Filament Relay for Multicolor Printing

If a spool runs out, the system activates auto filament relay, continuing the print with another spool of the same material and color—or even a different color if preferred—optimizing continuous multicolor 3D part production.

Key Differences Between CFS-C and the Original Creality CFS

While the original Creality CFS allows multi-filament management and up to 16 colors by combining two units, the CFS-C enhances the professional multicolor 3D printing experience with more advanced automation and simpler installation. Unlike the original CFS, which requires combining units and manual adjustments for color changes, the CFS-C offers auto filament relay, real-time tangle and runout detection, and automatic RFID filament identification without manual intervention—eliminating internal purging and waste inside the printer.

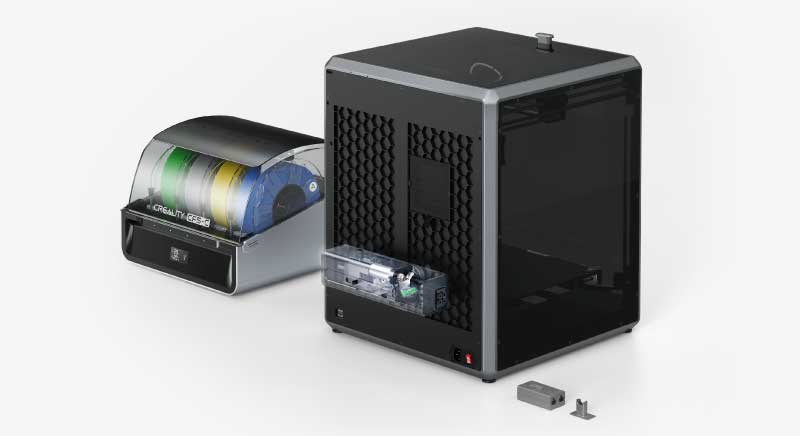

Whereas the original CFS protects filaments through airtight, moisture-resistant storage, the CFS-C integrates intelligent temperature and humidity sensors in each slot, ensuring professional multicolor print continuity and maximizing productivity and efficiency in complex projects—without the need to combine multiple systems or modify the print head.

Technical Specifications of the CFS-C

The CFS-C features four filament slots for 1.75 mm ± 0.05 mm filament, compatible with 1 kg spools measuring 197–202 mm in diameter and 42–68 mm in width. It operates on DC 24V power, with a rated power of 30W and CAN connection, integrating seamlessly with compatible printers.

The segmented LCD display shows real-time temperature and humidity, optimizing filament preservation through desiccant drying. Compatible with Hyper PLA, CR-PLA, and CR-Silk, with expanded compatibility through firmware updates for maximum scalability.

Professional Multicolor 3D Printing Solution

The CFS-C is ideal for boosting productivity and reducing material waste. Its advanced automation, smart monitoring, and compatibility with leading models make it an essential solution for makers, design studios, and digital manufacturing centers.

Competitive Advantages

With smart filament management, real-time monitoring, purge-free printing, and automatic material continuity, the CFS-C takes professional multicolor 3D printing to the next level of efficiency, precision, and cost-effectiveness.
