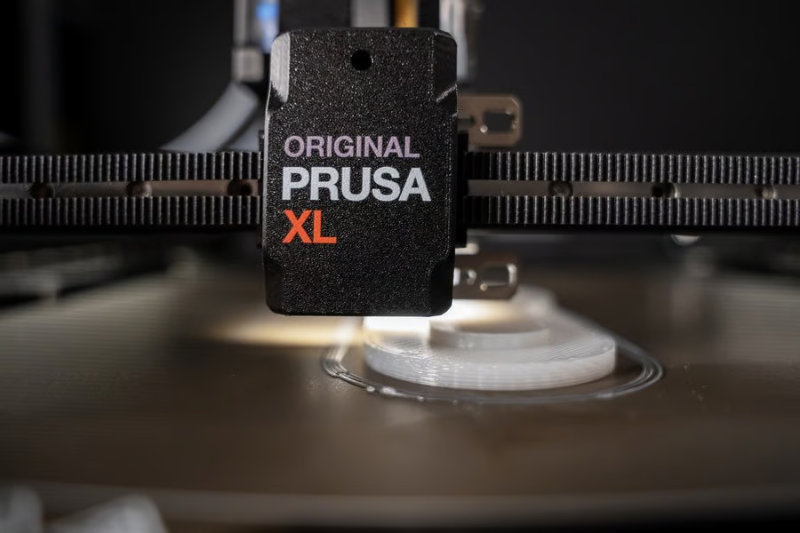

Silicone print head for Original Prusa XL

The silicone print head for the Original Prusa XL introduces a significant change in the desktop additive manufacturing paradigm by allowing the use of two-component liquid materials instead of conventional thermoplastic filaments. This system transforms the printer into a hybrid platform capable of combining FDM technologies with reactive material deposition processes.

Developed in collaboration with Filament2, this print head is designed as a plug-and-play solution, allowing for direct integration within the modular ecosystem of the Prusa XL without the need for complex hardware or software modifications.

From solid filament to “liquid filament”

Unlike traditional extruders, this system does not work with melted polymers but with two-component liquid materials. Instead of heating a filament, the print head manages the mixing and deposition of two components that chemically react after extrusion. This approach allows for printing with materials such as real heat-resistant silicone, significantly expanding the range of applications compared to conventional FDM systems.

Furthermore, it opens the door to the use of other advanced materials such as polyurethanes, epoxy resins, or technical pastes, making the Prusa XL a versatile platform for research, prototyping, and industrial applications.

Precision mixing nozzle

The central element of the print head is its mixing nozzle, specifically designed to homogeneously combine the two material components just before deposition. This process is critical as it determines the quality of the chemical reaction and, therefore, the final properties of the material. Precision in mixing and flow allows for obtaining parts with homogeneous characteristics, avoiding defects resulting from incomplete or irregular mixing.

Integration with the tool-changing system

One of the main advantages of this print head is its compatibility with the toolchanger system of the Prusa XL. This allows for combining traditional FDM materials with silicone in the same part, creating hybrid structures with differentiated properties. For example, it is possible to manufacture a rigid polymer part and add flexible zones or directly printed silicone seals in the same process.

In addition, the possibility of using multiple heads allows working with different silicones with different Shore hardness in a single print, further expanding design capabilities.

Processing and workflow

Despite its technological complexity, the head is designed to integrate into an accessible workflow. The preparation process is carried out using standard software, such as PrusaSlicer, without the need for additional specialized tools. This facilitates the adoption of this technology in environments where Prusa XL is already being used, reducing the learning curve and allowing the utilization of existing infrastructures.

Direct silicone printing allows the manufacturing of parts with unique properties, such as high elasticity, thermal resistance, and chemical durability. These characteristics are difficult to achieve using FDM, even with flexible filaments. Among the most relevant applications are joints, dampers, medical components, sealing elements, or parts in direct contact with fluids. Additionally, the ability to print directly on silicone eliminates the need for molds, simplifying traditional processes such as casting molding.

This head represents a significant evolution in the desktop 3D printing field, bringing capabilities typical of industrial systems to a more accessible environment. The ability to work with reactive liquid materials expands the scope of additive manufacturing beyond melted polymers.

In combination with the modular architecture of the Prusa XL, this development positions the platform as a solution oriented towards advanced experimentation and the production of functional parts with specific requirements. The silicone printing head for the Prusa XL introduces a new category within multimaterial 3D printing, based on the deposition of two-component liquid materials. Its integration with the tool-changing system and its plug-and-play approach significantly expand manufacturing capabilities without abandoning the FDM ecosystem.

This advancement not only increases the versatility of the equipment but also redefines the potential of desktop 3D printing in technical, industrial, and product development applications.
