Creatbot D400 HS - FDM 3D Printer

PRE-ORDER AVAILABLE! ESTIMATED DELIVERY: FROM EARLY AUGUST 2026.

CreatBot D400 HS is a high-speed professional 3D printer developed on the same proven platform as the D600 Pro3 HS, the world’s best-selling printer in its category. This industrial additive manufacturing machine fully inherits the mature and robust technologies of its predecessor, incorporating a structural architecture validated through years of intensive use in real industrial environments. For companies, engineers, and professional users seeking the best desktop industrial 3D printer on the market, the D400 HS is the ultimate answer.

Equipped with a deeply optimized Klipper firmware and a high-flow hotend with a maximum volumetric flow rate of 90 mm³/s, this printer achieves a stable printing speed of 300 mm/s with layer accuracy down to 0.05 mm. Its hardware specifications, dynamic performance parameters, and material compatibility meet the standards of premium industrial-grade printers. Without a doubt, it represents the definitive choice in large-format FDM 3D printers for fast and professional printing.

Eddy current bed leveling: 0.001 mm precision for flawless printing

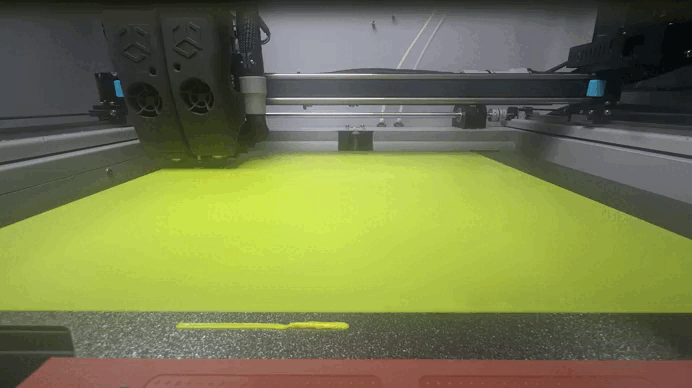

The first layer determines the quality of the entire print. That is why the D400 HS incorporates an automatic mesh bed leveling system based on eddy current technology, achieving a probing accuracy of 0.001 mm, improving precision by 99% compared to traditional methods. This high-frequency electromagnetic sensing technology ensures perfect first-layer adhesion even on large parts, eliminating the most common print failures.

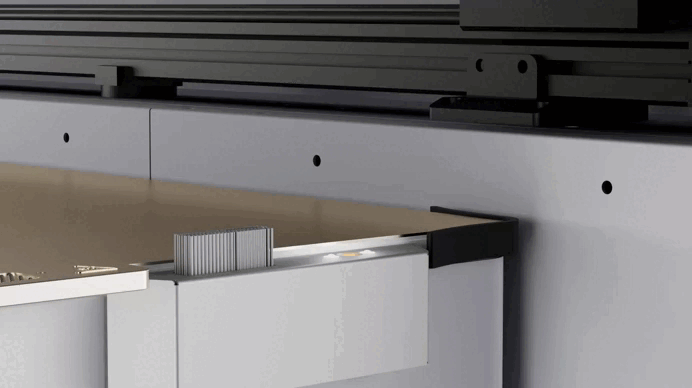

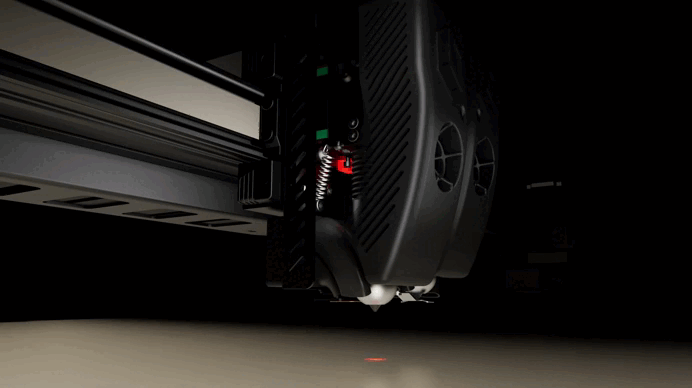

The system uses a contactless, wear-free design, completing full platform calibration in just 60 seconds, reducing leveling time by 80%. Combined with automatic dual-nozzle XYZ calibration—via HD macro camera for XY offset and dual photoelectric sensors for the Z axis with 0.005 mm precision—this printer guarantees repeatable and consistent results in every job without manual intervention.

420 °C auto-ascending dual extruder with automatic nozzle shutter

The dual auto-ascending extruder system of the D400 HS reaches temperatures up to 420 °C, with heating capability up to 400 °C in just 2 minutes and a thermostat accuracy of ±0.15 °C. The hotends are quickly interchangeable for different nozzle diameters (0.3 / 0.4 / 0.6 / 0.8 / 1.0 mm), allowing adaptation to each project without downtime.

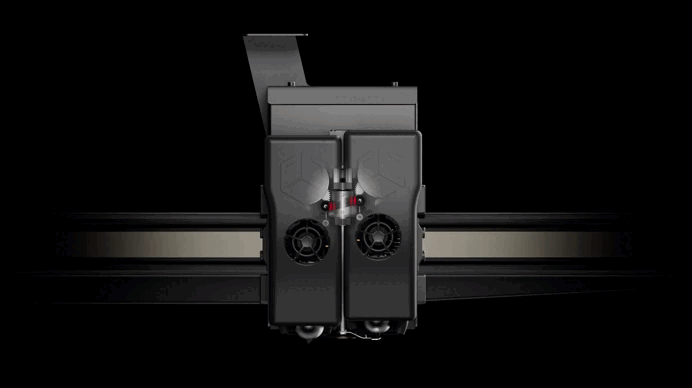

One of the most notable innovations of this dual-material 3D printer is the Dual Nozzle Shutter system. When one extruder is inactive, a precision mechanical shutter physically seals the nozzle as it lifts, completely eliminating oozing and cross-material contamination. The result is flawless multi-color and multi-material printing on every layer, without stringing or blemishes. Combined with a lightweight, topology-optimized print head design, this enables higher printing speeds and improved motion agility.

Active heated chamber up to 70 °C with patented thermal compensation: no warping, no deformation

Warping in large-format 3D printing is one of the most critical issues when working with engineering materials such as ABS, Nylon, PC, or carbon fiber composites. The D400 HS integrates an actively heated chamber up to 70 °C with dual thermal insulation layers, specifically designed to prevent shrinkage and deformation in large engineering polymer parts.

A heated chamber stabilizes temperature between layers to improve molecular diffusion and strengthen interlayer adhesion, minimizes moisture absorption in hygroscopic filaments such as Nylon, and ensures process consistency essential for industrial production. However, most manufacturers overlook a critical issue: when chamber temperature rises, the printer’s structure thermally expands, causing axis misalignment and cumulative micro-deformations that result in dimensional errors, surface roughness, and structural defects in large parts.

After more than 8 years of R&D in industrial FFF printing with heated chambers, the D400 HS solution is the synergy of two patented technologies: the Smart Chamber Heating Algorithm, which predicts and compensates for irregular temperature-induced deformation; and the Z-Axis Magic Box technology, which maintains a flawless surface through real-time thermal compensation of chassis and platform expansion. The result: perfect parts even under slight mechanical deformation. The machine’s robust weight further minimizes distortion—greater structural mass means less deformation.

Large-scale industrial prototyping with advanced engineering materials

The D400 HS is designed to make large-scale industrial 3D printing of objects and prototypes as simple as possible. With a build volume of 420 × 400 × 420 mm in single extrusion (365 × 400 × 420 mm in dual extrusion), this machine is ready for large parts that other desktop printers cannot handle.

Material compatibility is exceptionally broad: PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF and many more. The UltraPA-CF material deserves special attention: it enables large-scale functional prototypes with large nozzle diameters while achieving tensile strengths up to 80 MPa and heat resistance up to 150 °C, making it ideal for functional validation, end-use parts, spare components, and molds in just days. For those seeking the best 3D printer for industrial prototyping with carbon fiber composites, the D400 HS is the most complete option on the market.

Magnetic platform, power outage recovery, and automatic backup mode

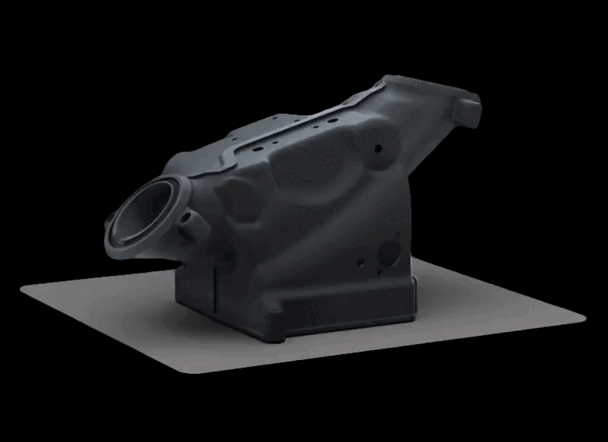

The proprietary magnetic build plate of the D400 HS is large-format, easily removable, heat-resistant above 100 °C, and designed to prevent demagnetization over time. It allows fast removal of large parts with perfectly flat bases, without tools or additional effort.

The printer includes a full power outage recovery system: it automatically stores the current position and print data during any interruption and resumes exactly where it left off. Filament runout detection pauses the print and alerts the operator when material runs out, allowing spool replacement without losing progress. And if the main nozzle spool (No. 1) runs out during a long job, the automatic backup mode switches to the secondary extruder (No. 2) to ensure uninterrupted production.

Active external cooling system and medical-grade air filtration

The D400 HS incorporates a true external air cooling system based on a medical-grade pump: silent, powerful, and designed for 24/7 continuous operation. This system has three critical functions. First, it protects the print head from high chamber temperatures during operation, preventing heat-related failures and extending system lifespan. Second, it directs cool external air directly onto the model to solidify the material instantly, preventing sagging and oozing in heated chambers and ensuring perfect overhangs and superior surface finishes at high speed.

The ultra-clean air filtration system uses a dual-filter design: an initial HEPA filter captures fine particles with 99.995% efficiency, while a activated carbon filter absorbs volatile organic compounds (VOCs) and odors. This combination ensures a clean and safe printing environment, protecting both the operator and printed parts from harmful emissions generated during engineering filament printing.

Full connectivity: WiFi, LAN, Internet, and remote APP control with integrated camera

The D400 HS offers full connectivity via WiFi, LAN network, and Internet access, as well as mobile app control. The integrated camera control system allows remote monitoring and management of the printing process—speed, pause, temperature, and more—from anywhere, optimizing print quality in the shortest time without risk of failure. This is especially valuable for long jobs with large-format models requiring continuous supervision. In addition, local network management allows sending sliced files and updating firmware without an internet connection.

Complete technical specifications of the CreatBot D400 HS

The printing technology is FDM/FFF with dual nozzles and auto-ascending extruders. The build volume reaches 420 × 400 × 420 mm in single extrusion mode and 365 × 400 × 420 mm in dual mode. Minimum layer resolution is 0.05 mm with 1.75 mm filament diameter. The maximum nozzle temperature is 420 °C, the bed reaches 120 °C, and the heated chamber up to 70 °C. The maximum printing speed is 300 mm/s with a flow rate of 90 mm³/s. It includes eddy current leveling, XY offset via HD dual-nozzle camera, high-speed Klipper firmware, dual nozzle shutter, filament detection, HEPA + activated carbon filtration, remote monitoring camera, and active external cooling.

Industrial high-performance 3D printer comparison

This comparison table brings together the main technical specifications of several industrial 3D printer models. It allows quick comparison of key features such as build volume, extrusion system, maximum speed, operating temperatures, connectivity, and other relevant parameters to help evaluate different machines.

The most advanced desktop industrial 3D printer for real professional demands

With the CreatBot D400 HS, companies, engineering studios, R&D labs, and professional manufacturers gain a tool capable of producing large-format parts with high-performance materials at industrial speeds, without sacrificing precision or reliability. All its technologies—heated chamber with thermal compensation, dual extrusion with automatic shutter, sub-millimeter leveling, and active cooling—work in synergy to ensure maximum quality in every print, regardless of model complexity or material.

This is the large-volume professional FDM 3D printer that does not compromise between speed and quality. It brings desktop additive manufacturing to the industrial level required by the most demanding projects.
