The Best Tool Changer 3D Printers: Snapmaker U1 vs Flashforge Creator 5 Pro vs Prusa XL

The paradigm shift in multicolor and multi-material FDM 3D printing has left behind the old single-nozzle purge systems (AMS-type) to usher in the era of Toolchanger machines (independent tool changers). This approach eliminates huge purge towers, saves up to 80% of wasted filament, and drastically accelerates manufacturing times.

In this guide, we compare the three most powerful and sought-after candidates currently on the market: the Snapmaker U1, the Flashforge Creator 5 Pro, and the Original Prusa XL (with Enclosure). We analyze their kinematics, thermal capabilities, engineering material management, and total cost of ownership to help determine the best option according to each production profile. The focus is on multi-material and multicolor solutions that have been available on the market for the longest time and have accumulated the greatest amount of user experience, allowing their characteristics, advantages, and limitations to be analyzed based on widely tested systems. This does not mean they are the only options available: newer and different technologies, such as Bondtech INDX, based on an automatic tool-changing system, or Vortek, offer new approaches to multi-material printing and deserve a dedicated analysis. These and other solutions will be discussed in depth on another occasion.

Why is Toolchanger technology replacing single-nozzle purge systems?

For years, multi-material and multicolor printing was dominated by systems that pushed multiple filaments through a single hotend. Although popular, these systems present significant structural limitations:

• Massive material purging: Switching from black to white filament requires purging dozens of cubic millimeters of plastic to prevent color contamination. In complex prints, the purge tower can weigh more than the printed part itself.
• Thermal degradation and clogging: Alternating between materials with radically different melting temperatures (for example, a soluble support material such as BVOH at 190 °C and Nylon at 260 °C) in the same nozzle causes polymer crystallization, carbonization, and recurring clogs.
• Excessive printing times: Each color change involves retracting, cutting, feeding, and purging the new filament, adding hours or days to the manufacturing process.

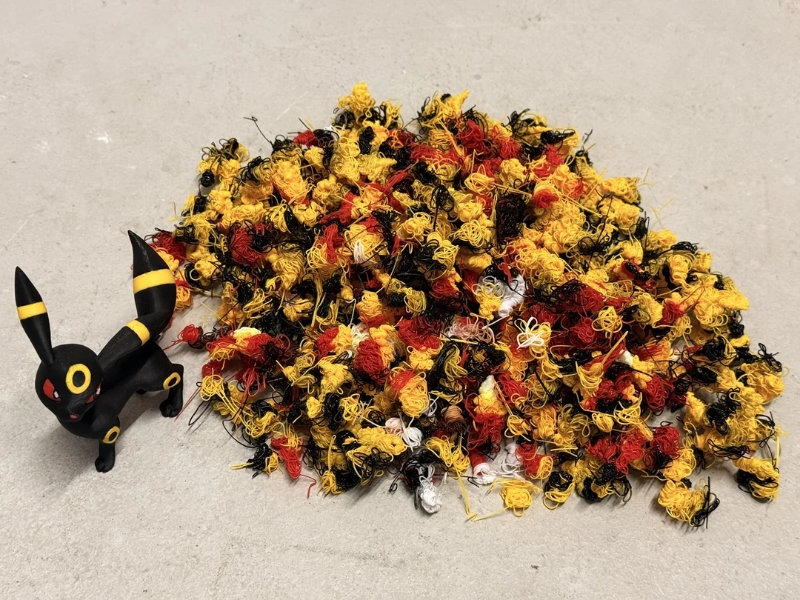

Image 1: With traditional filament changes, the waste can be much greater than the material used in the part. Source: Reddit @LetoXXI

The Toolchanger architecture solves this at its core: each filament has its own independent extruder, hotend, and nozzle. Tool switching takes place in a matter of seconds using high-precision kinematic couplings, while keeping the secondary hotends in thermal standby to prevent dripping (oozing).

Technical specification comparison table

Detailed analysis of each machine

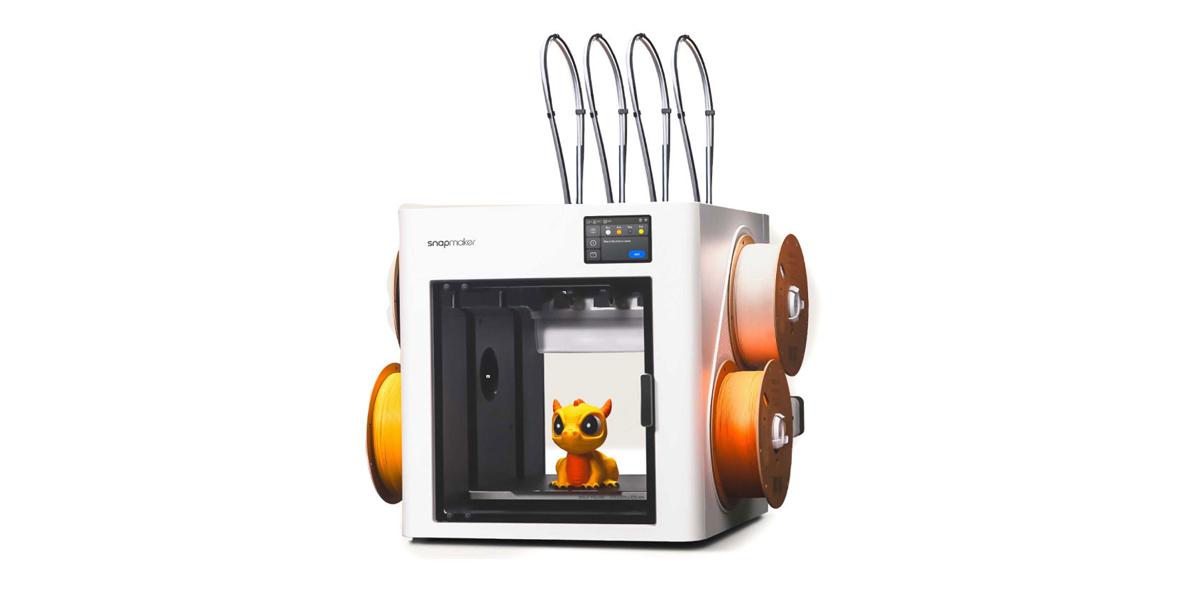

1. Snapmaker U1: Maker performance and switching speed

The Snapmaker U1 brings kinematic tool changing to the consumer and maker segment. It features a CoreXY system equipped with four independent extruders that switch in just 5 seconds thanks to the SnapSwap mechanism.

• Key advantages:
  • Excellent cost-to-performance ratio for multicolor and multi-material projects using standard materials (PLA, PETG, TPU).
  • Almost complete elimination of filament waste compared with single-nozzle systems.
  • Easy maintenance and fast hotend replacement.
• Version and enclosure: It is supplied from the factory in an open configuration. However, an optional upper enclosure/cover is available, allowing the build volume to be completely enclosed, improving thermal stability and reducing drafts for moderately sensitive materials such as ABS or ASA.

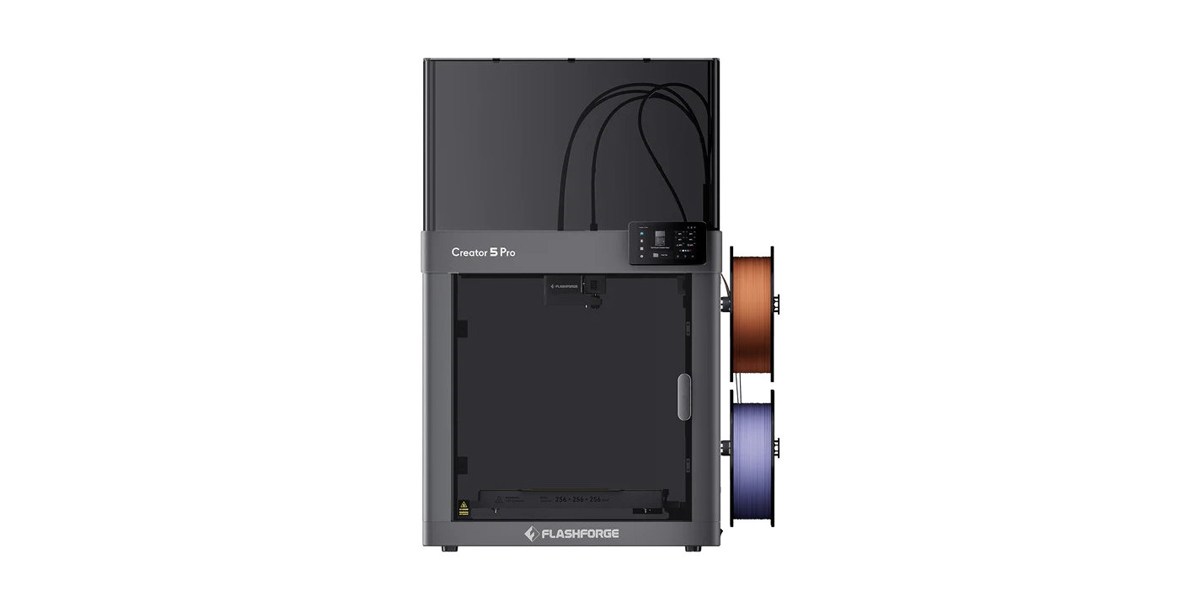

2. Flashforge Creator 5 Pro: Professional approach with active heated chamber

Important note: It is crucial not to confuse this model with the standard Creator 5. While the base version is an open machine intended for conventional materials, the Creator 5 Pro is a machine specifically designed for the production of functional parts.

• Key advantages:
  • Active heated chamber up to 65 °C: Maintains a controlled thermal gradient throughout the build volume, eliminating warping, layer delamination, and internal stress issues in technical thermoplastics.
  • High-temperature hotend (320 °C): Capable of reliably processing demanding engineering materials such as Nylon (PA), Polycarbonate (PC), technical ABS/ASA, and polymers reinforced with carbon or glass fiber (PA-CF, PET-CF).
  • Ultra-rigid chassis and speed: Reaches travel speeds of up to 600 mm/s with accelerations of 30,000 mm/s².
  • HEPA H13 and activated carbon filtration system: Enhances safety in the working environment by capturing VOC particles (volatile organic compounds).

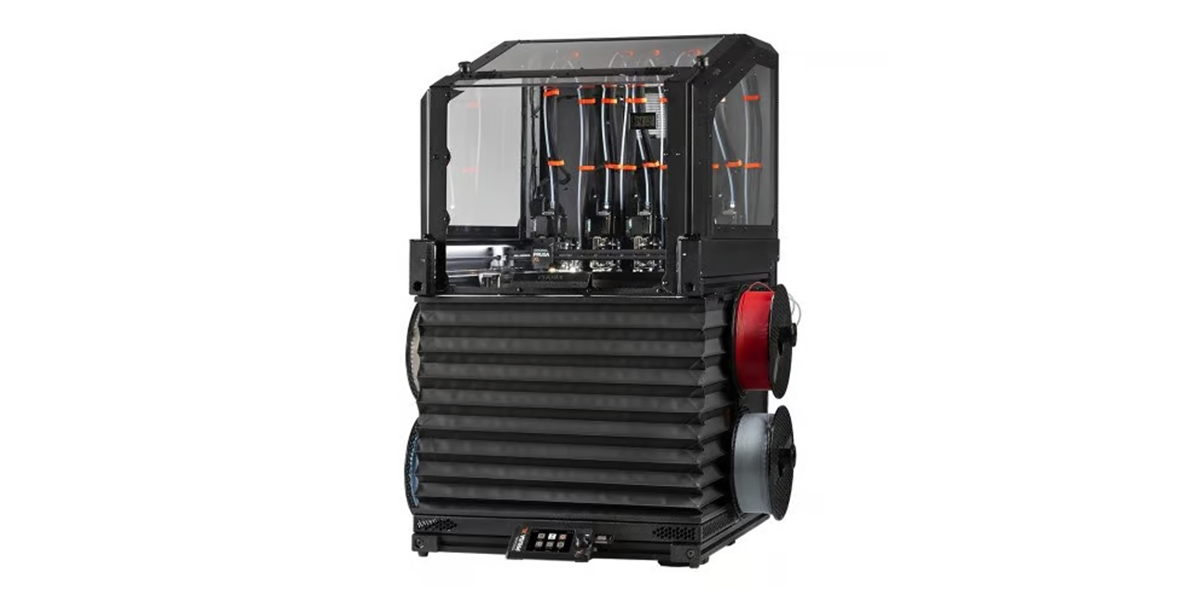

3. Original Prusa XL (with Enclosure): Large build volume and precision ecosystem

The Czech manufacturer's flagship 3D printer stands out for its massive build volume (360 × 360 × 360 mm) and its ability to accommodate up to 5 independent toolheads driven by the Nextruder extruder.

• Key advantages:
  • Load cell: Ensures a perfect first layer without the need for manual Z-offset adjustment by measuring the actual pressure of the nozzle against the bed.
  • Segmented heated bed: Divided into 16 independent 90 × 90 mm zones that are activated only beneath the surface of the part being printed, drastically reducing power consumption and thermal deformation of the build plate.
  • PrusaSlicer ecosystem: Native integration with tested and optimized profiles for hundreds of filaments on the market.
• Enclosure version: The version equipped with the official enclosure (Enclosure Bundle) is evaluated. This accessory encloses the printer structure, stabilizes the temperature of the manufacturing environment, protects parts from drafts, and adds a HEPA filter for cleaner and safer printing.

Material compatibility by model

• Snapmaker U1 (Open / with optional Enclosure):
  • Optimized for: PLA, PETG, TPU (flexible), soluble supports (PVA, BVOH).
  • With optional enclosure: ABS, ASA, and PET-CF (for small or medium-sized parts).
• Flashforge Creator 5 Pro (Active 65 °C chamber):
  • Optimized for: ABS, ASA, Polycarbonate (PC), Nylon (PA), PA-CF, PET-CF, TPU, PLA, PETG, and high-performance support materials (HIPS).
• Original Prusa XL (with active 50 ºC Enclosure, 60 ºC with external heater):
  • Optimized for: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PET-CF, PA-CF.

Verdict and buying recommendations

1. Choose the Snapmaker U1: If an agile and affordable solution is needed for rapid prototyping, multicolor parts, and models with soluble supports, with the flexibility to add the upper enclosure for occasional work with light technical materials.
2. Choose the Flashforge Creator 5 Pro: If the workflow requires continuous production of functional components in technical plastics (PA-CF, PC, ABS) where the active 65 °C heated chamber is essential to ensure optimal mechanical properties without deformation.
3. Choose the Original Prusa XL (with Enclosure): If, in addition to all of the above, a large-format build volume (360 mm), the ability to combine up to 5 different materials or colors in the same part, the ability to work with engineering filament, and the reliability, automated calibration, and ongoing support of the Prusa ecosystem are valued.
