Multimaterial vs Toolchanger: the ultimate guide to multicolor 3D printing

Multicolor and multimaterial 3D printing has evolved from something experimental into a nearly essential feature in mid-range and high-end printers. Today there are two main approaches: multimaterial systems (MMU, AMS, CFS, etc.) and toolchangers or multi-tool systems. In this guide, a clear and educational overview is provided of what each one does, their advantages, limitations, and what is coming next with technologies such as Bambu Vortek and Bondtech INDX.

What is a multimaterial system in 3D printing?

A multimaterial system allows a 3D printer with a single hotend to work with multiple different filaments. Instead of having multiple nozzles, the printer receives filament from an external module that manages several spools and loads or unloads them depending on what the part requires.

This type of system has become very popular: it is no longer exclusive to Prusa or Bambu Lab, as virtually all major manufacturers now offer their own multimaterial solution.

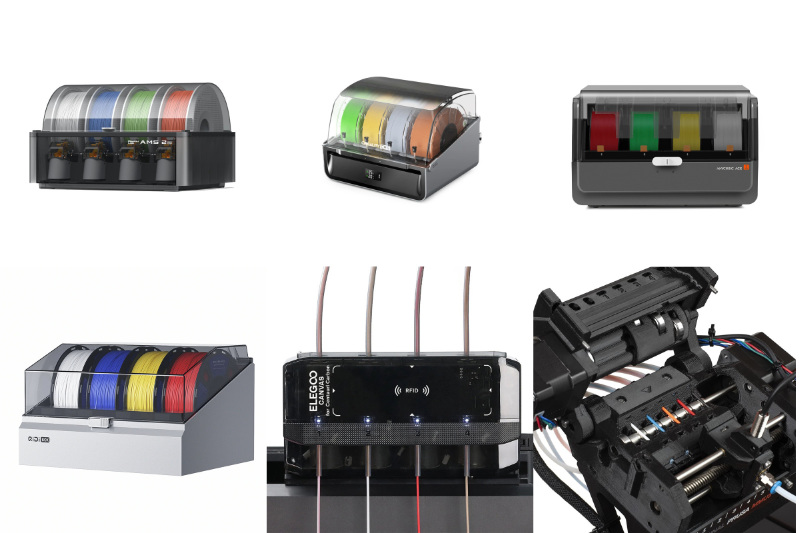

Examples of current multimaterial systems

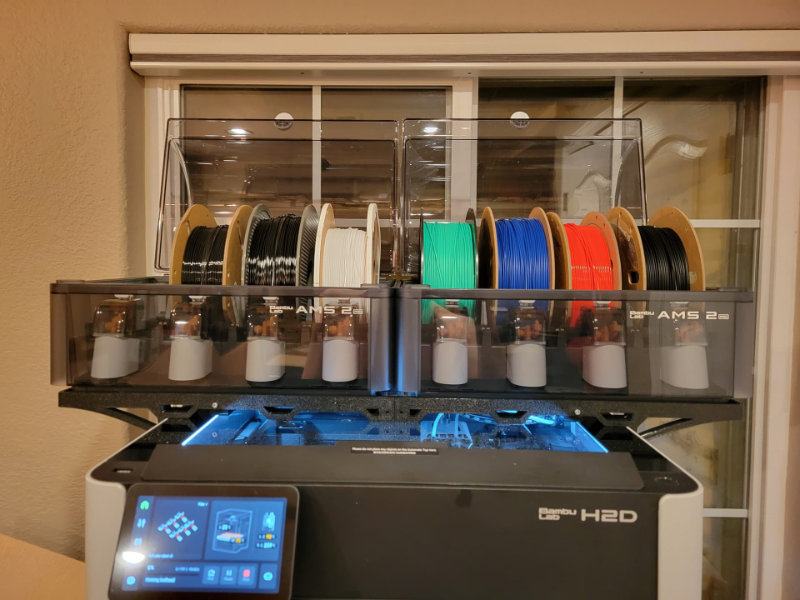

• Bambu Lab AMS / AMS 2 Pro / AMS HT: smart modules with humidity control and up to 24 colors when combining multiple units, one of the most popular multimaterial systems on the market.
• Creality CFS (Creality Filament System): multimaterial system for the K1/K2 range, up to 4 materials, an affordable approach and Creality’s bet on multimaterial printing.
• Anycubic ACE Pro: four-material system with fast switching and optimized purging.
• QIDI Box: multimaterial module for QIDI printers (such as Q2, Plus4 and Max4).
• Elegoo CANVA: multimaterial solution for the Centauri Carbon series, aimed at home users.
• Prusa MMU3: up to 5 filaments, compatible with Prusa MK3S+/MK4, CoreOne, CoreOne+ and soon Core One L. A pioneer in providing accessible multimaterial systems with low waste.

Advantages and disadvantages of multimaterial systems

The main advantage of these systems is that they are cheaper than a toolchanger: only one hotend and an external module are required. They are also relatively easy to install on existing printers.

The downside is that every time a color or material is changed, the printer must retract the previous filament, load the new one and purge the hotend to avoid contamination. This results in:

Limited compatibility with flexible and reinforced materials, due to the more complex filament path.

Higher material waste, especially in systems that cut filament such as Bambu Lab. Special mention goes to Prusa MMU, which sits between both systems and generates very little waste.

Longer print times due to load and unload cycles.

What is a toolchanger or multi-tool system?

A toolchanger works very differently: instead of a single hotend with multiple filaments, the printer has several independent toolheads. Each tool has its own extruder, hotend and nozzle, and the machine automatically attaches and detaches them during printing.

The result is that each material is fully isolated, so no purging is required between color changes. Tool swaps usually take only a few seconds.

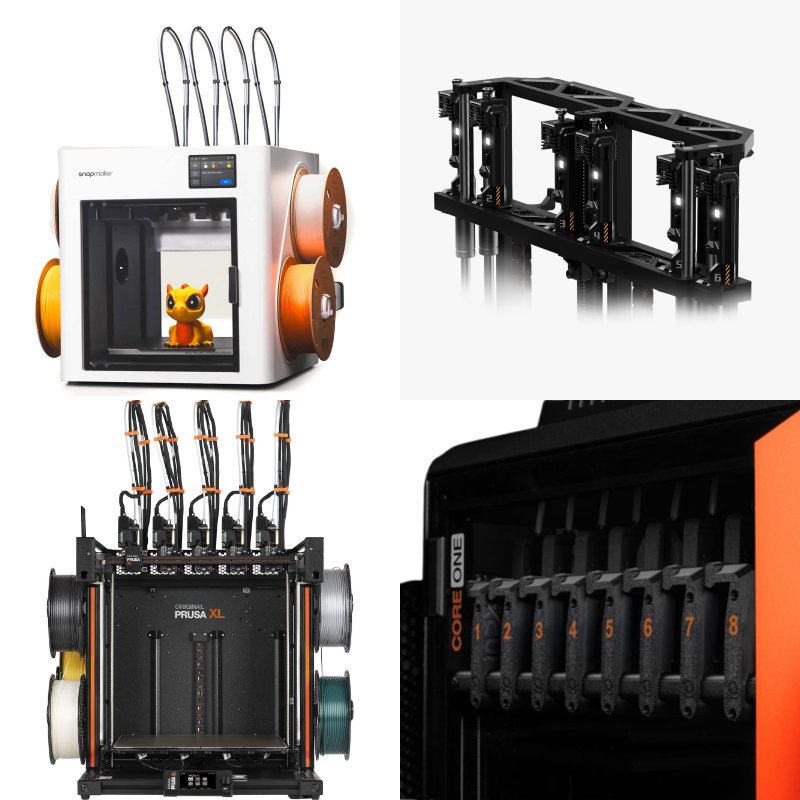

Examples of toolchanger printers

Prusa XL: up to 5 interchangeable tools, a pioneer in multi-tool systems.

Snapmaker U1: 4 print heads in a desktop format.

Bondtech INDX: next-generation toolchanger compatible with Prusa Core One and soon Core One L, available in 4 or 8 tool configurations.

Bambu Lab Vortek: up to 6 interchangeable nozzles in the upcoming Bambu Lab H2C.

Classification of toolchangers: active vs passive

Recent innovation is introducing an important distinction in toolchanger technology.

Active toolchangers

These are the original and most established design. In this system, each tool is a complete print head stored outside the build area and attached to the gantry when needed.

• Characteristics: each tool includes its own heating and extrusion system (motor, hotend and nozzle). The machine moves a complete and relatively heavy assembly.
• Examples: Prusa XL and Snapmaker U1.

Passive or hybrid toolchangers

These systems represent an evolution focused on lightness and simplicity. Instead of swapping a full heavy toolhead, only essential or smaller parts are exchanged.

This is achieved by keeping the main mechanism on the gantry and replacing only the nozzle, heater block or a lightweight hotend assembly.

• Characteristics: aim to reduce moving mass and simplify tool design. The key element, such as the extruder motor, may remain fixed while only the hotend end is swapped.
  • Bondtech INDX: compatible with Prusa Core One and Core One L. This system supports up to 4 or 8 tools and focuses on fast swapping of nozzle and hotend.
  • Bambu Lab H2C with Vortek system: expected by the end of 2025. It uses induction-heated interchangeable nozzles, minimizing moving mass.

These passive systems are becoming increasingly important due to their potential to combine toolchanger speed with reduced moving mass, approaching the performance of standard CoreXY printers.

Advantages and disadvantages of toolchangers

Advantages

• Almost zero filament waste: no purge towers are required.
• Ultra-fast color changes: tool swaps take only seconds.
• Full material isolation: allows combining materials with very different temperatures or behaviors.
• Nozzle flexibility: different nozzle diameters or materials can be used in the same print.

Specific advantages of passive toolchangers

• Lower moving mass: only the nozzle or hotend is swapped, increasing potential speed.
• Simpler design: fewer motors and less electronics per tool.

Disadvantages

• Higher initial cost: more hardware and electronics required.
• Greater mechanical complexity: especially in active systems.
• Precise calibration required: tool offsets must be carefully tuned.

Comparison table: multimaterial vs toolchanger

The choice between a multimaterial system and a toolchanger mainly depends on budget and user priorities.

Multimaterial systems are the most affordable and compact option. They are ideal for users who want to start with multicolor and multimaterial printing without a high investment. On the other hand, the toolchanger is a high-end solution designed for efficiency and uncompromised quality. Its main advantage is extremely fast tool changes and virtually no material waste.

The future points toward convergence. Emerging technologies such as Bambu Vortek and Bondtech INDX aim to minimize the disadvantages of each system. Multicolor and multimaterial 3D printing is likely to become a standard feature in the industry.
