Fiber-Reinforced Materials for 3D Printing: Types, Benefits and How to Print Them

Until just a few years ago, 3D printing was almost exclusively associated with rapid prototyping. With the advent of short fiber reinforced thermoplastic materials, the story changes: additive manufacturing ceases to be synonymous with models and begins to compete with traditional processes for producing end-use parts. The secret lies in dispersing chopped fibers—carbon, glass, aramid, nanotubes, or graphene—within a base polymer. This micro-armor fundamentally alters the mechanical and thermal properties of the plastic, so that a printed component can withstand stresses and temperatures that previously required resorting to metal or much more expensive composites.

This trend is not exclusive to large corporations. Advanced makers, machining workshops, and R&D departments are adopting fiber-filled filaments, pellets, powders, and resins to solve challenges ranging from a manufacturing jig to the lightweight housing of a drone. This article details each piece of the puzzle: what fiber-reinforced composite materials are, what advantages they offer, what their limitations are, what fibers and polymers we are talking about, and how to choose the ideal combination according to the application and available printer.

What exactly are fiber-reinforced materials?

A reinforced thermoplastic composite starts from a base polymer—PLA, ABS, PETG, Nylon, PC, PEEK, among others—to which a controlled percentage of chopped short fiber is added. During the manufacturing of the filament, pellet, or SLS powder, the fibers are homogeneously mixed with the molten plastic. As it is extruded layer by layer, many of them partially align in the direction of deposition, acting as micro-rods that withstand tension and bending. The result is a material that combines the lightness of the thermoplastic with the rigidity or toughness characteristic of the chosen fiber.

The magic lies in load transfer: when subjected to mechanical stress, the base polymer (also called matrix) transmits tension to the fibers, which have much higher elastic moduli and resistances. With relatively low reinforcement percentages—typically between 10% and 30% by weight—improvements are achieved that multiply the modulus and fracture resistance several times compared to the virgin polymer. In addition, the fiber can change how heat propagates and the part deforms, reducing creep and thermal expansion.

Benefits and challenges of printing with fibers

Strengths that justify the investment

When replacing a standard filament with its reinforced equivalent, the difference becomes evident in the first tensile test. Strength and modulus skyrocket to the range of certain light alloys, but with densities that remain distinctly plastic. This leap allows designing supports, flanges, gears, and production tools that do not collapse under load or yield to temperature. In environments where vibration dissipation or impact absorption are critical, aramid excels in its ability for damping and toughness, while carbon fiber offers ideal rigidity for drones or robotic arms.

Another little-seen but fundamental advantage is dimensional stability. When printing, cooling shrinkage can cause deformations and internal stresses; introducing fibers limits shrinkage and can help reduce warping. This translates into greater dimensional accuracy and flatter surfaces, which is key in tooling or in parts that must be assembled without post-processing.

Difficulties of working with fiber-reinforced materials

It's not all sunshine. Hard fibers—especially carbon and glass—act as microscopic abrasives that rapidly erode brass nozzles and soft hotend components. Working with these composite materials makes it necessary to use hardened steel, tungsten, or ruby nozzles, incurring a higher cost.

The other major challenge is interlaminar fragility: as rigidity increases, the material loses ductility, and adhesion between layers becomes critical. Conservative printing parameters—moderate speed, slightly higher temperatures, and minimal ventilation in matrices like Nylon or PC—are essential to prevent delamination. Logistics also change: hygroscopic filaments like CF-Nylon require pre-drying and airtight storage, and SLS powders or resins with nano-reinforcements require ventilation and personal protective equipment to prevent inhalation of fine particles.

Types of fiber used in composite materials

Carbon fiber: the champion of stiffness-to-weight

With a leading elastic modulus and a matte black finish that reveals its presence, chopped carbon fiber gives the part a rigidity that can triple that of the base polymer. The coefficient of thermal expansion drops drastically, which maintains tolerances even near heat sources. The downside: high abrasion and a tendency to fracture if the part suffers impacts. Essential in drone frames or precision tooling where every gram counts.

Glass fiber: industrial strength at a lower cost

Glass fiber offers an attractive balance. It increases strength and modulus with a moderate weight penalty and, above all, at a lower price than carbon. The finish is usually whitish or translucent, and abrasion, although notable, can be managed with economical hardened nozzles. It is the logical choice for structural prototypes or mechanical parts that need extra rigidity without breaking the budget.

Aramid fiber (Kevlar): the ally against impact

Aramid stands out for its toughness. Compared to the rigidity of carbon, here the priority is the ability to absorb energy without fracturing, which is crucial in housings exposed to vibrations or repeated blows. Adding Kevlar to TPU or semi-rigid matrices produces components with controlled elasticity and high tear resistance, ideal for protectors or damped supports.

Carbon nanotubes: microscopic reinforcement and conductivity

Just 3%–5% by weight is enough for CNTs to increase strength and, at the same time, provide electrical and thermal conductivity. This opens the door to housings with EMI shielding, integrated sensors, or lightweight heat sinks. The technical challenge is uniform dispersion: accumulations of nanotubes can create weak points and hinder polymer flow.

Graphene

In very low percentages, graphene reinforces the part, improves thermal conductivity, and provides some flame retardancy. Its effect is more subtle than that of traditional fibers, but it offers an interesting plus in designs where every tenth of a millimeter of deformation counts. As with carbon nanotubes, price and the need for homogeneous dispersion limit its use, although the trend points to increasing adoption.

The role of the base material or polymer matrix

Fiber is the protagonist, but the matrix determines the maximum temperature, chemical resistance, and ease of printing.

• Reinforced PLA: maintains simple printing and almost no warping. With carbon, it becomes surprisingly rigid, perfect for functional prototypes that will not be exposed to more than 60 °C.

• Reinforced ABS/ASA: gain relevant mechanical properties for technical parts. ASA adds UV resistance, making it suitable for outdoors when combined with fibers.

• Reinforced PETG: combines low deformation and good layer adhesion with an extra boost in chemical resistance. With carbon or glass fiber, it becomes a good option for industrial use parts.

• Nylon (PA) with fiber: the engineering classic becomes more rigid and heat-stable, although it requires printing at 250–270 °C, a heated bed of 90–110 °C, and controlled humidity.

• Reinforced PC: PC itself withstands high service temperatures; fiber elevates it even further.

• TPU with microfiber: sacrifices some elasticity but gains surface hardness, useful in flexible couplings subjected to wear.

• PEEK/PEKK/PEI with carbon: the highest range of thermoplastics. They are used in aeronautics and medicine due to their extreme resistance. They need printers with heated chambers (>120 °C) with high-temperature hot-ends to be printed.

A type of reinforced material for each printing technology

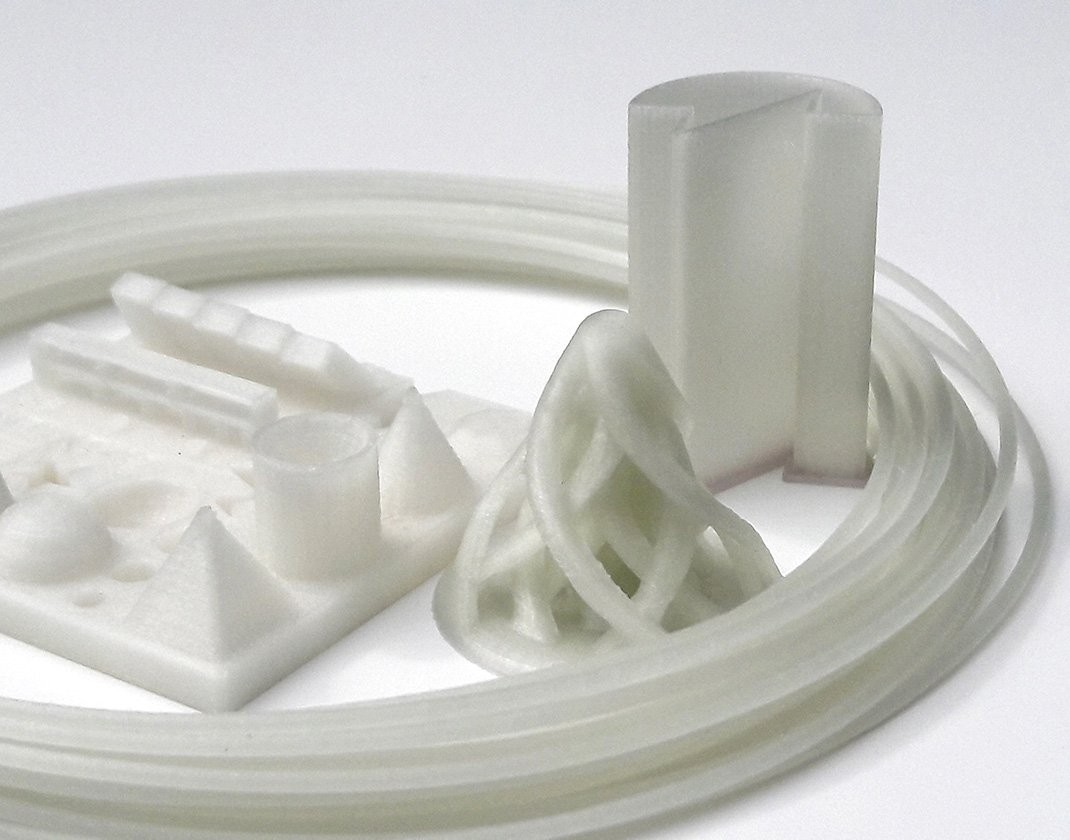

Filament

It is the most accessible form. With an all-metal hotend and a reinforced nozzle, any FDM printer can process CF-PLA, GF-PETG compounds, etc.

Below are some of the fiber-reinforced filaments available in our online store:

Pellets

They reduce the cost per kilo and allow for custom blends, but they require a special pellet extruder or industrial equipment to manufacture filament. Ideal for large-volume parts or custom blend research.

SLS Powder

For industrial or professional sintering printers, typically used to create high-engineering parts with very demanding requirements.

Resins

Still minority, they include nano-reinforcements that elevate the properties of SLA parts without changing resolution. They produce high-definition models suitable for functional applications.

Applications: from the industrial workshop to Earth orbit

• Aerospace and defense: Brackets manufactured in CF-PEEK replace traditional metal components, allowing for a significant weight reduction in satellites, unmanned aerial vehicles, and space platforms, without compromising structural strength or thermal stability.

• Automotive: Parts printed in CF-PA and GF-PC offer excellent resistance to vibrations and high temperatures, common in the engine environment. Their use contributes to accelerating the development processes of functional prototypes and optimizing the manufacturing of end-use parts, reducing cost compared to machined solutions.

• Industrial manufacturing: Grippers, jaws, and positioning tools made of CF-PC ensure precise clamping, minimizing dimensional deviations and increasing the lifespan of the tooling even under repetitive mechanical load conditions.

• Electronics: Housings printed with carbon nanotube (CNT) compounds provide effective protection against electrostatic discharge (ESD) and shielding against electromagnetic interference (EMI), fundamental aspects in the manufacturing of sensitive electronic devices.

• Medicine: Prosthetic sockets and orthopedic components manufactured with flexible matrices reinforced with aramid fiber (such as TPU-Kevlar) combine lightness, ergonomic adaptability, and high impact resistance, improving patient durability and comfort.

• Research and education: Universities and technological centers experiment with graphene-reinforced PLA filaments for the development of embedded sensors and advanced functional components, driving innovation in next-generation materials.

Conclusion

The emergence of fiber-reinforced materials represents a strategic advance in the evolution of 3D printing, making possible the manufacture of high-performance end-use parts. The adoption of appropriate equipment—hardened nozzles, rigorous humidity control, and optimization of printing parameters—allows for the production of components that previously required conventional machining and other traditional manufacturing techniques.

The continuous development of new formulations, such as compounds enriched with graphene or carbon nanotubes, as well as the progressive accessibility to continuous fiber technologies, heralds a transformation of the additive manufacturing landscape in the coming years.

Therefore, it is essential to gain experience now in printing short fiber composites. Practical knowledge and adaptation to these technologies will be decisive in fully leveraging the opportunities that new high-performance materials will bring in the next stage of the 3D industry.
