CUTRA Ultrasonic Cutters: Precision for Post-Processing 3D-Printed Parts

Post-processing is a fundamental part of the 3D printing workflow. Once the manufacturing of a part is complete, it is often necessary to remove supports, eliminate small imperfections, make cuts, modify geometries or prepare different components for assembly.

There are numerous manual tools available for these tasks, but when the goal is to make precise cuts with less effort on the material, ultrasonic cutters offer a particularly interesting alternative.

CUTRA offers a range of ultrasonic cutting tools aimed at manufacturing, model making, DIY applications and, especially, work with parts and components used in 3D printing. Among them, WonderCutter S and CtrlAX stand out as two solutions that allow users to work with a wide variety of materials using a blade subjected to ultrasonic vibrations.

What is an ultrasonic cutter?

An ultrasonic cutter is a tool that uses high-frequency vibrations to facilitate the cutting process. These vibrations reduce the resistance encountered by the blade as it moves through certain materials, allowing cuts to be made with less effort than with a conventional cutting tool.

In the case of CUTRA solutions, ultrasonic technology operates at a frequency of 40 kHz, that is, 40,000 vibrations per second. This technology is designed to facilitate controlled cutting in materials such as plastics, resins, foams, wood, leather, rubber and other materials commonly used in workshops and manufacturing processes.

In 3D printing, this type of tool can be particularly useful during operations carried out after the part has been manufactured.

What is an ultrasonic cutter used for in 3D printing?

3D printing does not end when the part comes out of the printer. Depending on the technology used, the material and the geometry produced, different finishing operations may be required.

Some of the most common applications of an ultrasonic cutter include:

• Removal of printing supports.

• Cutting off small excesses of material.

• Separation or modification of components.

• Trimming printed parts.

• Preparation of parts for assembly.

• Removal of burrs and small imperfections.

• Model making and miniature work.

• Prototype modification.

• Cutting of complementary materials used in manufacturing projects.

In resin-printed parts, for example, the tool can be used to work on supports and perform certain finishing operations. In parts manufactured using FDM, it can also be useful for modifying components made from thermoplastic materials such as PLA or ABS, always taking into account the specific characteristics of the material and the part.

Filament2Print's own range of FDM peripherals includes CUTRA ultrasonic cutters among the tools designed to complement the workflow and post-processing of 3D-printed parts.

WonderCutter S: a compact tool for precision cutting

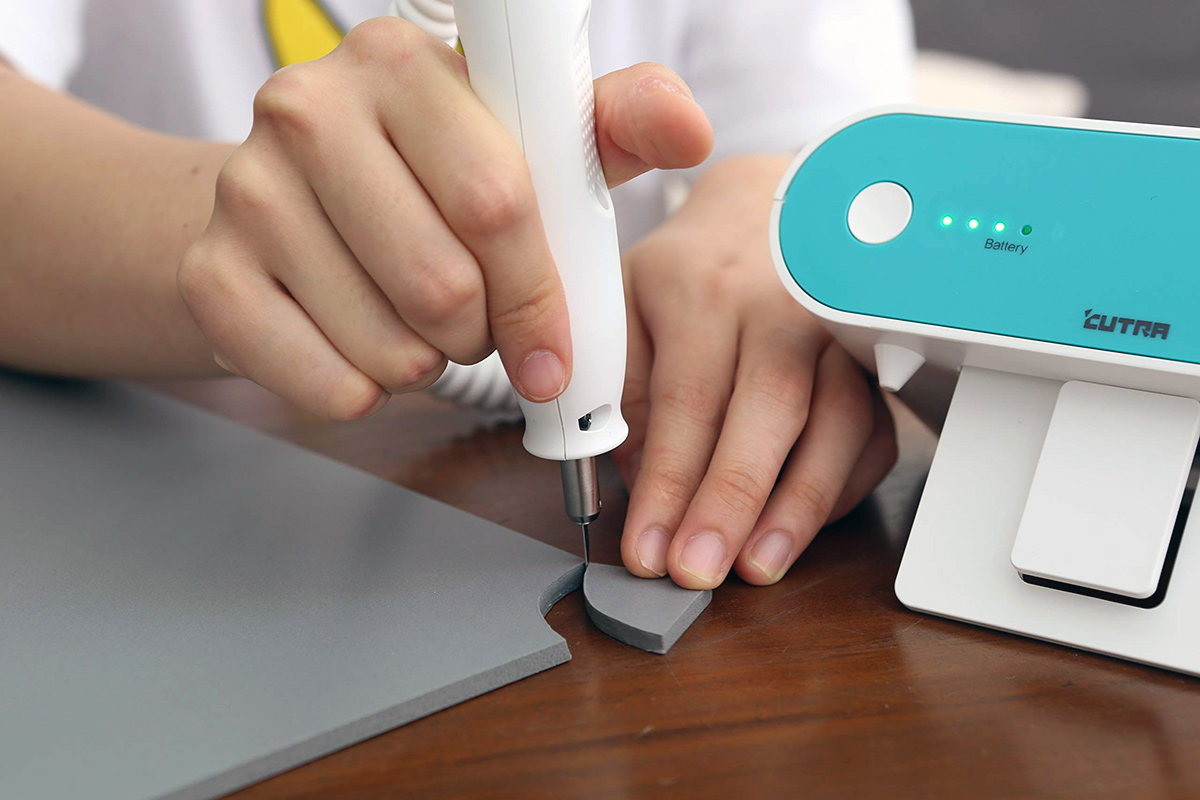

The CUTRA WonderCutter S is an ultrasonic cutter designed to make fast and precise cuts in different materials.

Its operation is based on a blade subjected to ultrasonic vibrations, which facilitates the movement of the tool through the material. In this way, certain operations that may be uncomfortable or require considerable force with a conventional blade can be carried out in a more controlled manner.

The WonderCutter S is particularly interesting for users who regularly work with:

• 3D-printed parts.

• Resins.

• Plastics.

• Foams.

• Rubber.

• Leather.

• Model-making materials.

• Other materials used in DIY projects.

In a 3D printing environment, it can be used as a complementary tool for finishing and modifying parts, especially when small and controlled cuts are required.

Cutting resin parts for model making and hobby

One of the areas where this type of tool is particularly interesting is model making and miniature manufacturing.

Small parts may incorporate supports, auxiliary structures or areas that require subsequent trimming. In these cases, having a cutting tool that allows precise work can considerably facilitate the process.

CUTRA has demonstrated applications of the WonderCutter S in hobby and model-making work, including demonstrations of cutting resin parts.

This application illustrates one of the most interesting uses of ultrasonic cutters: taking precision cutting operations beyond strictly industrial applications and using them in workshops, model making and the manufacture of customised parts.

CtrlAX: greater versatility for working with different materials

The CUTRA CtrlAX represents a more advanced solution within the brand's range of ultrasonic cutters.

Like the WonderCutter S, it operates using high-frequency ultrasonic vibrations, but it incorporates different power settings and a blade system designed to adapt to different types of work.

According to the manufacturer's documentation, CtrlAX operates at 40 kHz and features different specialised blades to adapt the tool to each application.

Its material compatibility includes, among others:

• PLA.

• ABS.

• Resin.

• Acrylic.

• Carbon fibre.

• MDF.

• Plywood.

• Foamed PVC.

• Leather.

• Rubber.

• PCB.

This versatility means that CtrlAX can be used not only for post-processing 3D-printed parts, but also for prototyping, model making, craft manufacturing and other workshop applications.

Different blades for different applications

One of the advantages of CtrlAX is the possibility of using different types of blades.

The choice of blade makes it possible to adapt the tool to the material and the type of operation to be performed. The available options include different geometries intended for cutting tasks, precision work, material removal or work on thicker materials.

This is particularly useful when the same tool needs to be used for different tasks within the workshop.

Instead of using a single type of blade for all applications, the user can select the most suitable configuration for each operation.

WonderCutter S or CtrlAX: which one to choose?

Although both products use CUTRA ultrasonic cutting technology, they are aimed at different needs.

The WonderCutter S may be particularly interesting for users looking for a compact and simple tool for cutting and post-processing tasks.

CtrlAX, on the other hand, is more geared towards users who need a more versatile tool, with different operating modes and a wider range of specialised blades.

The choice will mainly depend on the type of materials to be worked with, frequency of use and the level of versatility required.

Advantages of ultrasonic cutting over conventional cutting

One of the main advantages of using ultrasonic technology is the reduction in resistance during cutting.

With a conventional tool, the user must apply a certain amount of pressure for the blade to penetrate the material. Depending on the geometry of the part, this pressure can make it more difficult to control the tool and increase the risk of damaging areas close to the working area.

Ultrasonic vibrations help reduce this resistance and facilitate the movement of the blade.

This can result in:

• Greater ease of cutting.

• Less effort during certain operations.

• Greater control during precision work.

• The ability to work with different materials.

• Greater versatility in post-processing operations.

However, it is important to remember that an ultrasonic cutter is still a cutting tool. Ultrasonic technology does not eliminate the risks associated with using a blade, and the tool must be used according to the manufacturer's instructions and the applicable safety measures.

Applications beyond 3D printing

Although ultrasonic cutters are particularly well suited to certain additive manufacturing processes, their applications are not limited to 3D-printed parts.

The ability to work with materials such as plastic, wood, acrylic, foam, leather or rubber also makes them suitable for:

Model making

Cutting small parts, modifying components and preparing elements for assembly are common tasks in model making and miniature manufacturing.

Prototyping

During prototype development, it is common to modify parts several times until the final geometry is achieved. A precision cutting tool can speed up these modifications.

DIY and craft manufacturing

DIY projects often combine different materials. Having a tool capable of working with several of them helps reduce the number of tools required in the workspace.

Electronics and component manufacturing

CtrlAX can also be used on certain materials employed in electronics-related work and component manufacturing, always selecting the appropriate blade and settings for each application.

Post-processing as part of the additive manufacturing process

The final quality of a 3D-printed part does not depend solely on the printer and the material used.

Print settings, part orientation, support strategy and, subsequently, post-processing operations have a direct influence on the final result.

Therefore, having the right tools for finishing can be just as important as having a good 3D printer.

In resin 3D printing, for example, the workflow may include washing, support removal, curing and different finishing operations. In FDM, tasks such as support removal, burr removal, sanding, cutting or modifying certain areas may be necessary.

In this context, the CUTRA WonderCutter S and CtrlAX ultrasonic cutters can be integrated as complementary tools within the workstation.

Cutting tools for a more versatile 3D printing workshop

One of the most interesting trends in additive manufacturing is the integration of different manufacturing and finishing processes within the same workspace.

The 3D printer thus becomes part of a broader workflow that may include CAD design, manufacturing, support removal, cutting, sanding, assembly, bonding and surface finishing.

Ultrasonic cutters can occupy an interesting place within this workflow, especially when quick modifications or precision cuts need to be made to materials that are also commonly used in additive manufacturing.

Both WonderCutter S and CtrlAX are currently part of Filament2Print's range of tools designed to complement 3D printing work.

Why use an ultrasonic cutter in 3D printing?

For a user who regularly works with 3D printing, the main advantage of incorporating an ultrasonic cutter into the workshop is having a specialised tool for operations in which a conventional blade may be less convenient.

WonderCutter S offers a compact solution for cutting and post-processing tasks, while CtrlAX expands the possibilities thanks to its different blades and settings.

In both cases, ultrasonic technology makes it possible to carry out certain cutting operations with less resistance and greater control over the tool.

This makes CUTRA ultrasonic cutters an interesting option not only for professionals, but also for makers, model makers, designers, 3D printer users and DIY enthusiasts who need to make precise modifications and finishes.

Conclusion

Post-processing is an essential part of many 3D printing projects, and having the right tools can make a significant difference to the final result.

The CUTRA WonderCutter S and CtrlAX ultrasonic cutters allow cutting work to be carried out on a wide variety of materials, including different plastics and resins used in additive manufacturing.

While WonderCutter S represents a compact alternative for cutting and finishing tasks, CtrlAX provides greater versatility thanks to its different blades and configuration options.

For users involved in 3D printing, model making and prototyping who are looking for a precision cutting tool to complement their workflow, CUTRA ultrasonic cutters are a particularly interesting solution.

Discover CUTRA ultrasonic cutters

You can check the features, accessories and available options for CUTRA ultrasonic cutters in the Filament2Print catalogue.
