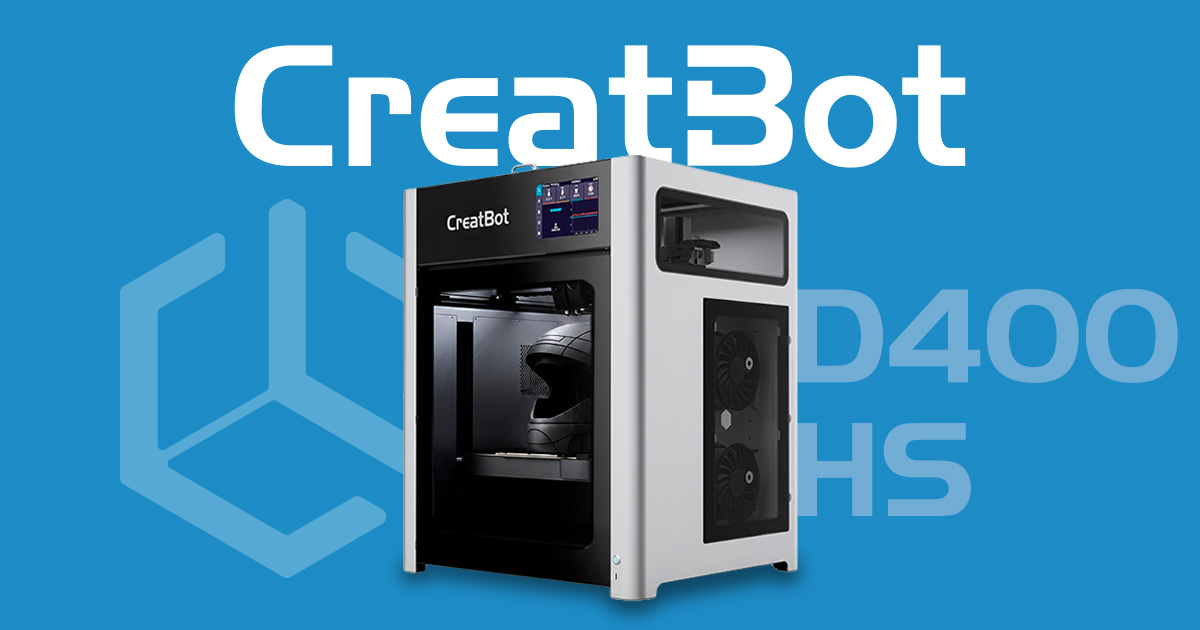

CreatBot D400 HS: Can a Desktop 3D Printer Perform Like an Industrial Machine?

When we talk about industrial 3D printing, we usually think of large machines, complex installations, and high-cost equipment. However, the evolution of additive manufacturing is starting to change this perception.

Today, there are relatively compact-format 3D printers capable of working with technical materials, large build volumes, high temperatures, and high production speeds.

A good example is the CreatBot D400 HS, a professional desktop 3D printer that combines a substantial build volume with features usually associated with industrial-grade equipment.

But there is a question worth asking: Can a desktop 3D printer really behave like an industrial machine?

The answer depends on what we understand by "industrial." If we are talking exclusively about size, automation, or large-scale series production, not necessarily. But if we are talking about the ability to manufacture functional prototypes, tooling, technical parts, and large components using engineering materials, the D400 HS is particularly interesting.

CreatBot D400 HS: Main Features

The CreatBot D400 HS is designed for users who need more than a conventional desktop 3D printer.

Its proposition is based on combining several elements:

• A build volume of up to 420 × 400 × 420 mm.

• Maximum hotend temperature of up to 420 °C.

• Heated build chamber up to 70 °C.

• Extrusion flow rate of up to 90 mm³/s.

• Print speeds of up to 600 mm/s.

• Dual extrusion system.

• Compatibility with a wide variety of technical materials.

• Calibration and automation functions geared toward facilitating professional use.

Beyond each individual specification, the interesting part is how all of them work together.

Because printing fast is not of much use if the machine cannot maintain thermal stability. And having a heated chamber loses part of its purpose if the extrusion system cannot work with high-temperature materials.

That is why, to evaluate a professional 3D printer, you have to look at the entire system, not just a single concrete figure.

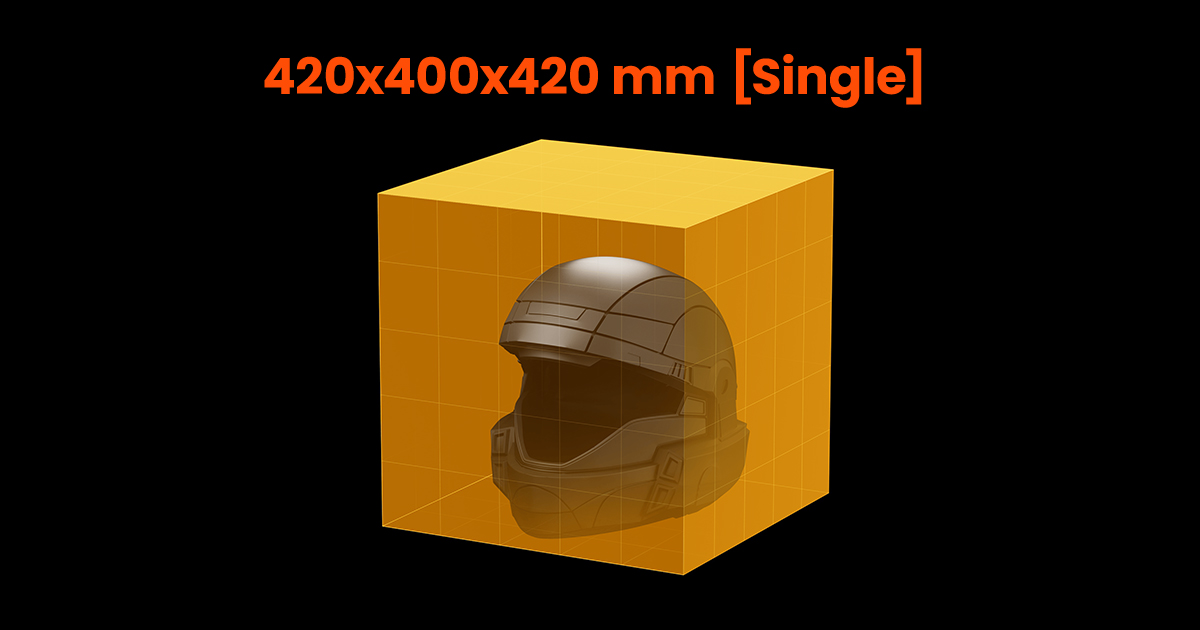

Large Build Volume: Manufacturing Larger Parts in a Single Print

One of the first limits a company encounters when adopting 3D printing is the size of the parts it can manufacture.

With a volume of 420 × 400 × 420 mm, the D400 HS allows for tackling considerably larger parts than usual in many desktop 3D printers. This is especially interesting in applications such as:

Functional Prototypes

A prototype does not always make sense if it has to be divided into several pieces.

When it is possible to manufacture the complete component in a single print, post-assembly operations are reduced, and the final design can be better evaluated.

Tooling and Fixtures

Additive manufacturing is increasingly used to produce:

• Jigs.

• Assembly fixtures.

• Guides.

• Supports.

• Molds.

• Auxiliary elements for production.

In these cases, having a large build volume can make the difference between manufacturing a complete tool or having to design it in multiple parts.

Low-Volume End-Use Parts

3D printing does not have to be limited to prototyping. When geometry is complex, quantities are low, or customization is required, additive manufacturing can be an attractive alternative to traditional processes.

420 °C Hotend for Engineering Materials

One of the aspects that most sets a conventional 3D printer apart from a machine geared toward technical materials is its thermal capacity.

The D400 HS reaches up to 420 °C at the hotend, which significantly broadens the range of materials that can be processed compared to a basic 3D printer.

This opens the door to materials such as certain types of ABS, ASA, PC, Nylon, TPU, fiber-reinforced materials, and other high-temperature technical filaments.

Of course, the fact that a printer reaches a certain temperature does not automatically mean that any material can be printed successfully.

The final quality also depends on factors such as:

• Chamber temperature.

• Bed temperature.

• Thermal stability.

• Hotend design.

• Nozzle used.

• Speed.

• Material flow rate.

• Part geometry.

And here we find another interesting feature of the D400 HS.

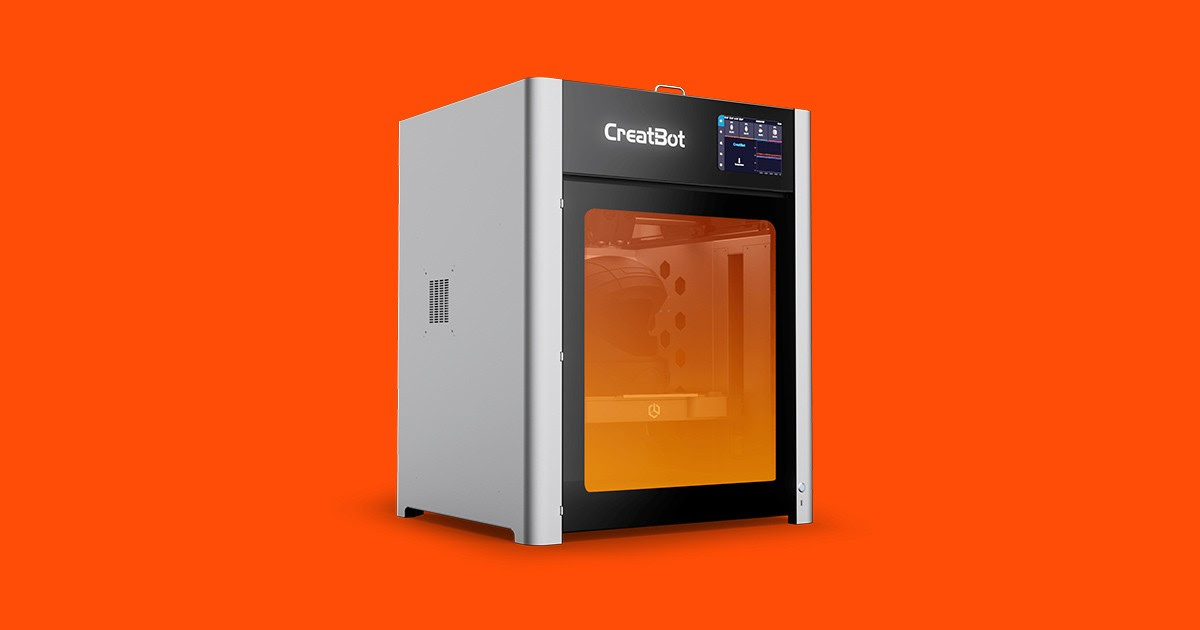

Heated Chamber Up to 70 °C: An Advantage for Technical Parts

When working with certain technical polymers, the challenge does not end at getting the hotend to a high temperature. One of the main problems is controlling how the part cools down during manufacturing.

An excessive temperature difference between different areas of the part can lead to phenomena such as warping, deformations, shrinkage, or interlayer adhesion issues.

The D400 HS features a heated chamber capable of reaching up to 70 °C, creating a more controlled printing environment.

This is particularly relevant when printing large parts with materials that exhibit higher thermal shrinkage.

In other words: it is not just about printing at high temperature, but about controlling the temperature of the entire process.

High-Speed 3D Printing: What Does 600 mm/s Really Mean?

The 600 mm/s speed is probably one of the most eye-catching figures when discussing the D400 HS, but it should be put into context.

In 3D printing, the maximum speed advertised for a machine does not necessarily equal the real speed at which a complete part will be manufactured. Why? Because there are other factors that limit speed:

• Maximum extrusion flow rate.

• Acceleration.

• Part geometry.

• Layer height.

• Temperature.

• Material used.

• Cooling.

• Required precision.

Because of this, a particularly interesting feature of the D400 HS is that it combines the ability to reach high speeds with an extrusion flow rate of up to 90 mm³/s.

The result is a machine designed not only to move quickly, but to be able to maintain a high rate of material deposition. And this distinction is important.

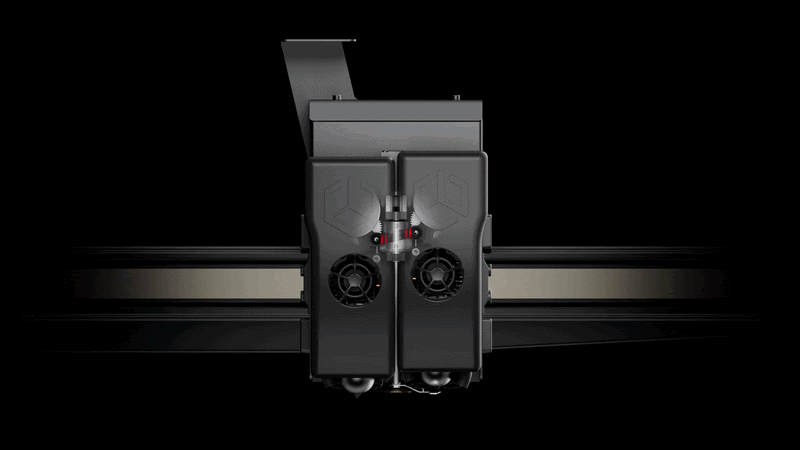

Dual Extrusion: More Possibilities for Manufacturing Complex Geometries

Another resource bringing the D400 HS closer to the professional realm is its dual extrusion system.

Having two extruders allows for implementing different manufacturing strategies. For example:

Build material + support material

One of the most obvious applications is using one material to build the part and another to generate supports.

This can facilitate the manufacturing of complex geometries and reduce post-processing work for support removal.

Two different materials

It is also possible to design parts that combine different materials or properties.

Two colors

Although it might seem like an application more geared toward visual aesthetics, the ability to use two colors can also be useful for identification, signage, or component differentiation.

The D400 HS also incorporates a system designed to reduce oozing or cross-contamination between nozzles, an especially important aspect when working with dual extrusion.

From Prototype to Tooling Manufacturing

One of the most interesting applications for a 3D printer like the D400 HS is precisely the one bridging the gap between prototyping and traditional manufacturing.

Imagine a company that needs to manufacture a specific jig for an assembly line.

The conventional process might involve:

1. Designing the tool.

2. Requesting a quote.

3. Waiting for manufacturing.

4. Receiving it.

5. Identifying potential improvements.

6. Modifying the design.

7. Manufacturing again.

With 3D printing, the workflow can be simplified:

1. Design.

2. Print.

3. Test.

4. Identify improvements.

5. Modify.

6. Print again.

This capacity for rapid iteration is one of the greatest values of additive manufacturing. It is not simply about producing more cheaply. In many cases, it is about manufacturing sooner, testing sooner, and improving sooner.

What Materials Can Be Printed with the CreatBot D400 HS?

The possibility of working with technical materials is one of the fundamental aspects when choosing a professional 3D printer.

The combination of a hotend temperature of up to 420 °C and a heated chamber allows for handling jobs with filaments that demand more stringent printing conditions than PLA or PETG.

Among the materials that can be particularly interesting for this type of machine, we find families such as:

ABS and ASA

These are materials commonly used for applications requiring specific mechanical performance and thermal resistance. Temperature control is especially important in large parts.

Nylon

Nylon can be interesting for certain functional parts due to its mechanical properties and wear resistance.

At the same time, it is a material that can be more demanding than PLA or PETG, making storage and printing conditions important.

Polycarbonate

PC can be used in applications where specific mechanical and thermal properties are sought.

Printing it requires adequate control of thermal conditions, especially for large-scale parts.

Reinforced Filaments

Carbon fiber or glass fiber-reinforced filaments are particularly interesting for technical applications.

They can provide improvements in certain mechanical properties and stiffness, although they also require paying attention to the wear resistance of extrusion components and printing parameters.

The Importance of Extrusion Flow Rate

When we talk about high-speed 3D printing, there is a concept that often goes unnoticed: volumetric flow rate.

Suppose we considerably increase the printer's travel speed.

The machine will have to melt and deposit a larger amount of plastic in less time.

If the hotend cannot melt enough material, a problem arises: the printer moves faster, but it does not deposit enough plastic.

This can lead to under-extrusion and loss of quality.

That is why the 90 mm³/s maximum flow rate figure is particularly relevant when analyzing the high-speed printing potential of the D400 HS. Speed makes sense when backed by adequate extrusion capacity.

Advantages of Using a Professional 3D Printer In-House

In-house manufacturing can offer advantages that go beyond part-by-part cost.

Reduced Development Time

Iterations can be carried out quickly without necessarily waiting for an external supplier.

Greater Flexibility

Modifying a digital part is much easier than modifying a mold or a conventional tooling setup.

On-Demand Production

A part can be manufactured when needed, reducing the need to maintain physical inventory of certain components.

Customization

Each part can be digitally modified without needing to create a new production line.

Manufacturing Complex Geometries

Additive manufacturing enables the creation of geometries that could be difficult or costly using conventional methods.

Less Reliance on External Suppliers

For certain prototypes, tooling, and low-volume parts, having in-house manufacturing capabilities can shorten lead times.

Which Companies Is the CreatBot D400 HS Intended For?

The D400 HS can be particularly interesting for companies and professionals who need to combine volume, technical materials, and productivity.

Among its potential users, we find:

R&D Departments

To accelerate the development and validation of new products.

Engineering

To manufacture functional prototypes, tools, and custom components.

Machinery Manufacturers

To quickly create supports, guides, housings, guards, and tooling.

Automotive Companies

For prototypes, tools, and specific auxiliary parts.

Industrial Design

To rapidly validate designs before moving on to final manufacturing processes.

Educational Institutions and Universities

To work with additive manufacturing technologies closer to those used in professional environments.

So, Can a Desktop 3D Printer Behave Like an Industrial Machine?

The short answer would be: In certain applications, yes.

However, the key does not lie in the D400 HS having a spectacular speed figure or a high maximum temperature. Its interest lies in the combination of different capabilities: large build volume + high temperatures + heated chamber + high flow rate + dual extrusion + automation.

This combination makes it possible to use 3D printing not only to create visual models, but to develop functional prototypes, tooling, fixtures, and technical parts.

And perhaps that is the true evolution of professional 3D printing. It is no longer just about having a printer capable of shaping plastic. It is about having a digital manufacturing tool within the company itself.
