DiamondBack E3D complete hotend for Bambu Lab 3D printers
DiamondBack E3D 1.75 mm 0.4 mm X1/P1
DiamondBack E3D complete hotend for Bambu Lab 3D printers
Diameter: 1.75 mm
Version: P1
Diameter Nozzle: 0.40 mm
Cantidad:
162.80 € 162.80 €
Confirmar
DiamondBack E3D 1.75 mm 0.4 mm X1/P1
search
Compare
You must be logged in to manage your wishlist.

DiamondBack E3D complete hotend for Bambu Lab 3D printers

E3D-HT-DIAM-BAMBU-175-P1-040
162.80 € 162.80 €
Tax excl.
Diameter: 1.75 mm
Version: P1
Diameter Nozzle: 0.40 mm
Quantity

In stock 2 units available for immediate shipping.
units available for shipping in 4 - 8 days Available for shipment within 4 - 8 days

Product temporarily out of stock with these characteristics. Select another combination.

Product temporarily out of stock with these characteristics. Select another combination.

We notify you when it will be available:

Approximate delivery date: Thursday 21 May

The DiamondBack hotend for Bambu Lab printers, developed in collaboration by E3D, DiamondBack and Bambu Lab, is a premium-quality hotend for 1.75 mm filament that serves as a direct replacement for models such as the X1E, X1 Carbon, P1S, P1P, A1, A1 Mini, as well as the new generations H2D, H2C, H2S, P2S and X2D, thanks to its identical mounting dimensions to Bambu Lab hotends.

DiamondBack hotend for Bambu Lab 3D printers

Image 1: DiamondBack hotend for Bambu Lab 3D printers. Source: E3D.

Officially approved and licensed by Bambu Lab, this hotend assembly comes in nozzle diameters of 0.4 mm, 0.6 mm and 0.8 mm, providing versatility for different print resolutions and speeds.

Video 1: Analysis of E3D PCD hotends. Source: aim6mac and E3D

Ultimate abrasion resistance

Designed for high-temperature performance, the DiamondBack hotend operates at a maximum of 320 ºC on the X1E and 300 ºC on all other compatible models including H2D, H2C, H2S, P2S and X2D. It is optimized for abrasive materials such as carbon fiber, glass, metal and ceramics.

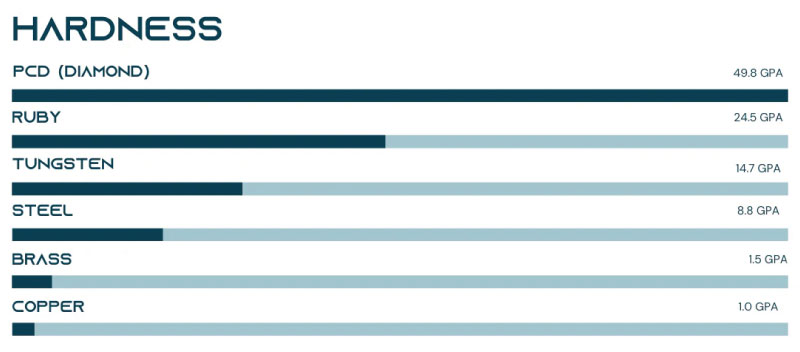

Hardness comparison of PCD hotends vs other nozzle materials

Image 2: Hardness comparison of PCD hotends vs other nozzle materials. Source: E3D.

The nozzle incorporates a genuine polycrystalline diamond (PCD) insert, offering superior wear resistance even in the new H2 and X2 models.

Polycrystalline diamond tip

The PCD structure enhances durability and print precision even in high-speed printers such as H2D and X2D.

Diamond tip nozzle of DiamondBack hotend

Image 3: Diamond tip nozzle of the DiamondBack hotend. Source: E3D.

It allows printing engineering materials with abrasive fillers without nozzle degradation even in continuous production.

Benefits across industries

The DiamondBack hotend offers high thermal conductivity and low friction, improving performance in technical parts printed on the H2 and X2 series.

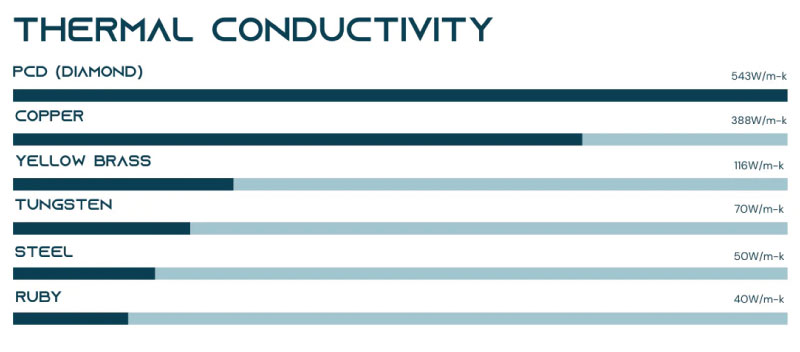

Thermal conductivity comparison of PCD hotends vs other nozzle materials

Image 4: Thermal conductivity comparison of PCD hotends vs other nozzle materials. Source: E3D.

It is ideal for aerospace, automotive, energy and medical applications.

Compatibility with new Bambu Lab generations

The H2D, H2C, H2S, P2S and X2D models are fully compatible with this hotend, enabling a direct upgrade without system modifications.

On these new printers, the DiamondBack improves stability at high speed, reduces wear in continuous production, and maintains superior surface quality even in complex geometries.

Video 2: PCD manufacturing process. Source: JerryRigEverything

General information
Manufacturer E3D
Filament diameter 1.75
Nozzle diameter 0.4 mm / 0.60 mm / 0.8 mm
Weight 30.5 g

Printing properties
Maximum temperature 320 ºC

Other
HS Code 8477.9

Installing the DiamondBack hotend on Bambu Lab printers is a simple process that can be completed in under five minutes. By following the provided upgrade guides, no modifications to the print profile or printer settings are required.

Video 1: Installing the DiamondBack hotend on X1 series 3D printers. Source: E3D.

The installation does not void the printer’s warranty, as the DiamondBack hotend is officially approved and licensed by Bambu Lab.

Video 2: Installing the DiamondBack hotend on the P1P 3D printer. Source: E3D.

Additionally, the electronics and heatsink used in the hotend assembly are directly sourced from Bambu Lab, ensuring perfect compatibility with the printer models.

How to install the DiamondBack HotEnd for Bambu Lab A1 and A1 Mini

Video 3: HotEnd installation is quick and easy.
